AN54.65-P-0030-04GQ Retrofit Circuit 15 Wiring Harness

AN54.65-P-0030-04GQ Retrofit Circuit 15 Wiring Harness
Model 166.0
- with code (512) COMAND APS incl. DVD changer
- with code (527) COMAND APS (with navigation)
- with code (528) COMAND incl. DVD changer

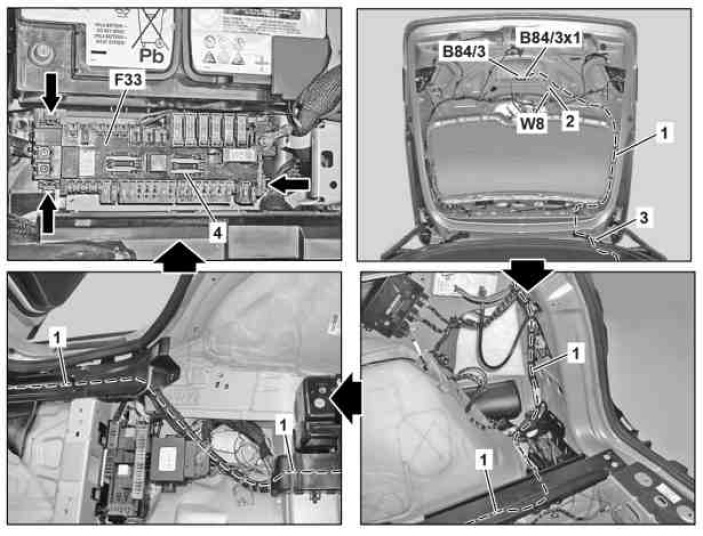

1 Fit electrical connection for reversing camera (B84/3x1) from circuit 15 wiring harness (1) into reversing camera (B84/3).
2 Fasten ground cable (2) from circuit 15 wiring harness (1) to liftgate ground point (W8).
3 Route circuit 15 wiring harness (1) along rear-end door wiring harness to the rubber grommet at the right (3) of the rear-end door.
4 Route circuit 15 wiring harness (1) through the rubber grommet at right (3).
5 Install rubber grommet at right (3).
6 Fasten circuit 15 wiring harness (1) to rear-end door wiring harness using cable ties.
7 Route circuit 15 wiring harness (1) along vehicle wiring harness to the battery compartment prefuse box (F33).
8 Release catch hooks (arrows) and lift battery compartment prefuse box (F33).
9 Plug contact for circuit 15 wiring harness (1) into contact cavity 6 of the fuse carrier MF2 (4) and fit fuse carrier MF2 (4) to battery compartment prefuse box (F33).
10 Form loops with extended length of circuit 15 wiring harness (1) beneath the battery compartment prefuse box (F33) and secure with cable ties.
11 Secure battery compartment prefuse box (F33).
