AR54.65-P-0003GZ Remove/Install Parktronic System (PTS) Warning Display In Instrument Panel



AR54.65-P-0003GZ Removing And Installing Parktronic System (PTS) Warning Display In Instrument Panel
- with CODE (220) Parktronic system (PTS)

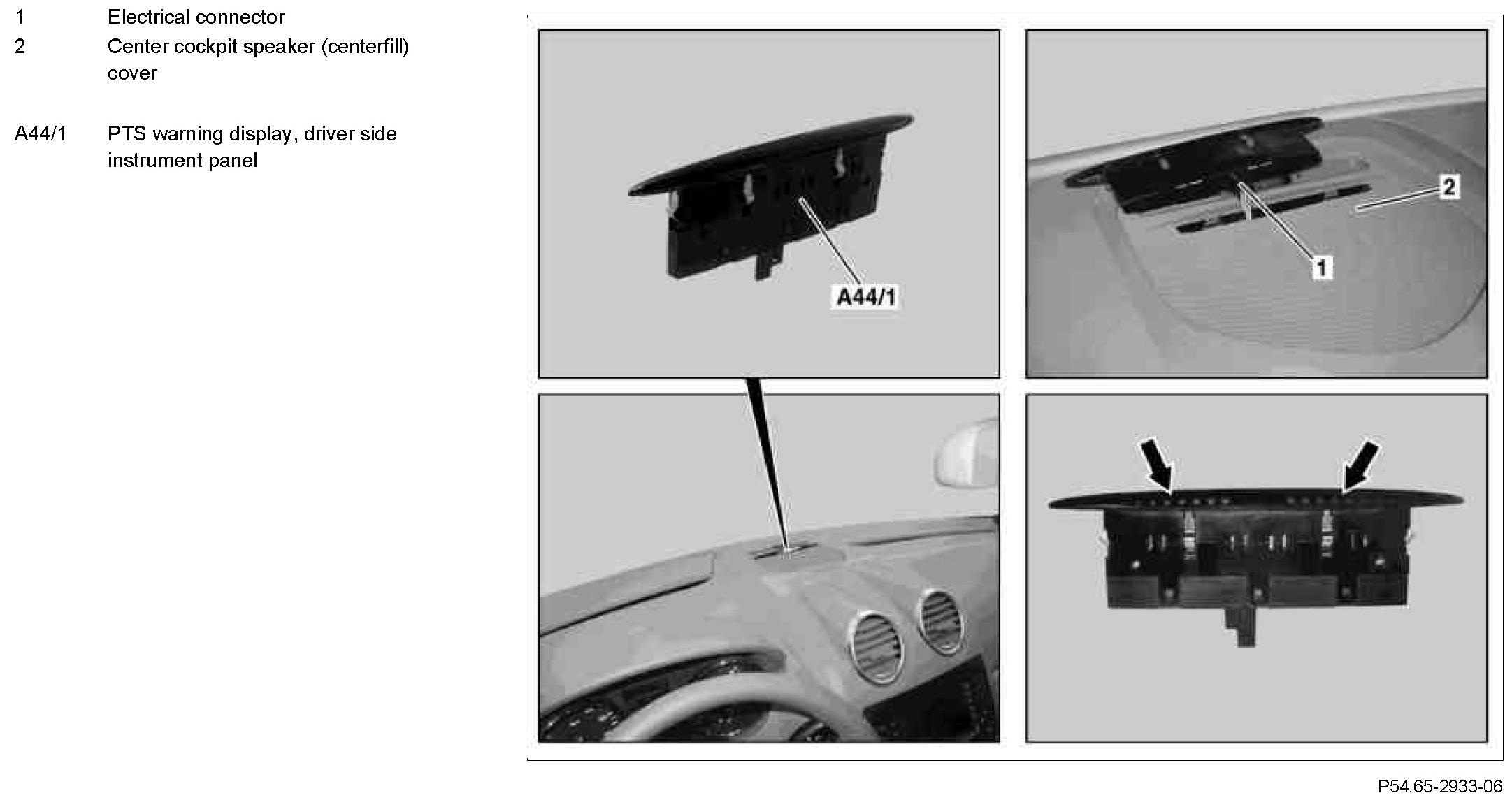

Component Identification:

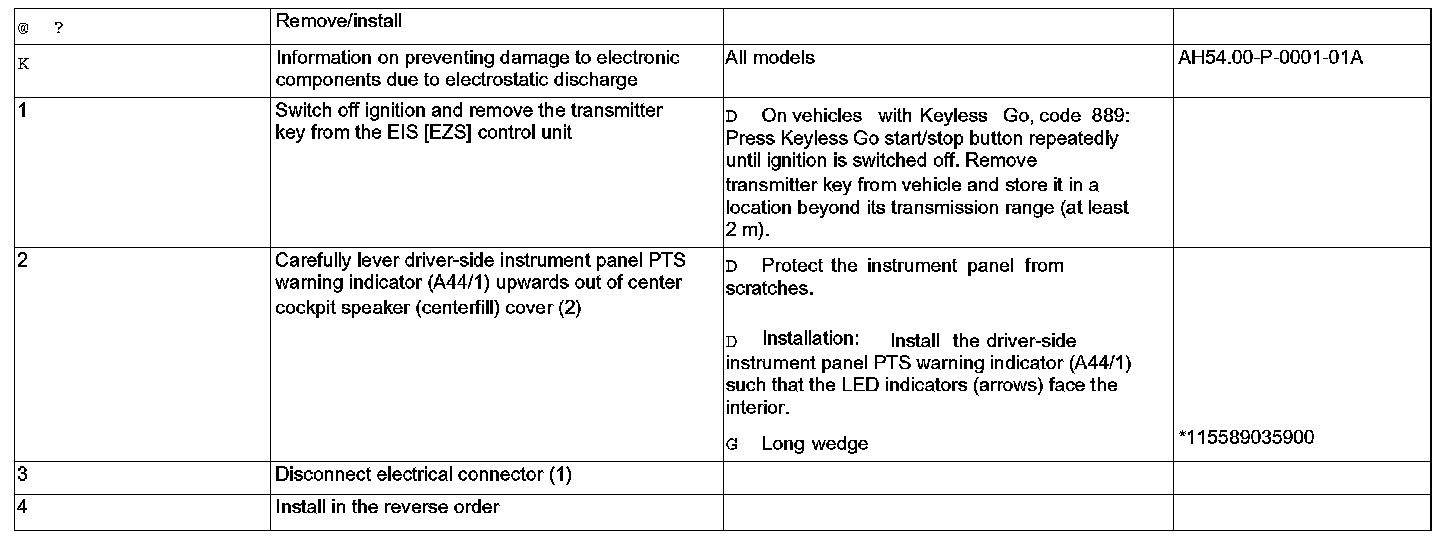

Steps 1 - 4:




Special Tools:
