Forward Looking Camera: Service and Repair

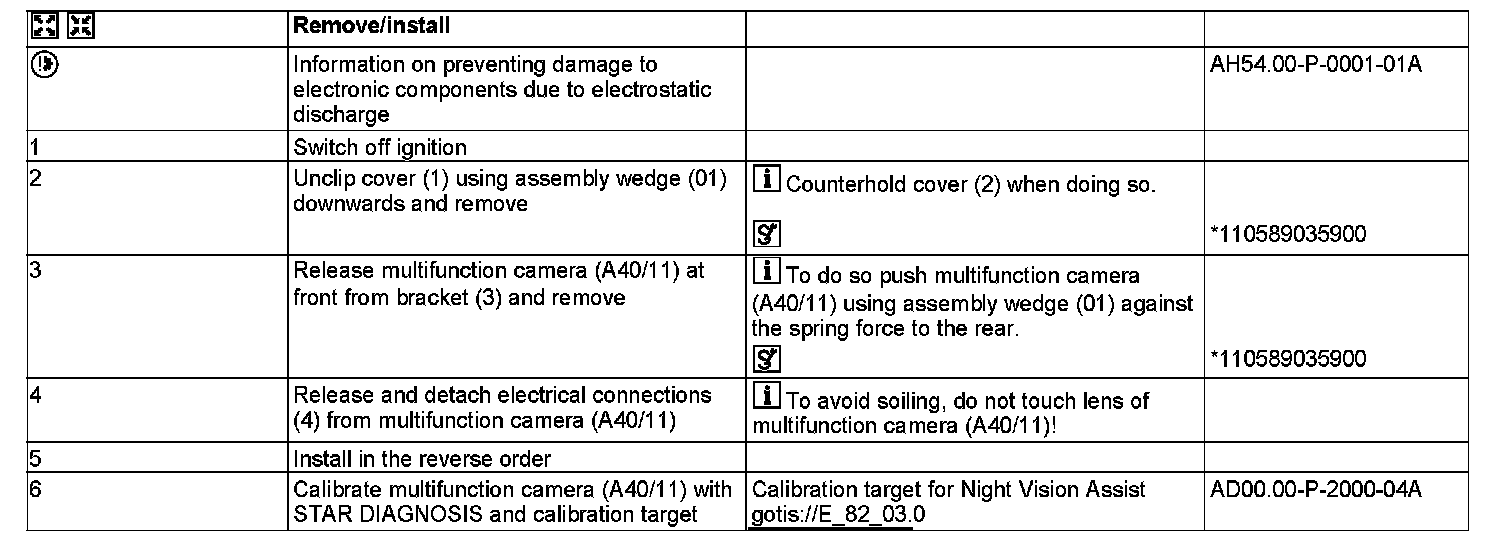

AR54.21-P-3000GQ Remove/Install Multifunction Camera
MODEL 166
- with CODE (238) Active Lane Keeping Assist
- with CODE (476) Automatic lane recognition
- with CODE (513) Speed Limit Assist
- with CODE (608) Adaptive high beams assist

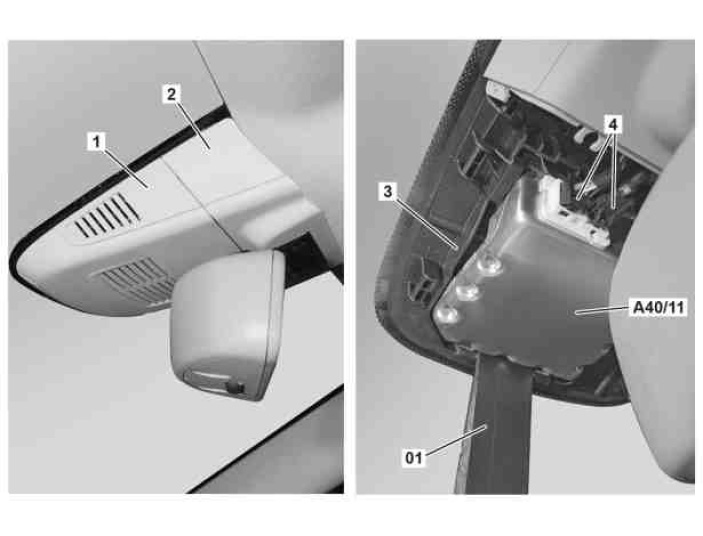

Shows model 166.024
01 Mounting wedge
1 Cover
2 Cover
3 Bracket
4 Electrical connector
A40/11 Multifunction camera








110 589 03 59 00
Mounting wedge
