Cellular Phone: Diagrams

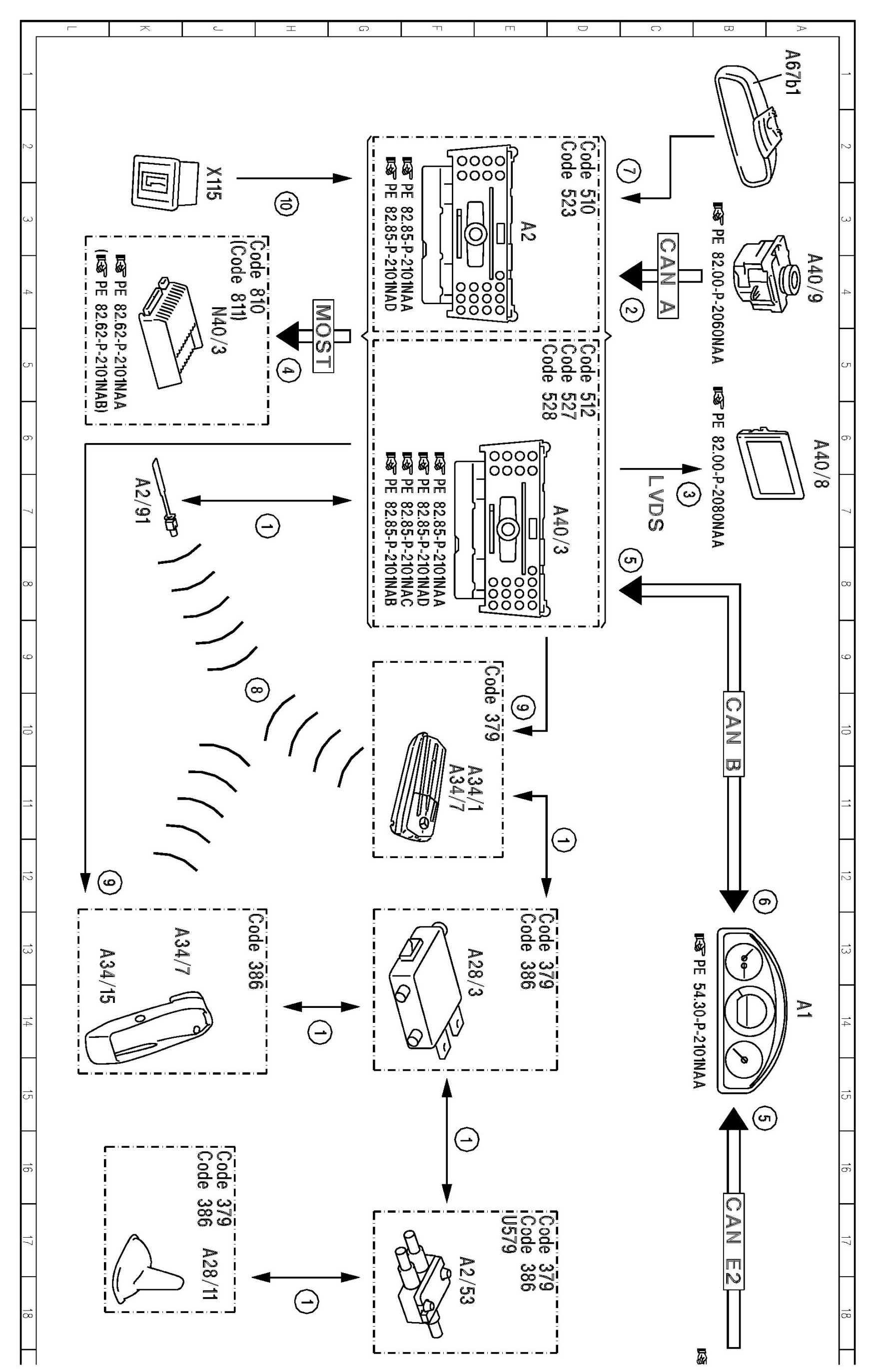

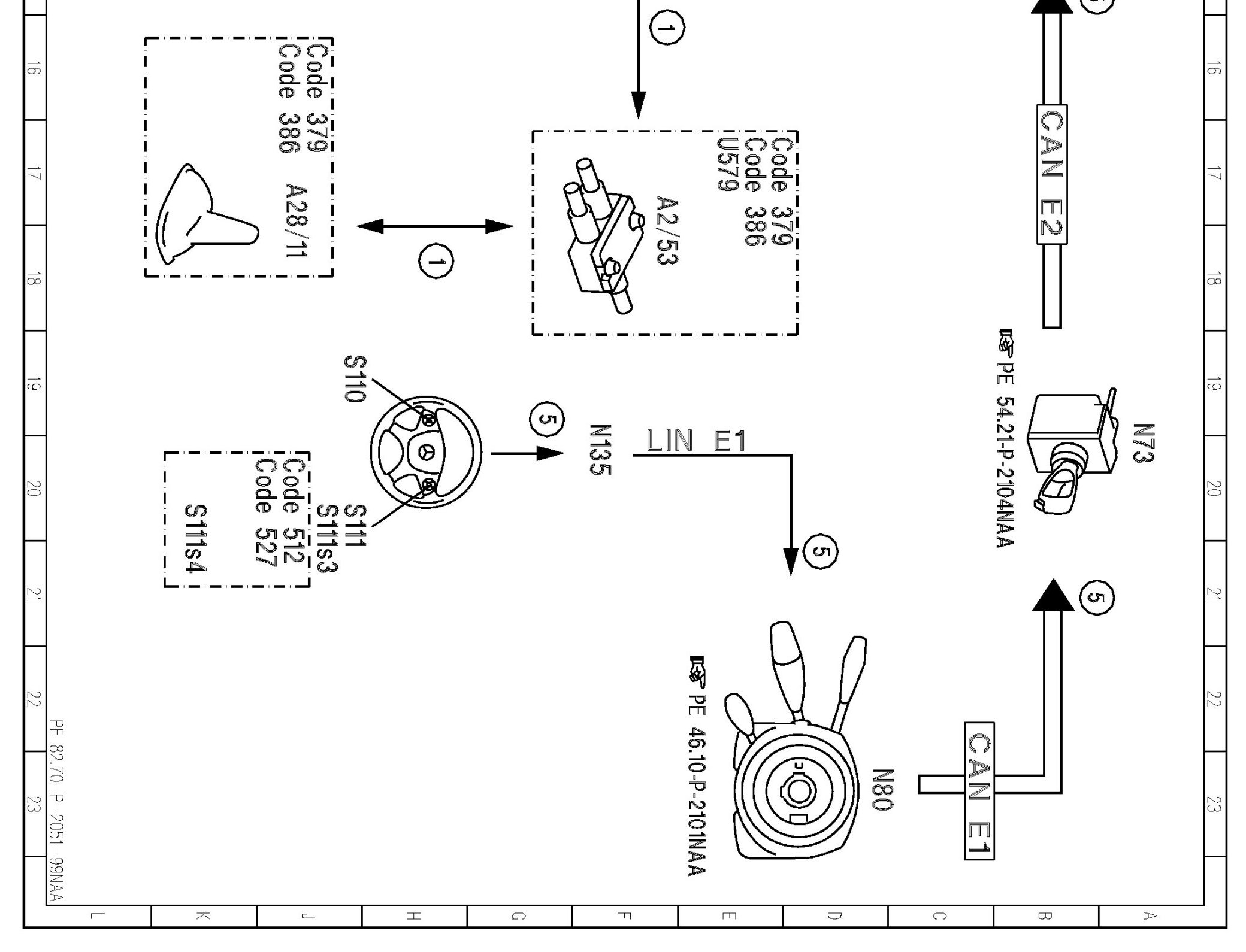

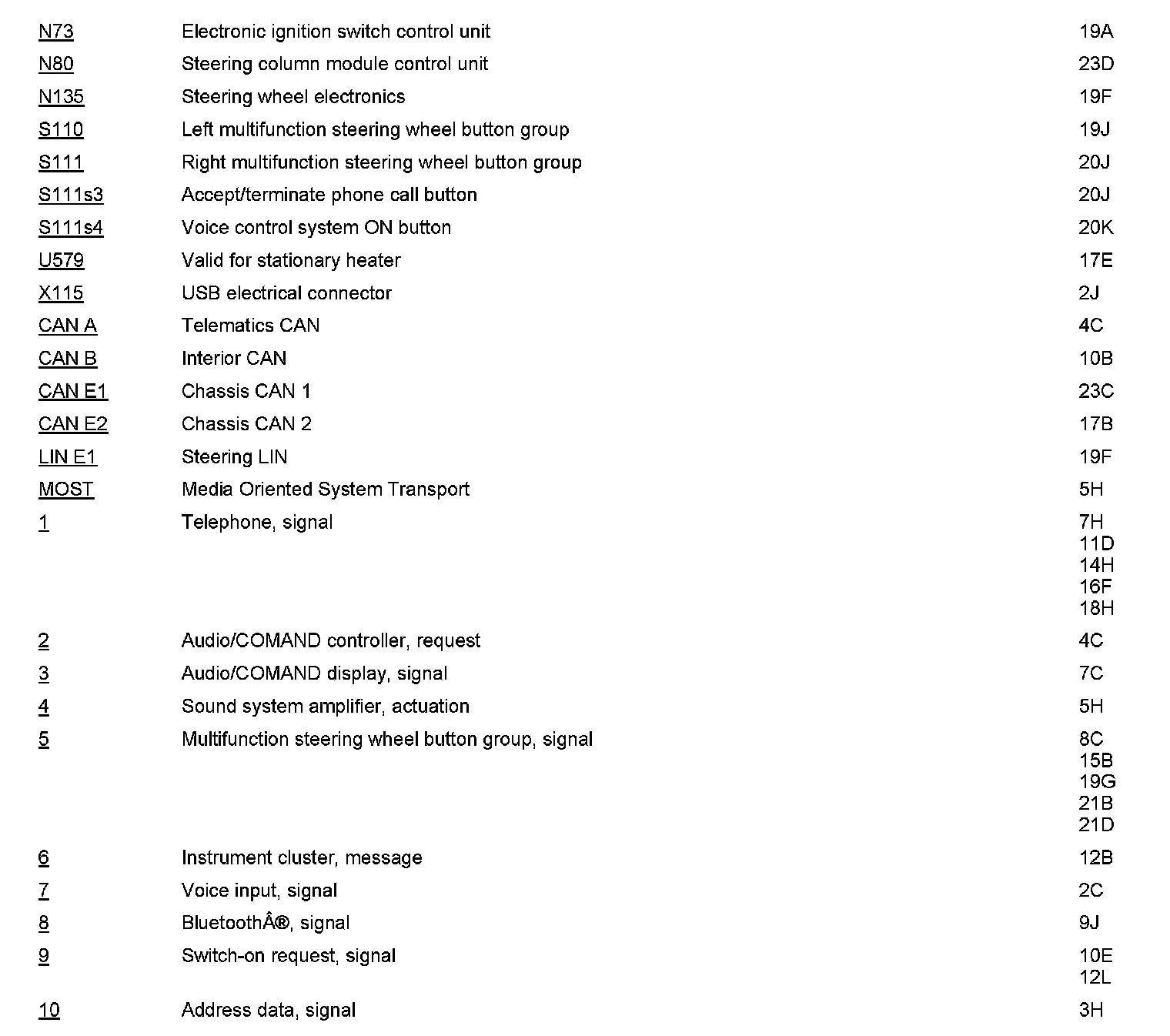

PE82.70-P-2051NAA Electrical Function Schematic For Cellular Phone
MODEL 166

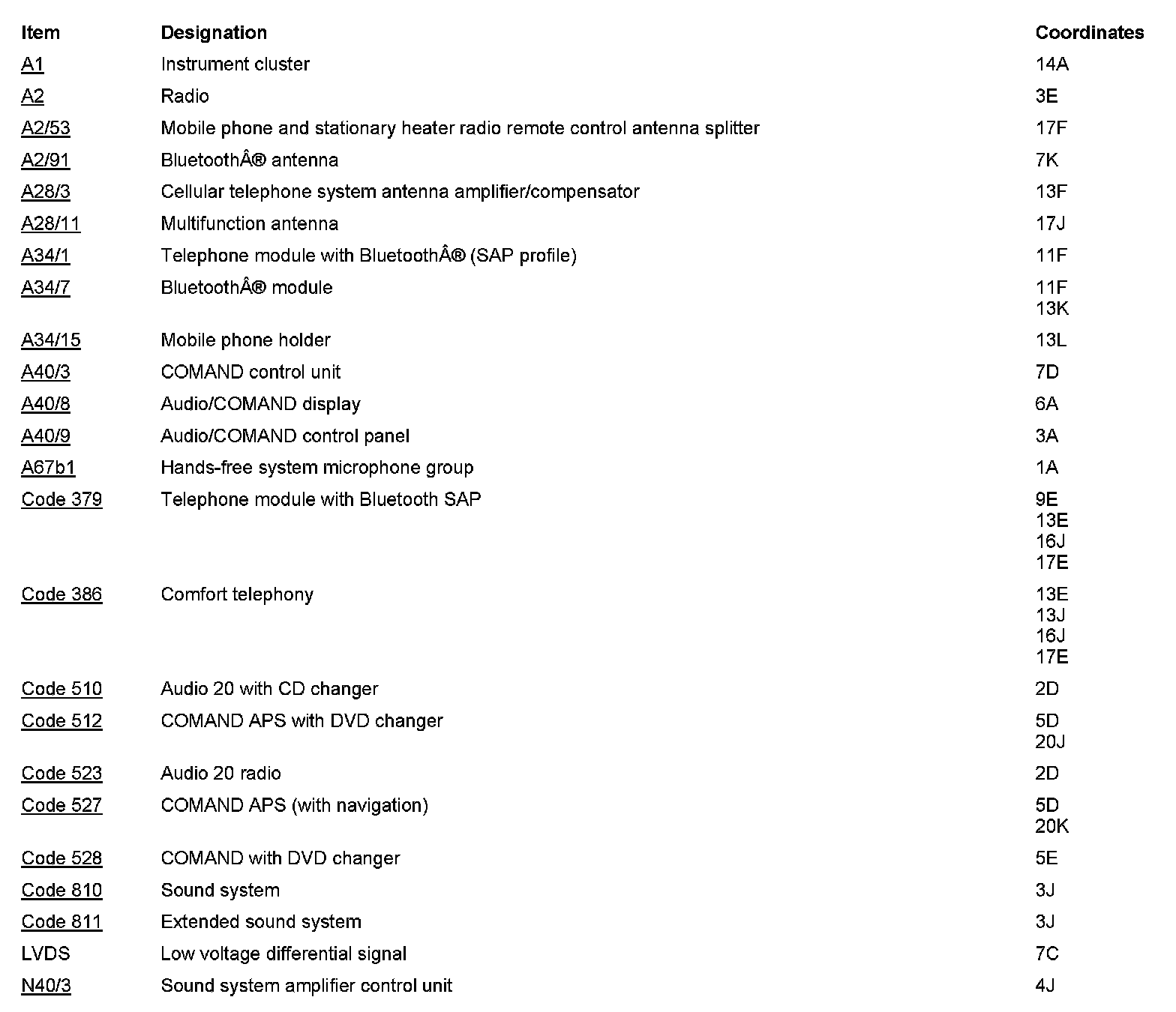

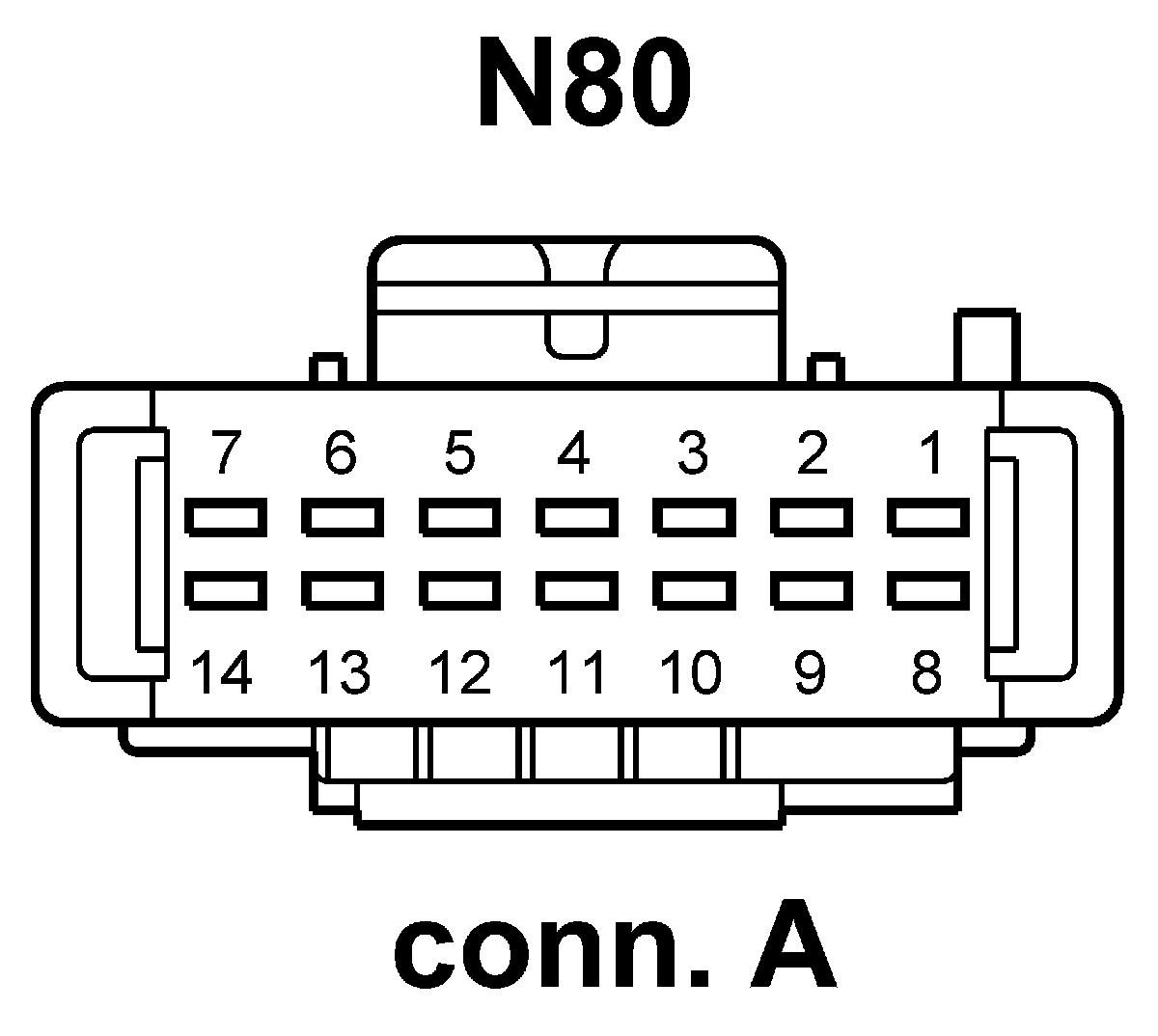

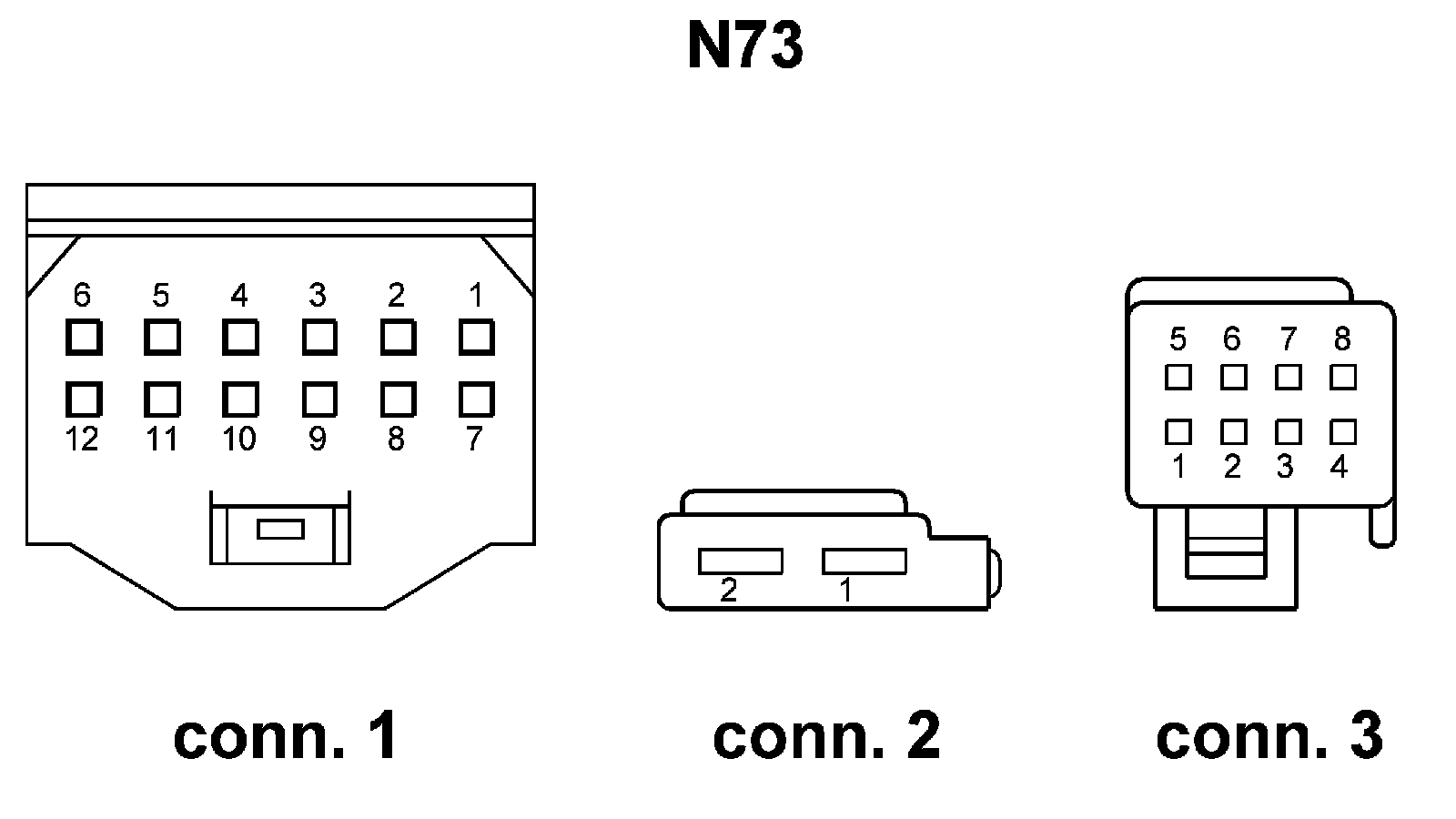

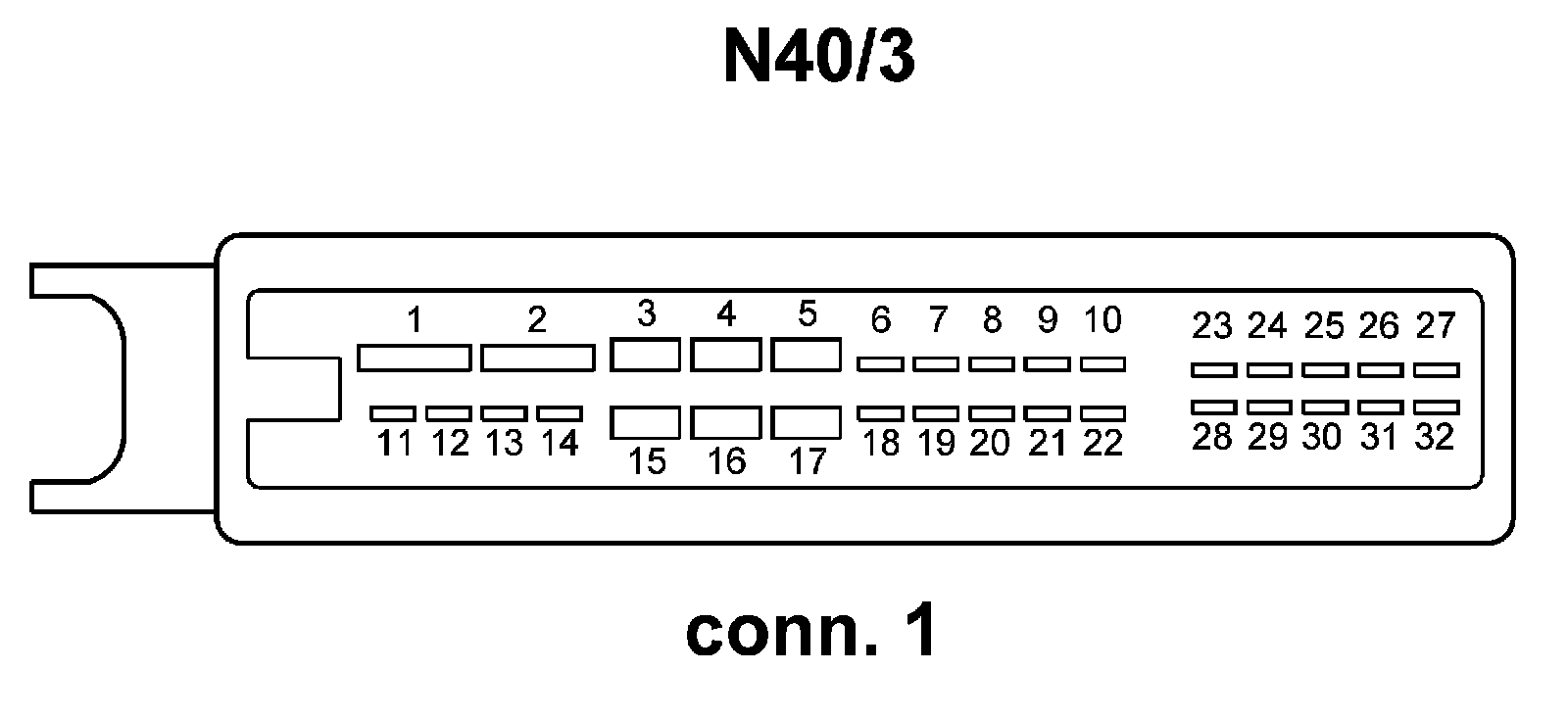

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
