Electrical Diagrams

PE80.50-P-2101NAA Electric Wiring Diagram For Antitheft Alarm System Control Unit (ATA [EDW])
MODEL 166
- with CODE (551) Anti-Theft Alarm System (ATA [EDW])

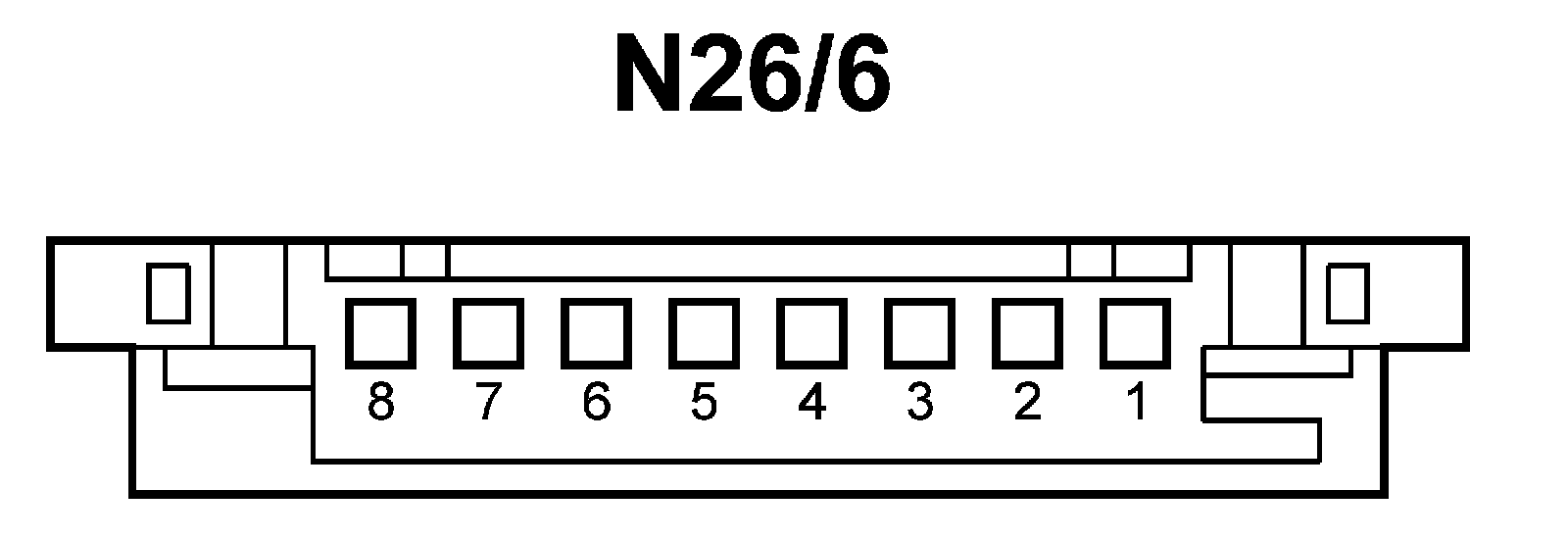

- Control Unit N26/6






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
