Electrical Diagrams

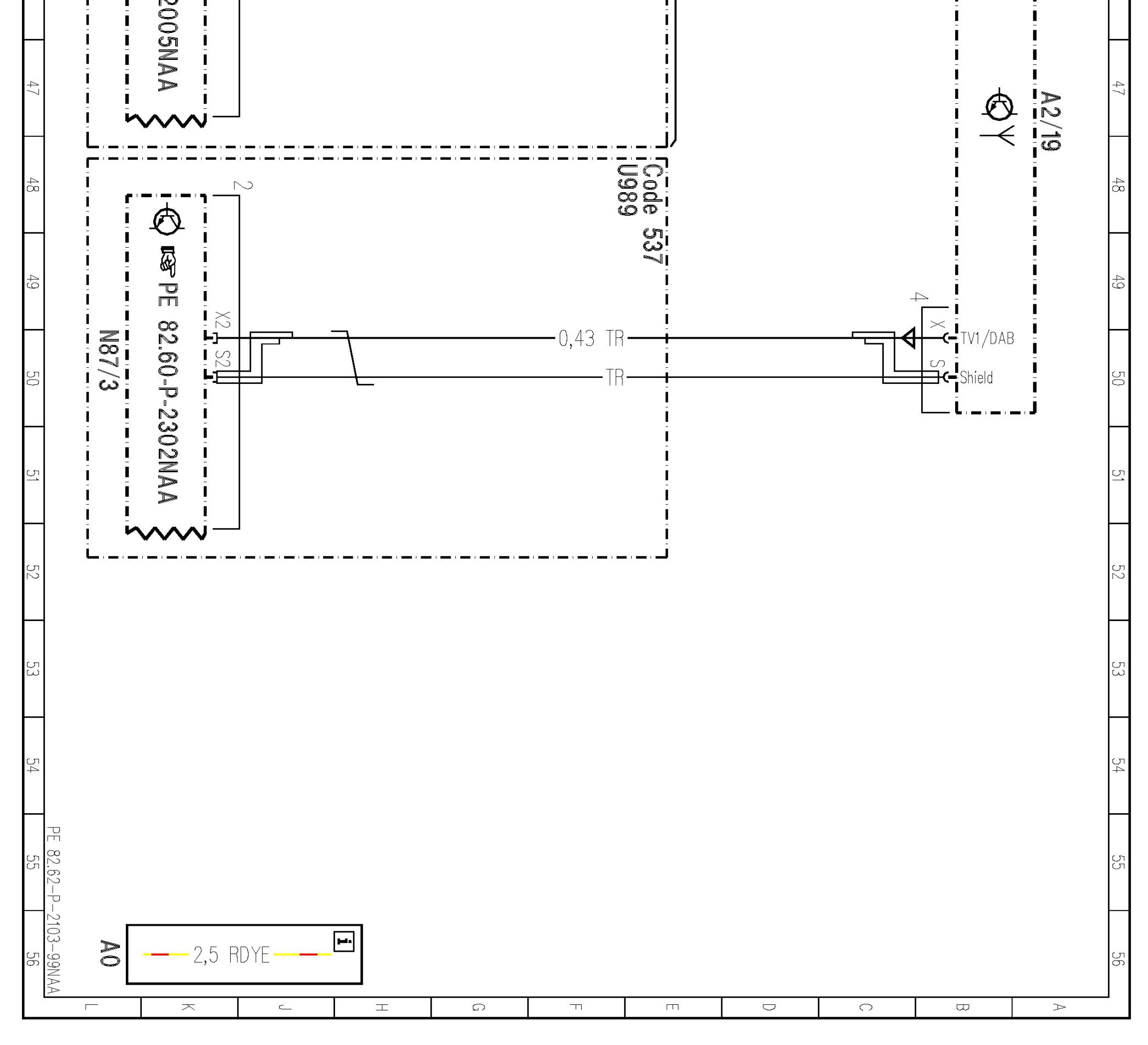

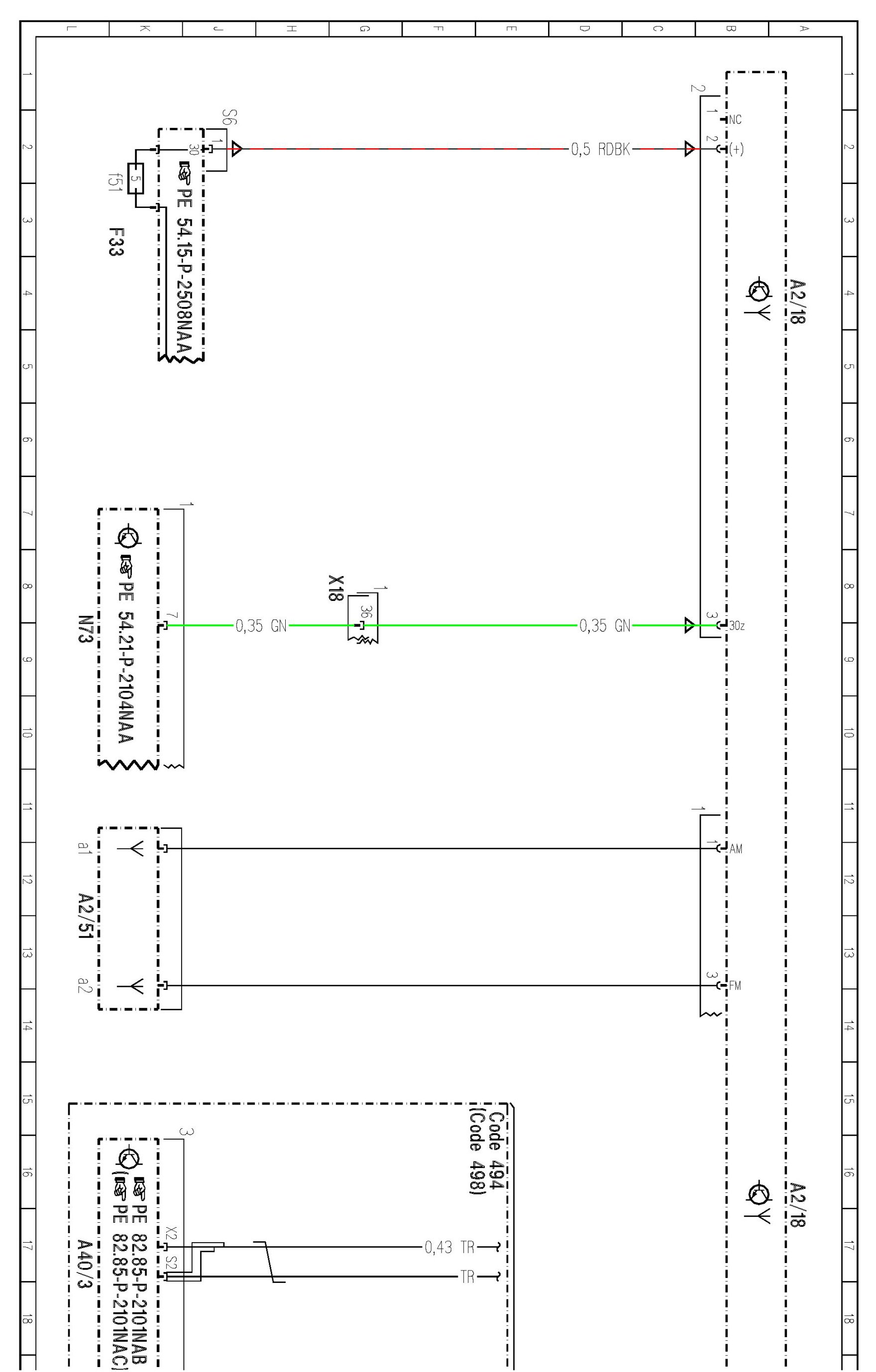

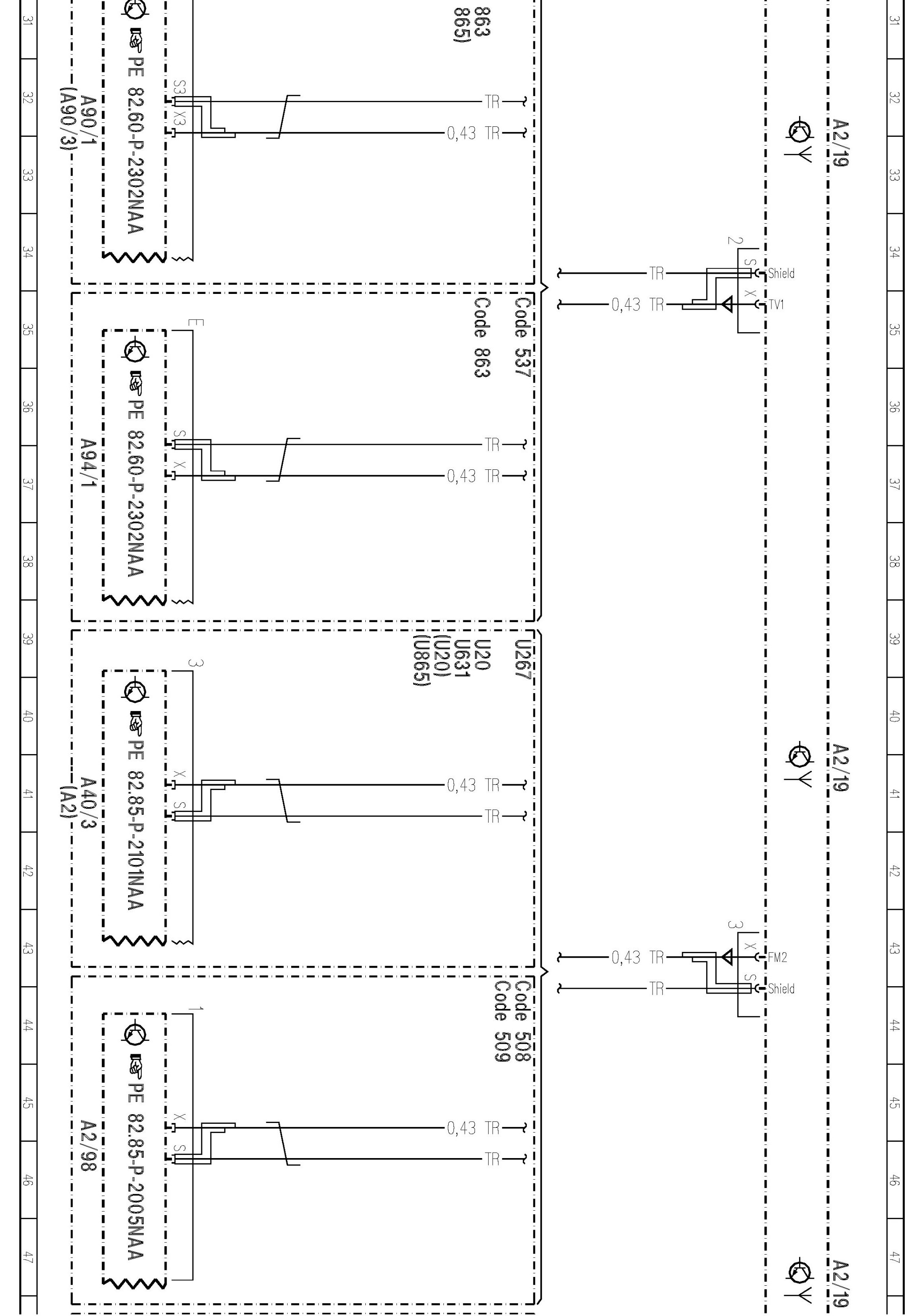

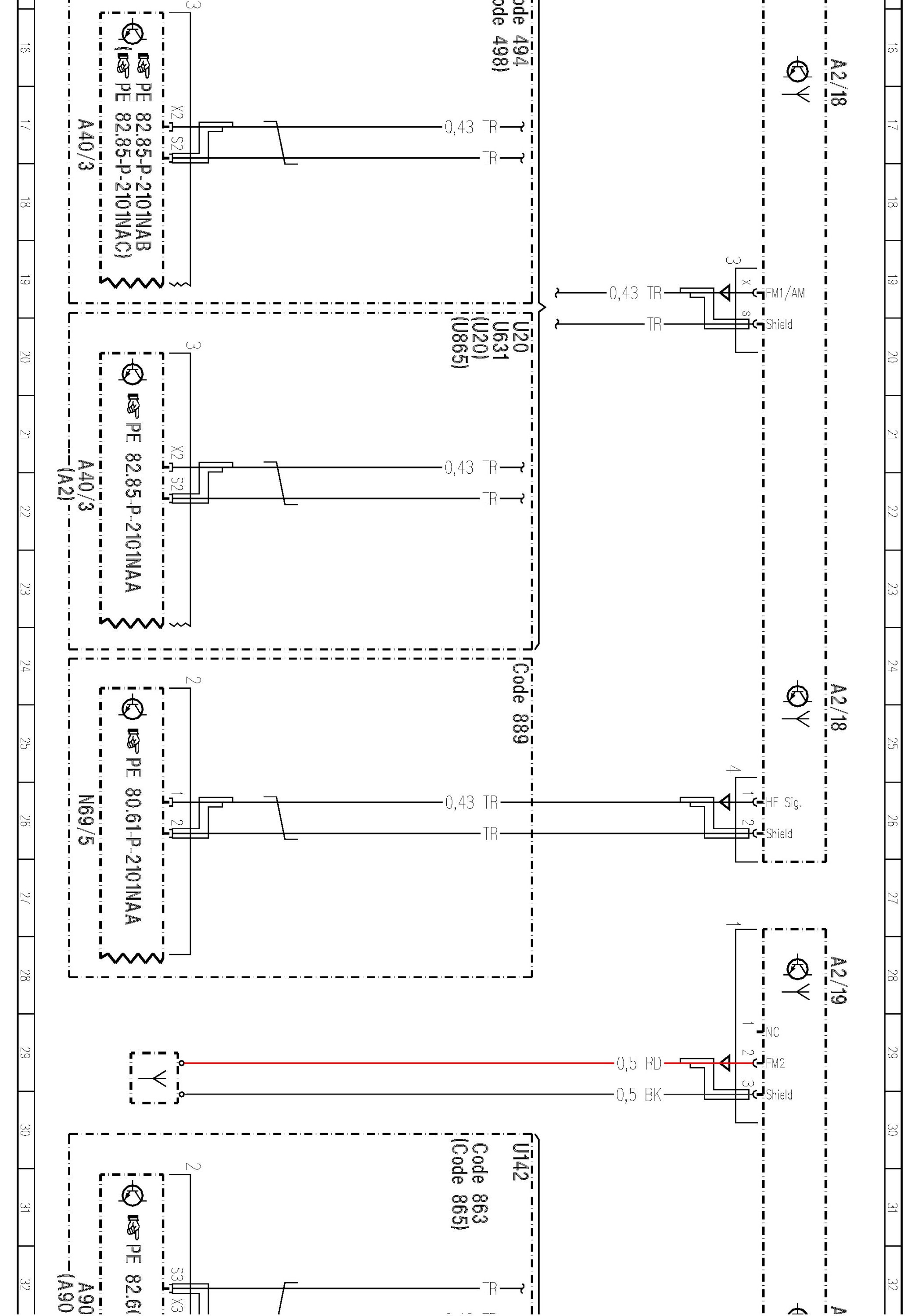

PE82.62-P-2103NAA Antenna Module
MODEL 166

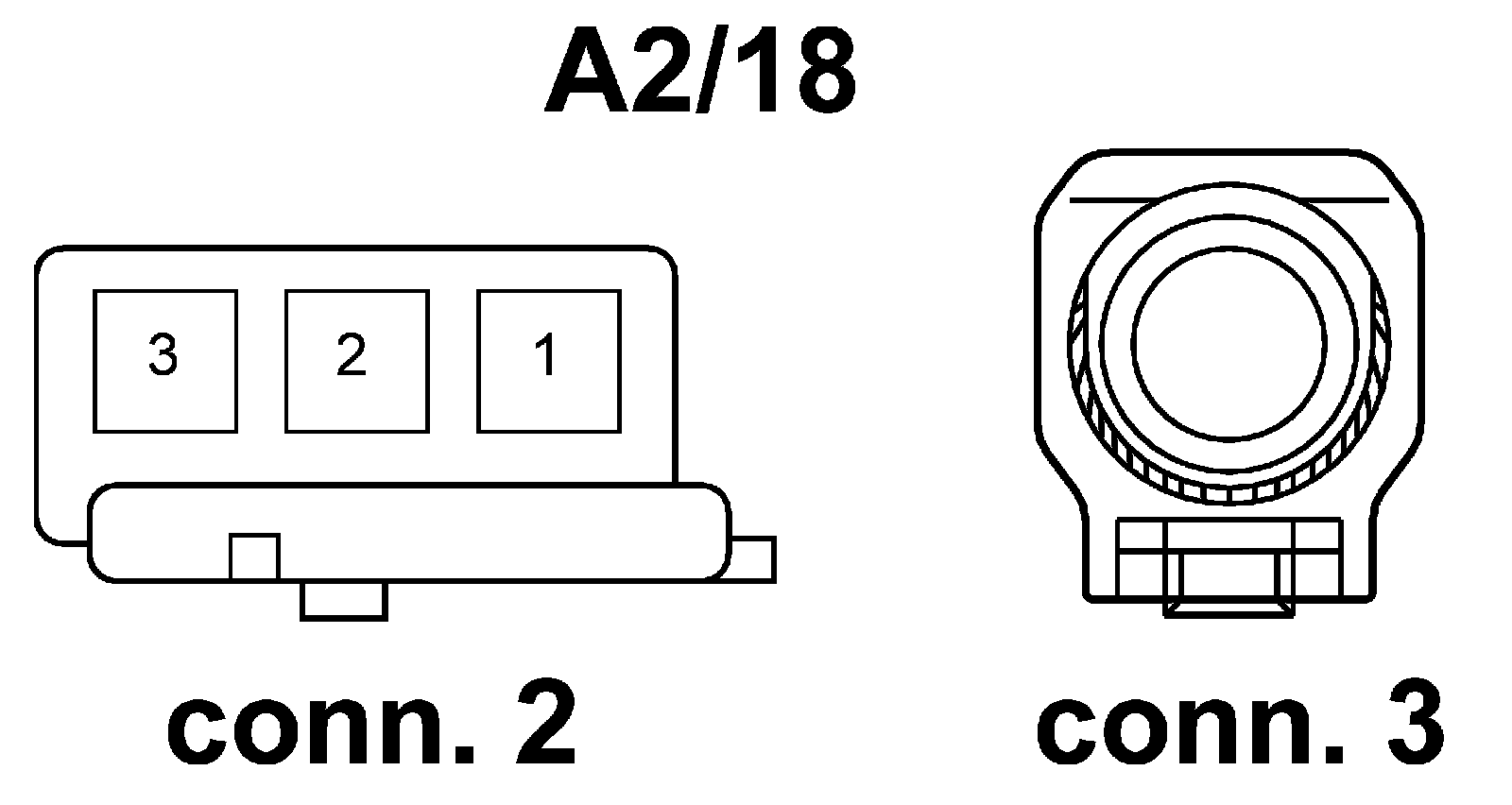

A2/18, A2/19














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
