AN82.85-P-0020-05GQ Retrofit Navigation Box Antenna Line

AN82.85-P-0020-05GQ Retrofit Navigation Box Antenna Line
Model 166.0
- with code (510) Audio 20 with CD changer
- with code (523) MB Audio 20 radio
- except code (512) COMAND APS with DVD changer
- except code (527) COMAND APS with single DVD drive (with navigation)
- except code (494) USA version
- except code (498) Japan version

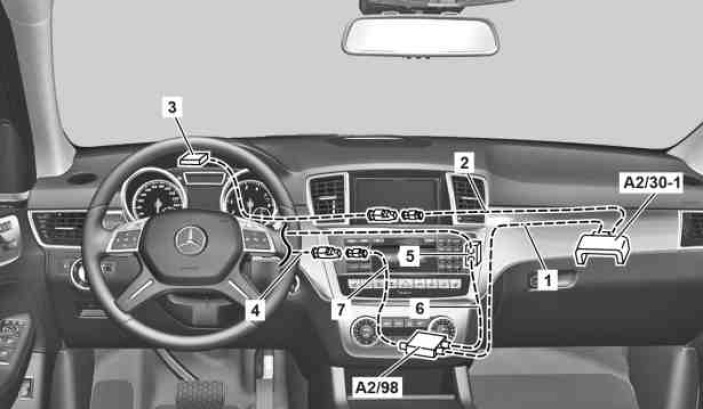

1 Connect black 1-pin connector of TMC navigation module antenna line (1) to FM/TMC antenna splitter (A2/98).
2 Route TMC navigation module antenna line (1) along existing wiring harnesses to the installation location for the holder for the navigation module (A2/30-1) and fix in place using cable tie.
3 Connect GPS antenna adapter line (2) into free contact cavity of white 2-pin connector.
The GPS antenna adapter line (2) was routed into the front passenger footwell when installing the GPS antenna (3).
4 Remove on-board antenna line (FM2) (4) from contact cavity "1" of white 2-pin connector (5).
The on-board antenna line (FM2) (4) is connected later on with an adapter line to the FM/TMC antenna splitter (A2/98).
5 Install the angled connector of the 1600 mm long antenna line (FM2) (6) into contact cavity "1" of the white 2-pin connector (5).
6 Route the 1600 mm long antenna line (FM2) (6), as shown, along the vehicle wiring harness to the previously installed FM/TMC antenna splitter (A2/98).
7 Connect white 1-pin connector of 1600 mm long antenna line (FM2) (6) to FM/TMC antenna splitter (A2/98).
8 Fasten the 1600 mm long antenna line (FM2) (6) using cable tie to the vehicle wiring harness.
9 Connect white 1-pin plug of 1700 mm long antenna line (FM2) (7) to white 1-pin connector of antenna line (FM2) (4).
10 Route antenna line (FM2) (4) to the installation location of FM/TMC antenna splitter (A2/98) and fix in place using cable tie.
11 Connect black 1-pin plug to FM/TMC antenna splitter (A2/98).
