Removal and Replacement

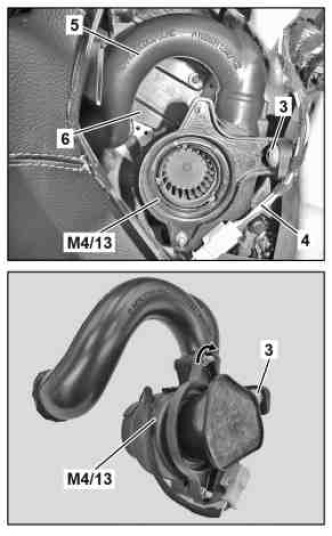

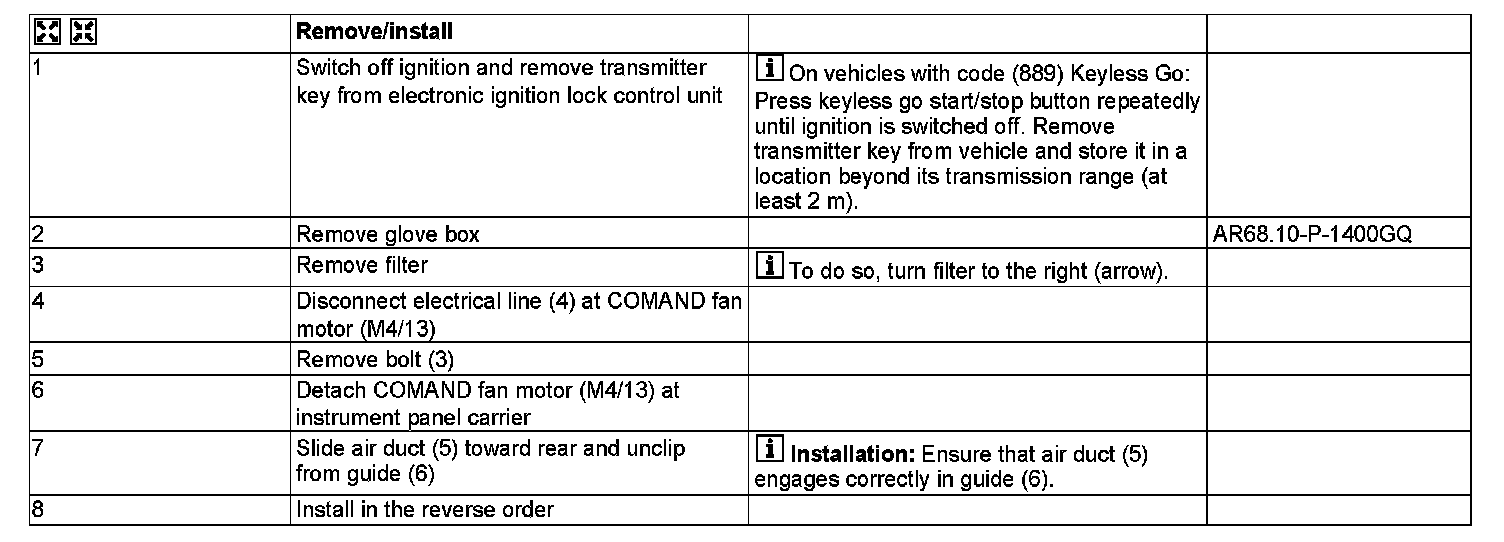

AR82.85-P-0005GQ Remove/Install Additional Fan For COMAND
MODEL 166





3 Screw
4 Electrical line
5 Air duct
6 Guide
M4/13 COMAND fan motor
