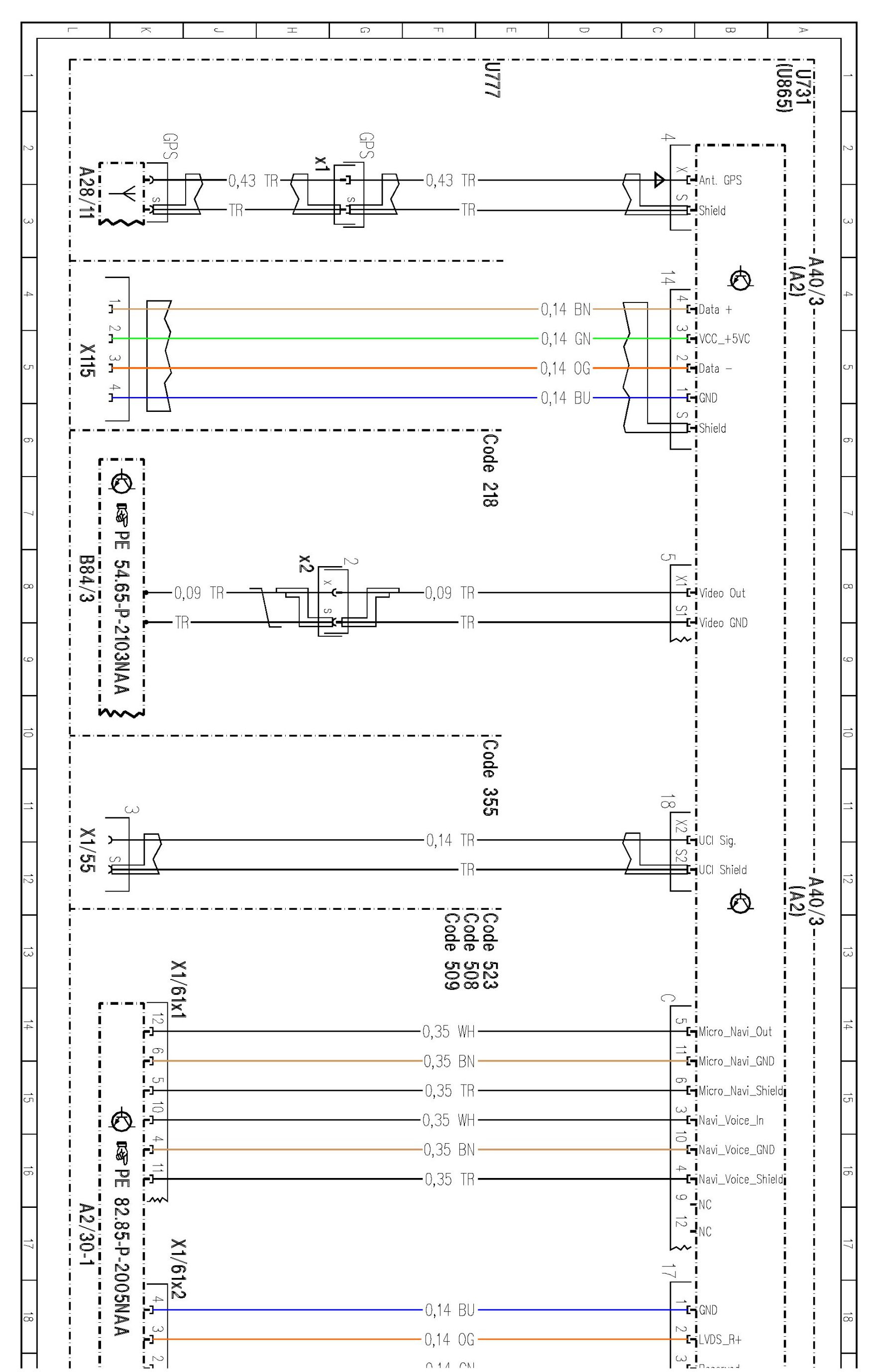

PE82.85-P-2101NAD Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101NAD Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram
MODEL 166
- except CODE (494) USA Version
- except CODE (498) Japan Version
- with CODE (512) COMAND APS With DVD Changer
- with CODE (527) COMAND APS (With Navigation)
- with CODE (523) MB Audio 20 Radio
- with CODE (510) Audio 20 With CD Changer

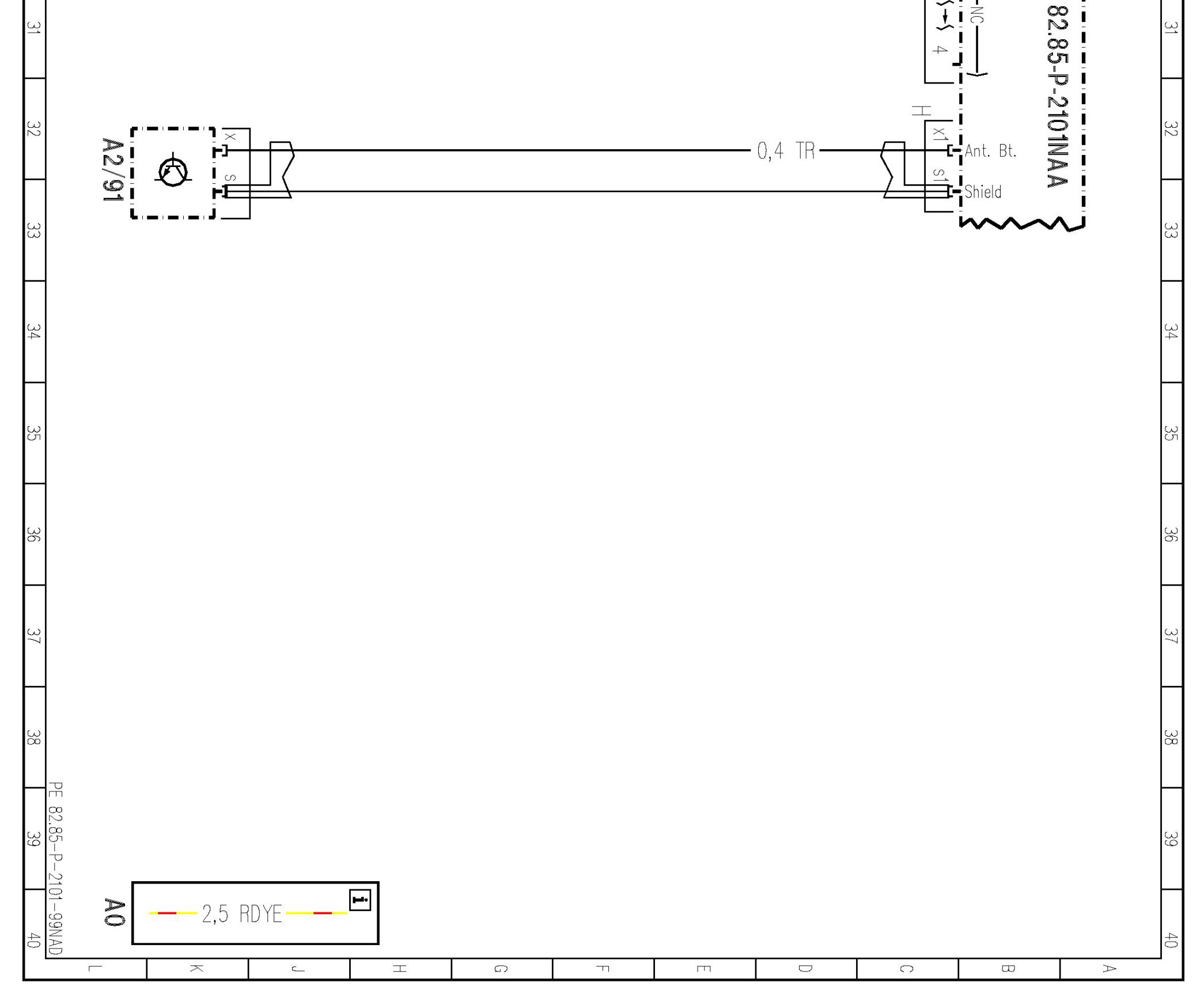

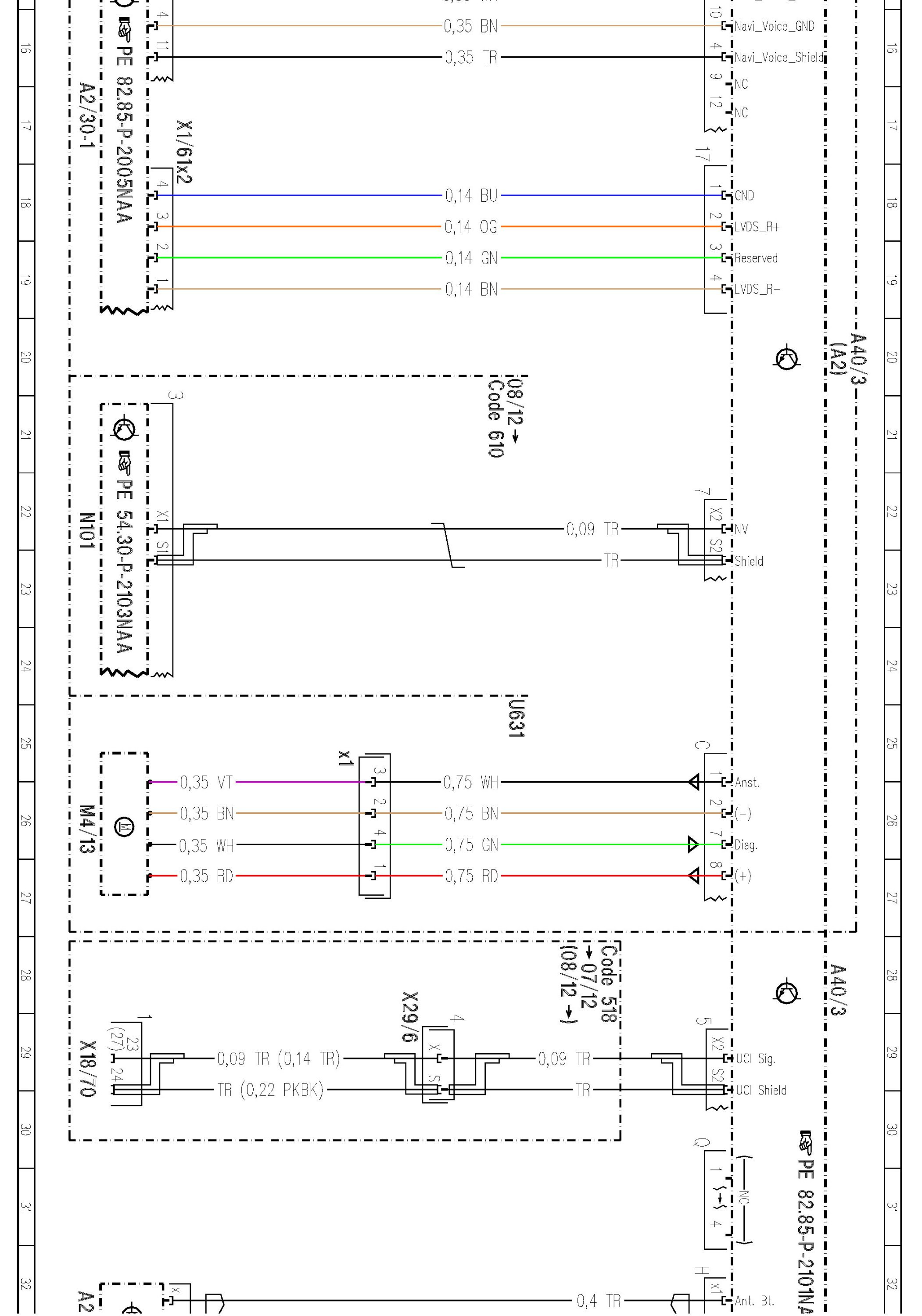

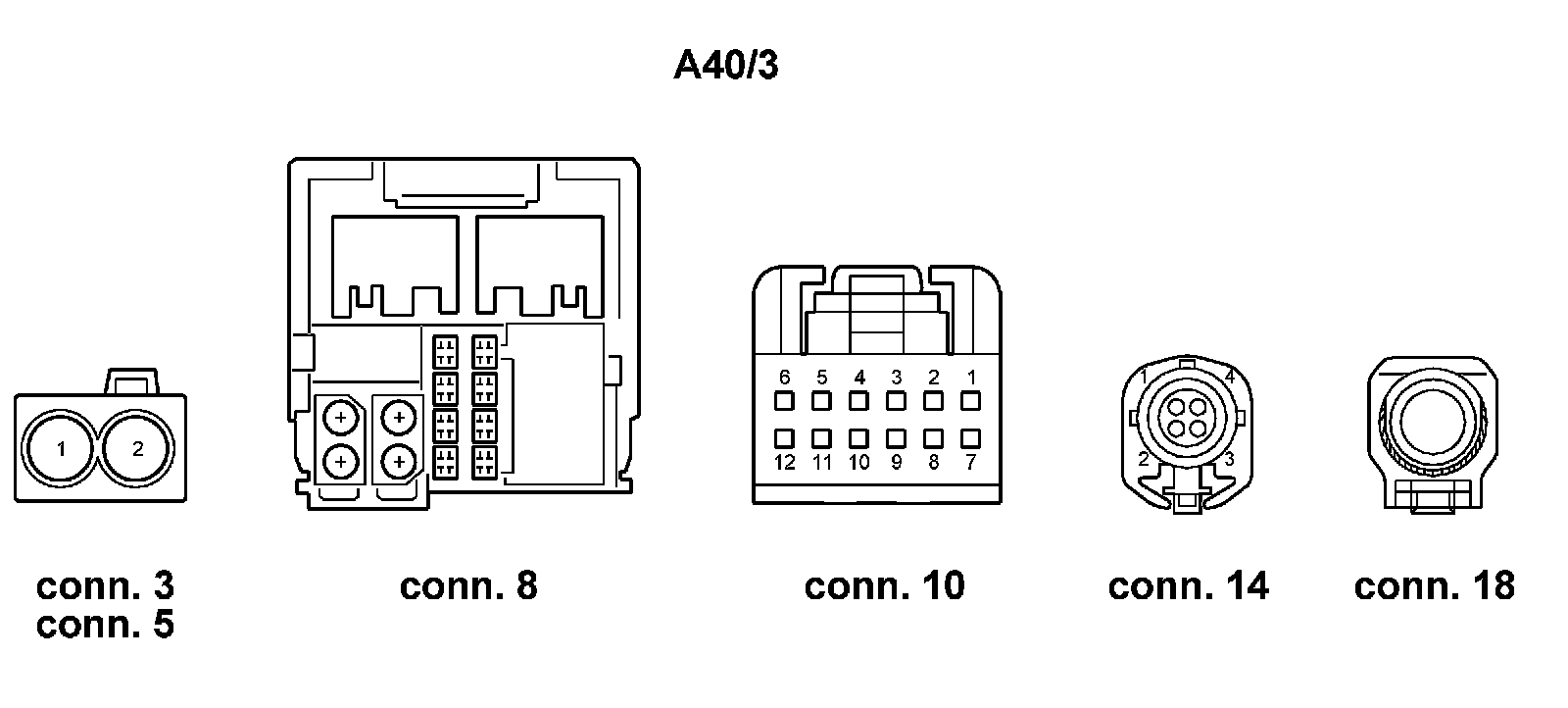

- Control Unit A40/3, A2, Sheet 2

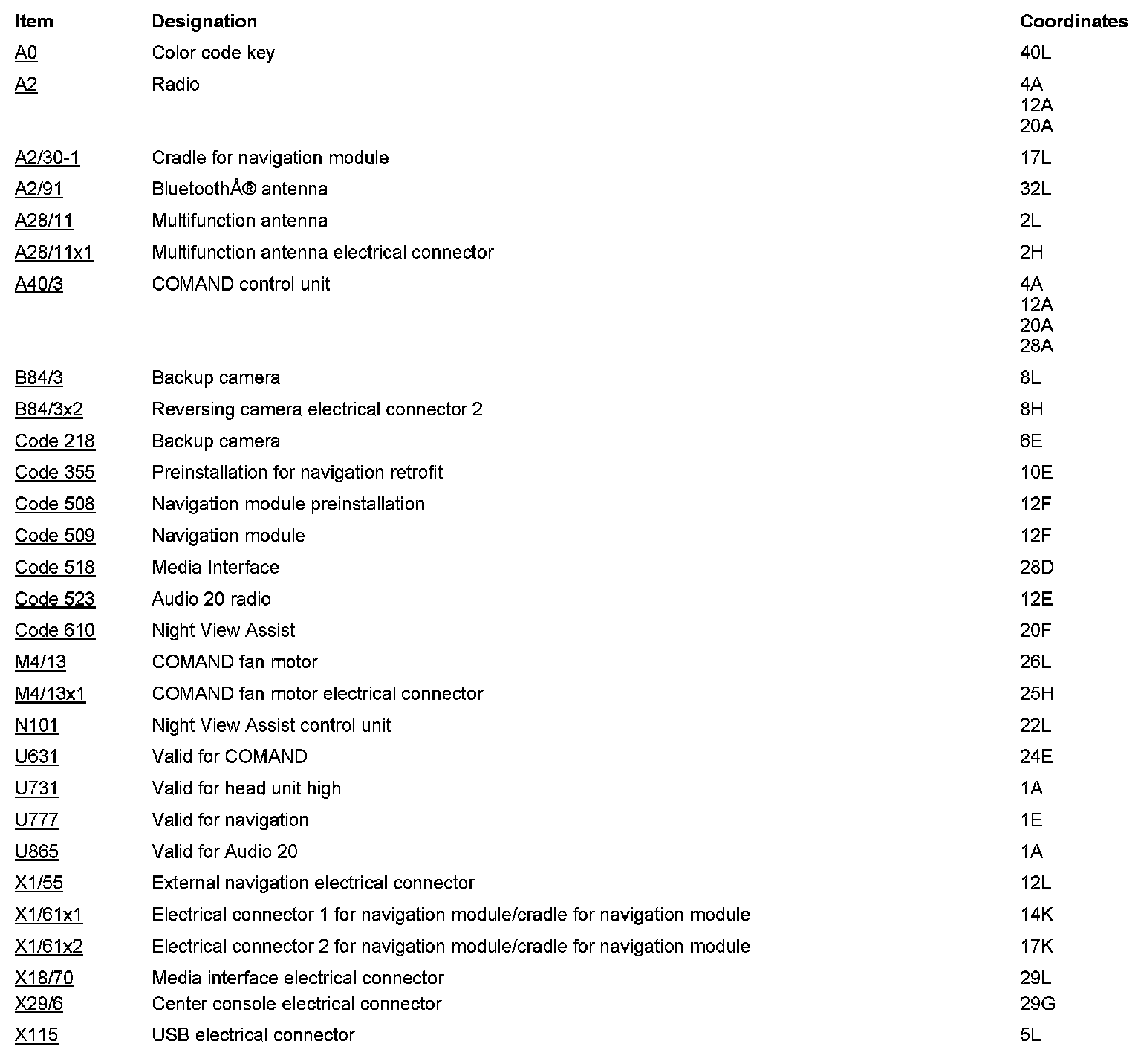

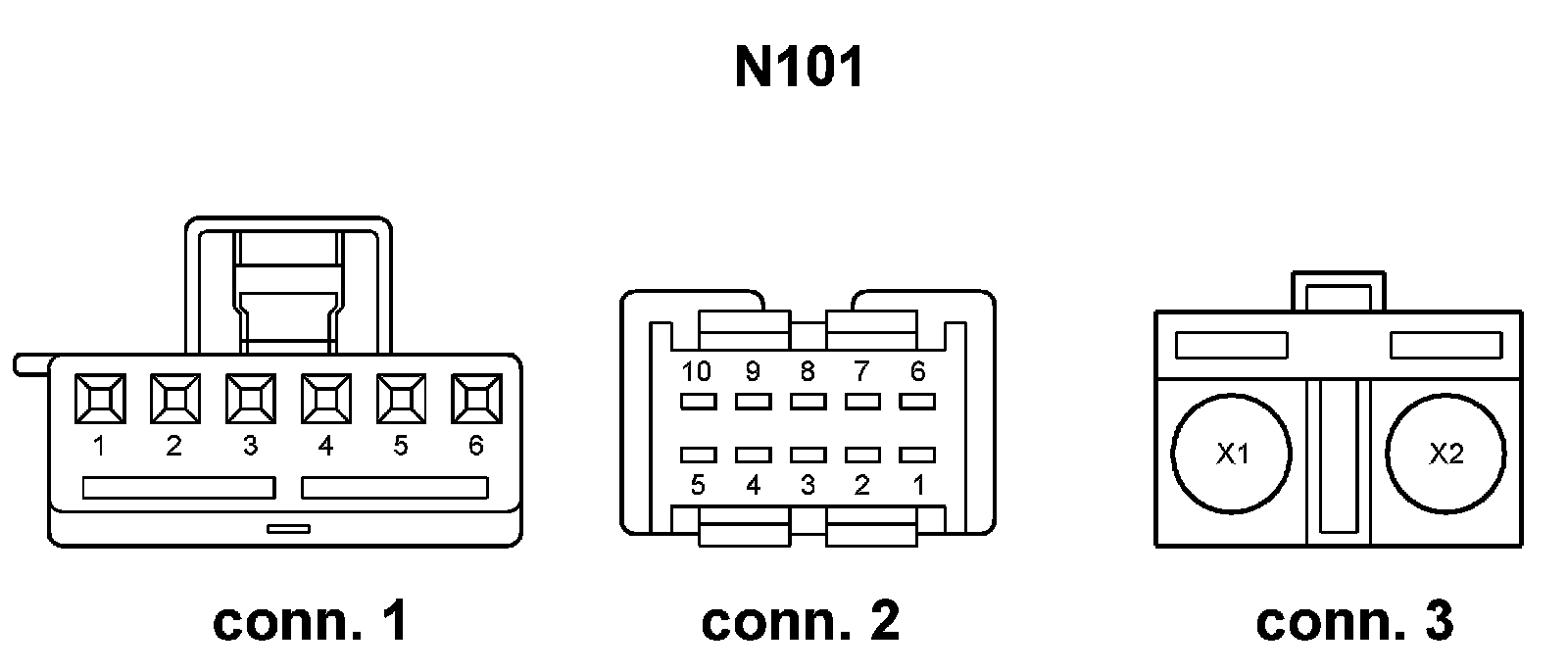

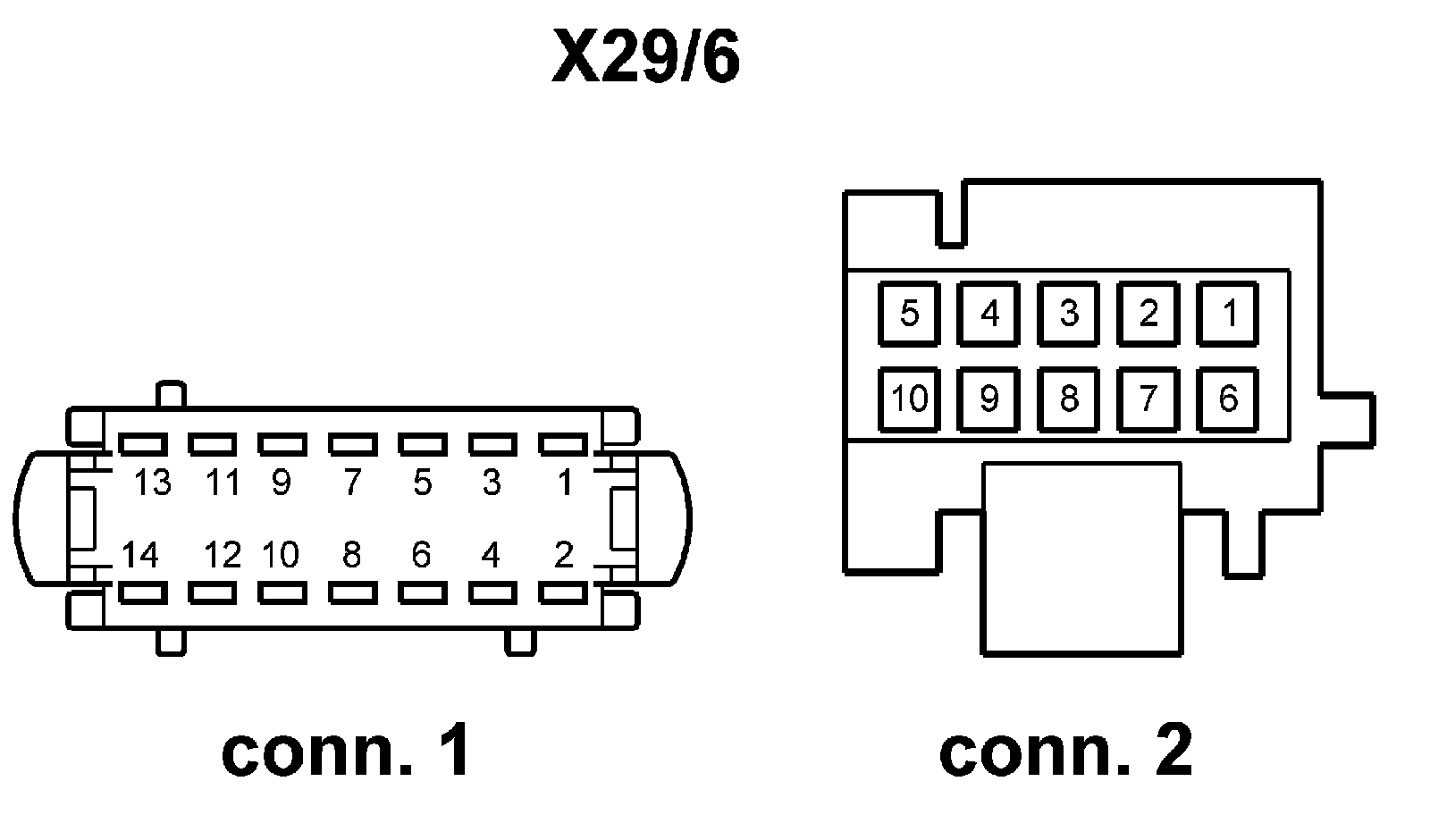

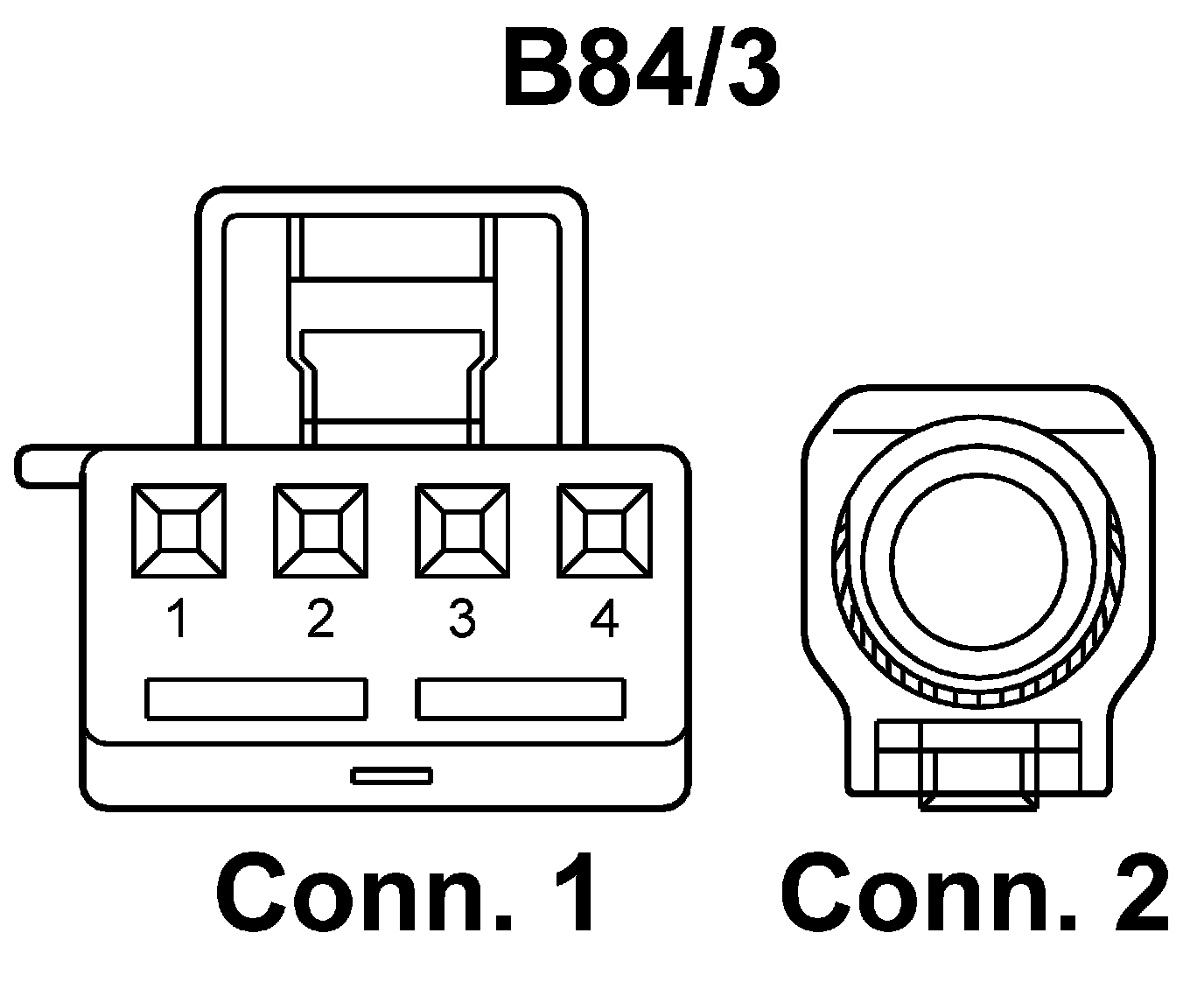

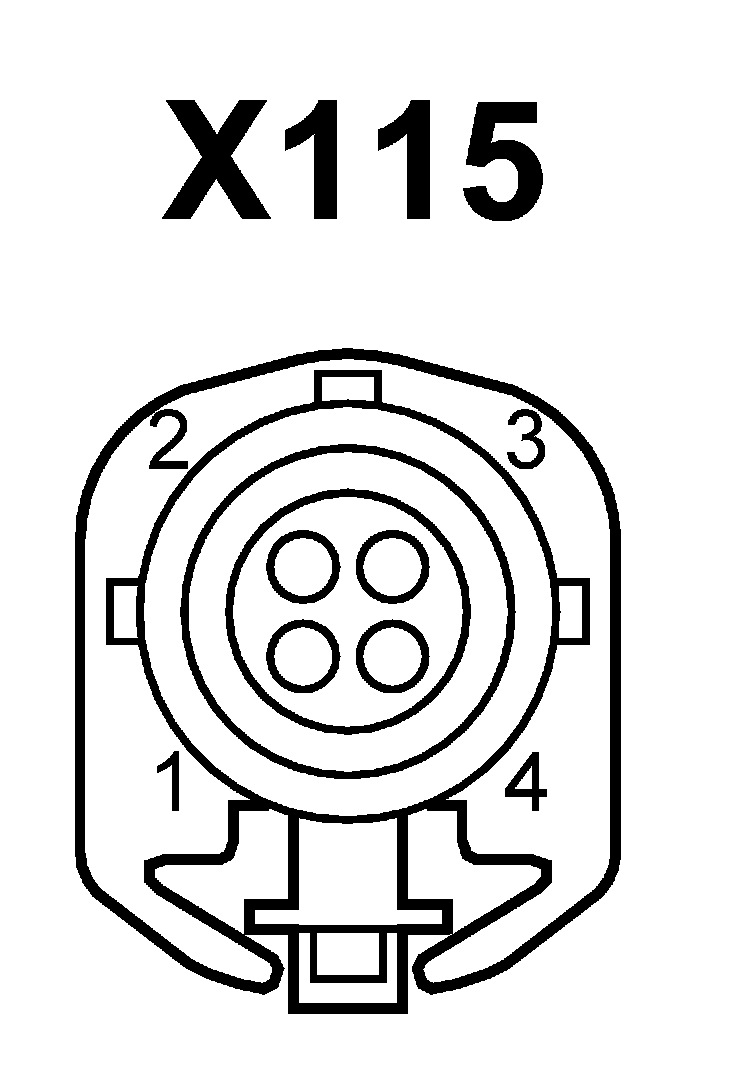

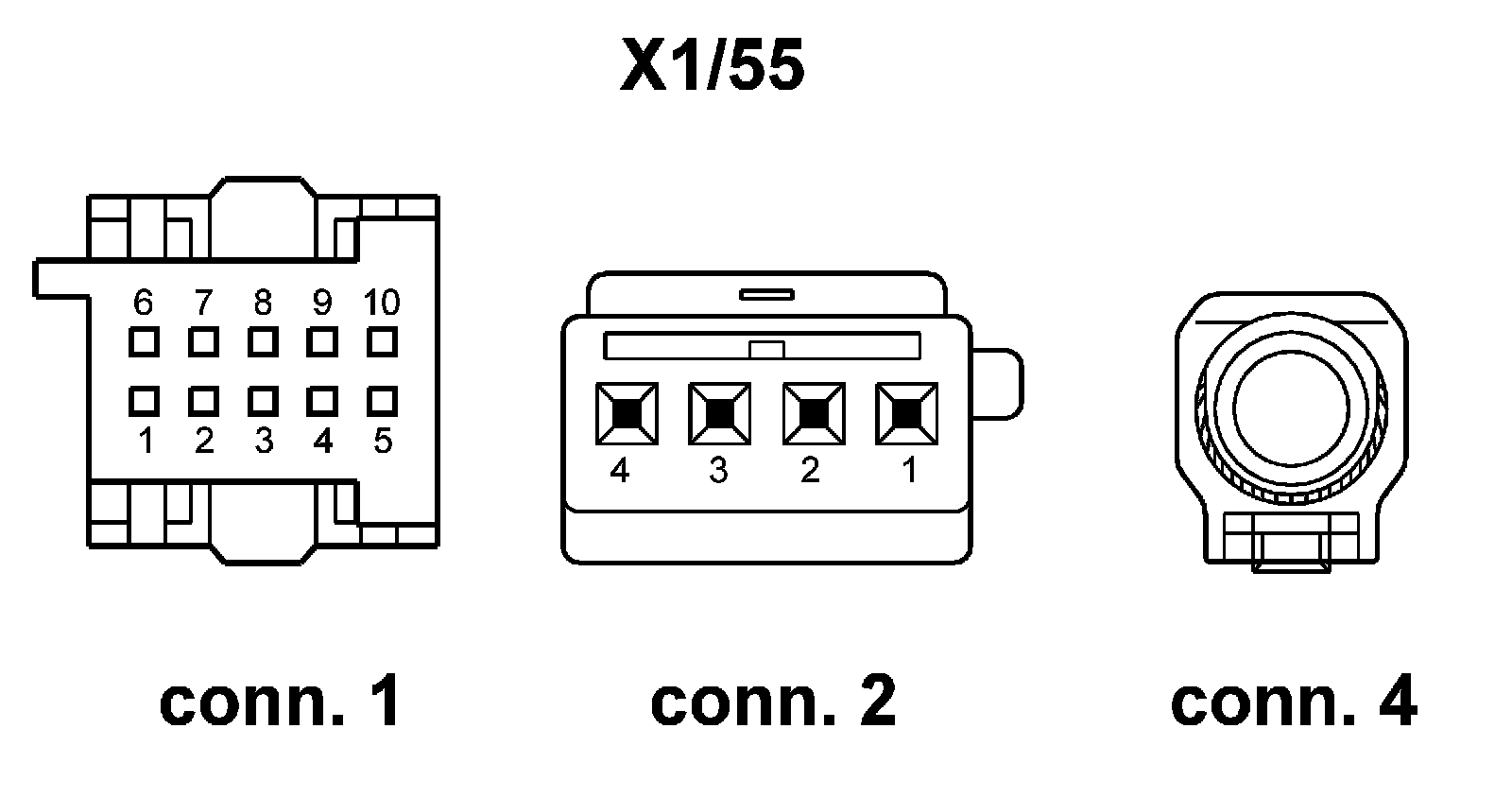

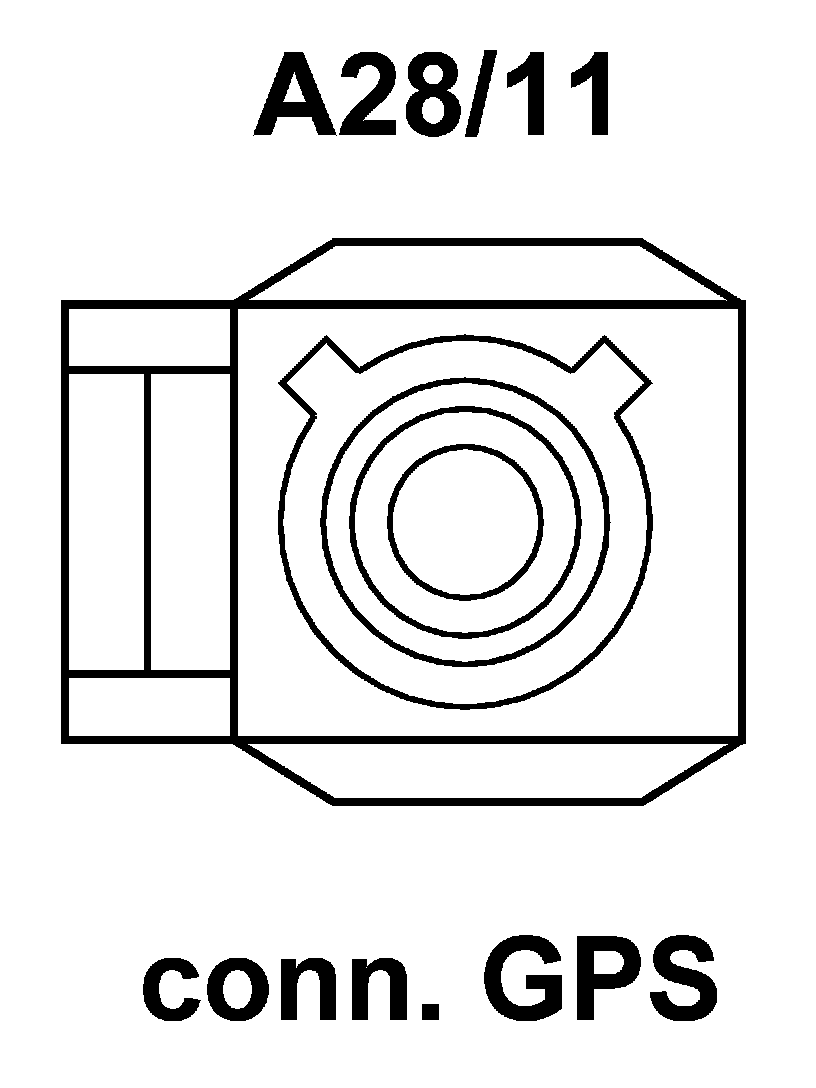

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
