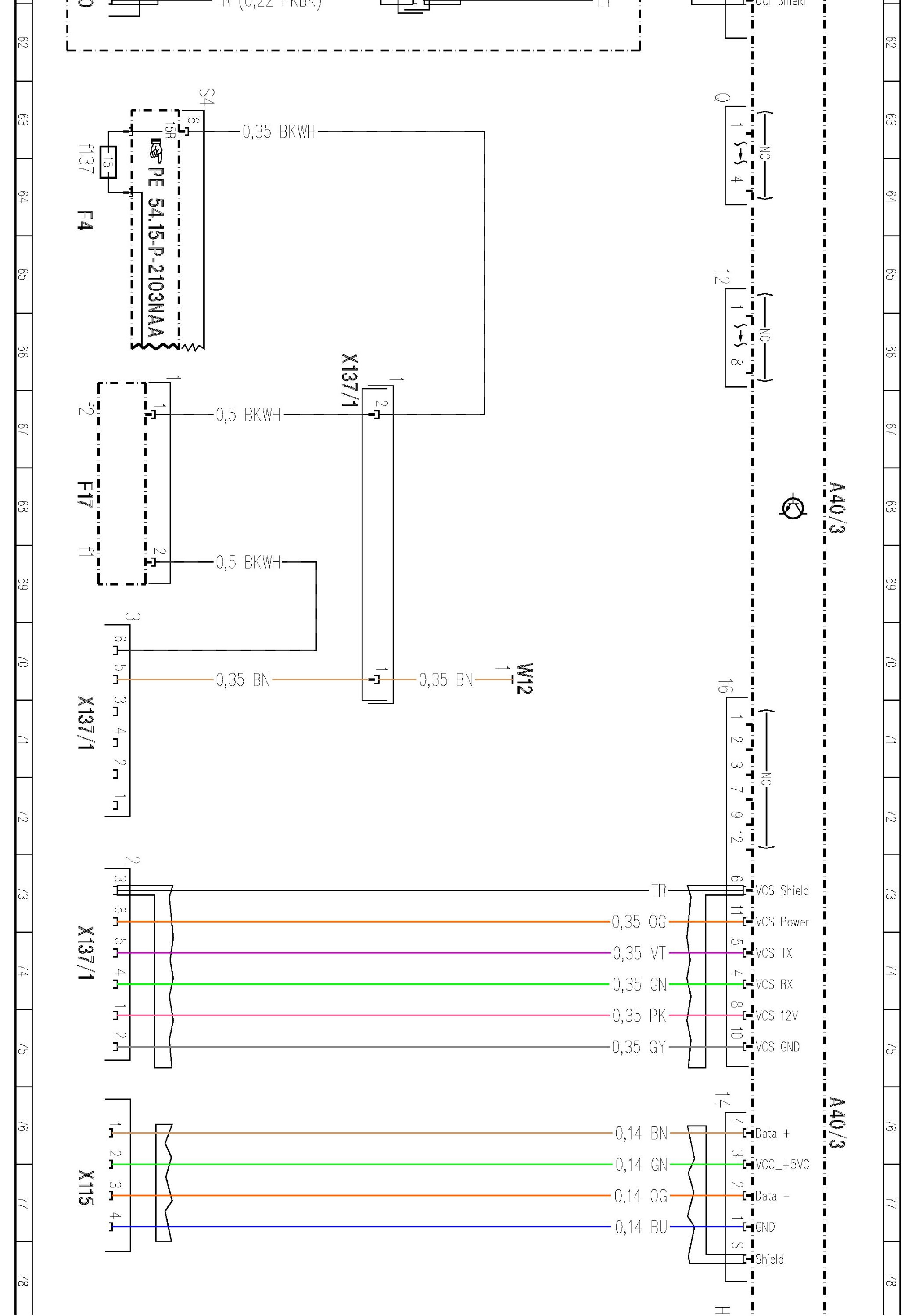

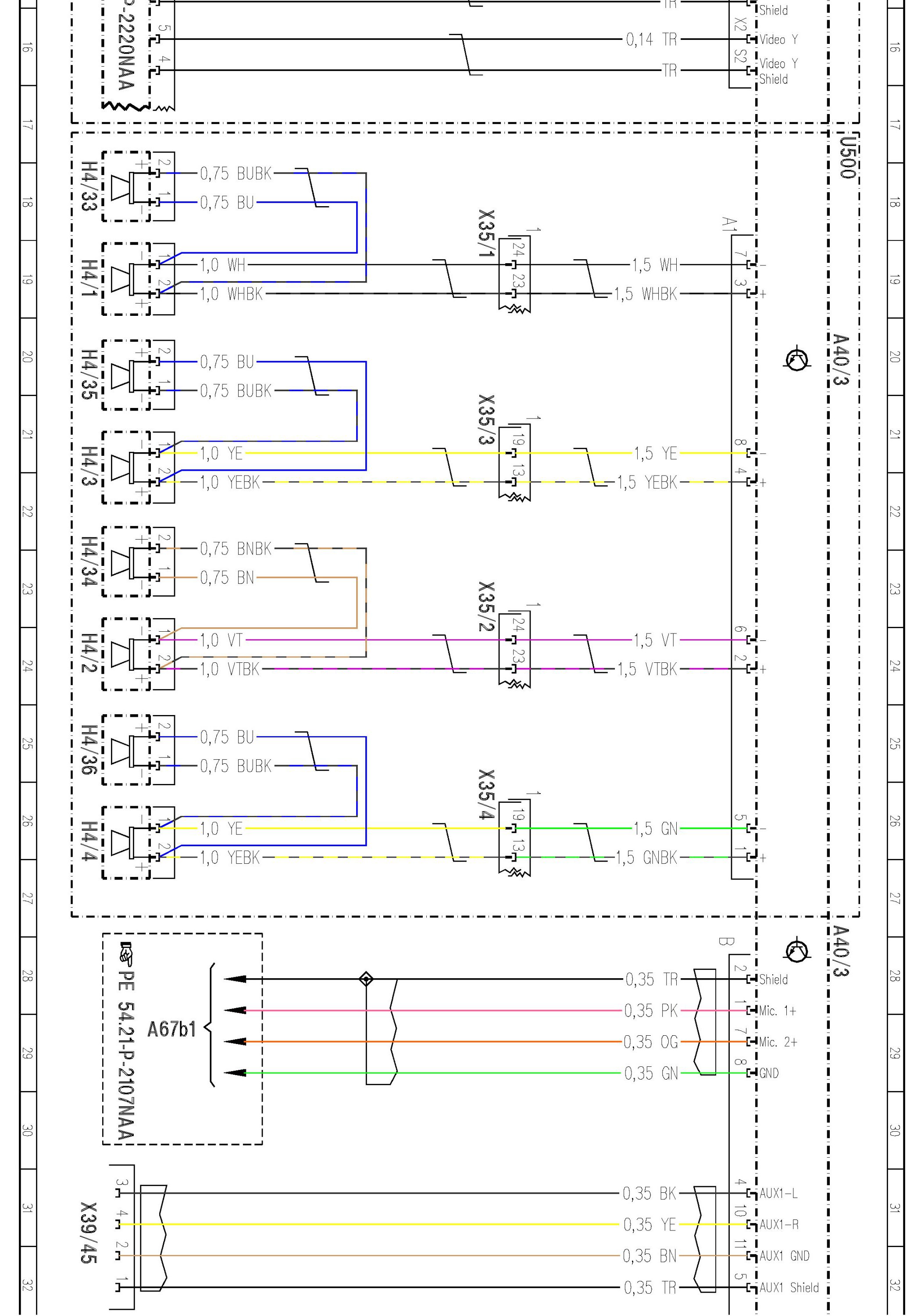

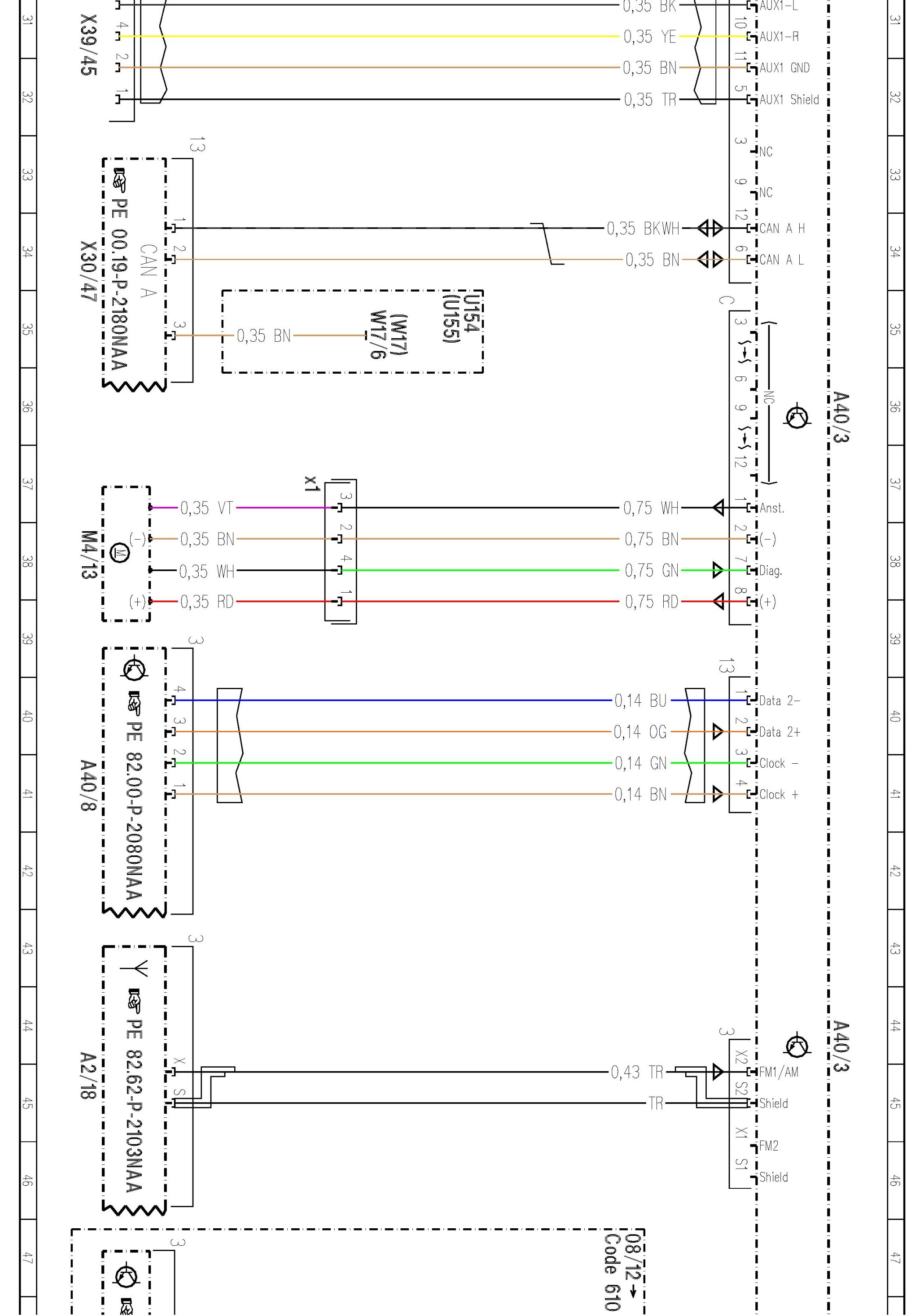

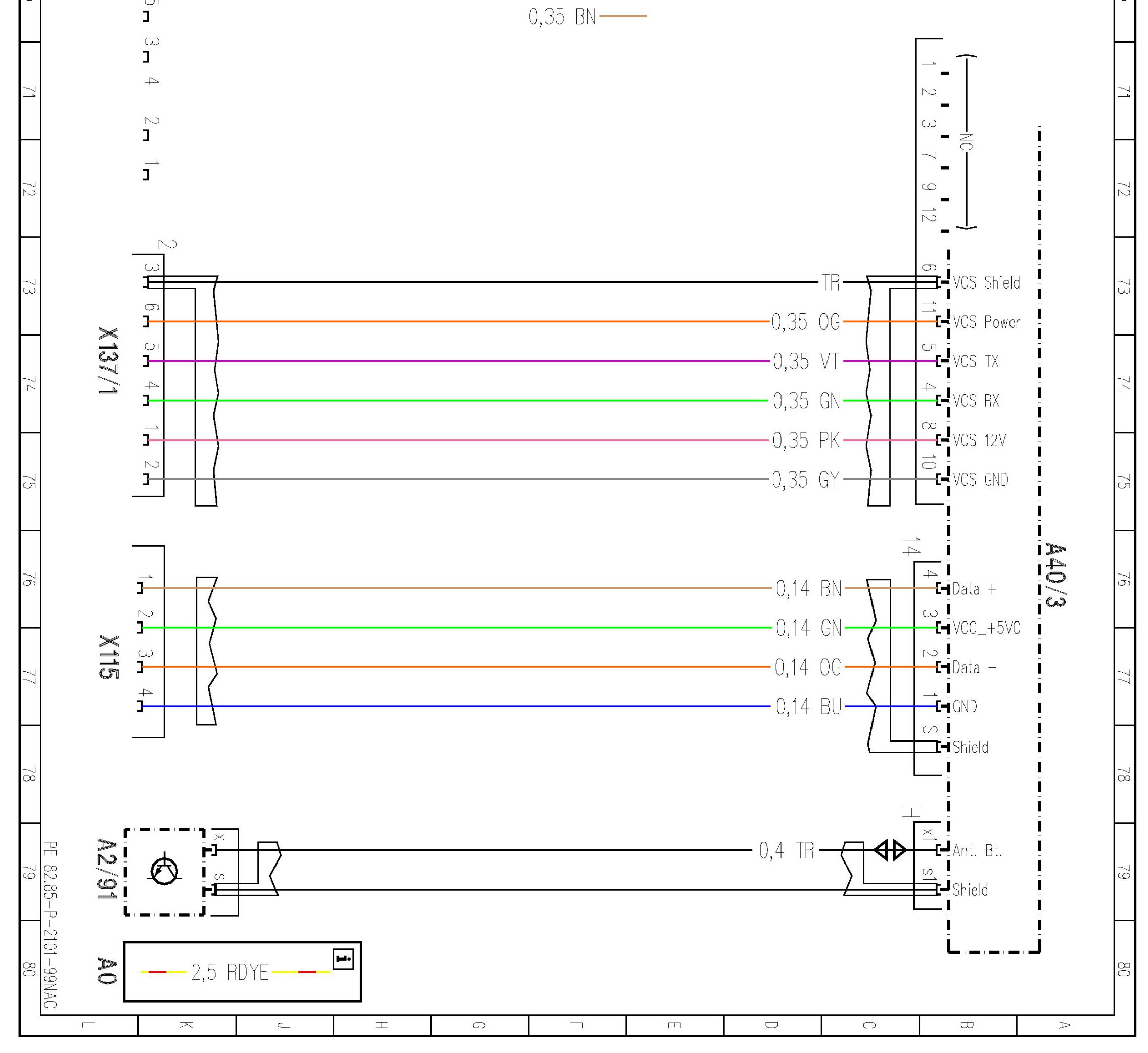

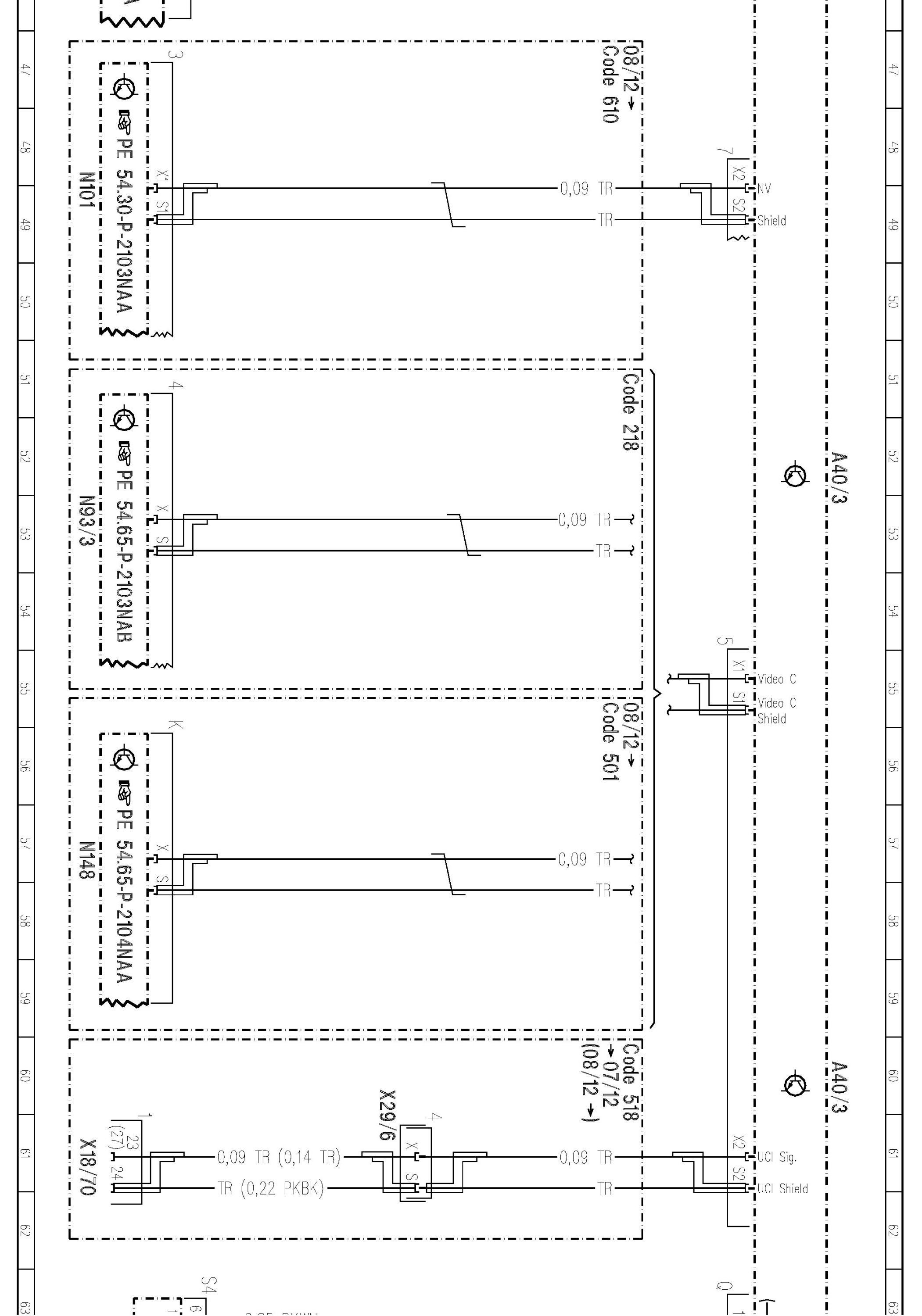

PE82.85-P-2101NAC Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101NAC Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram
MODEL 166
- with CODE (498) Japan version
- with CODE (527) COMAND APS With Single DVD Drive (With Navigation)

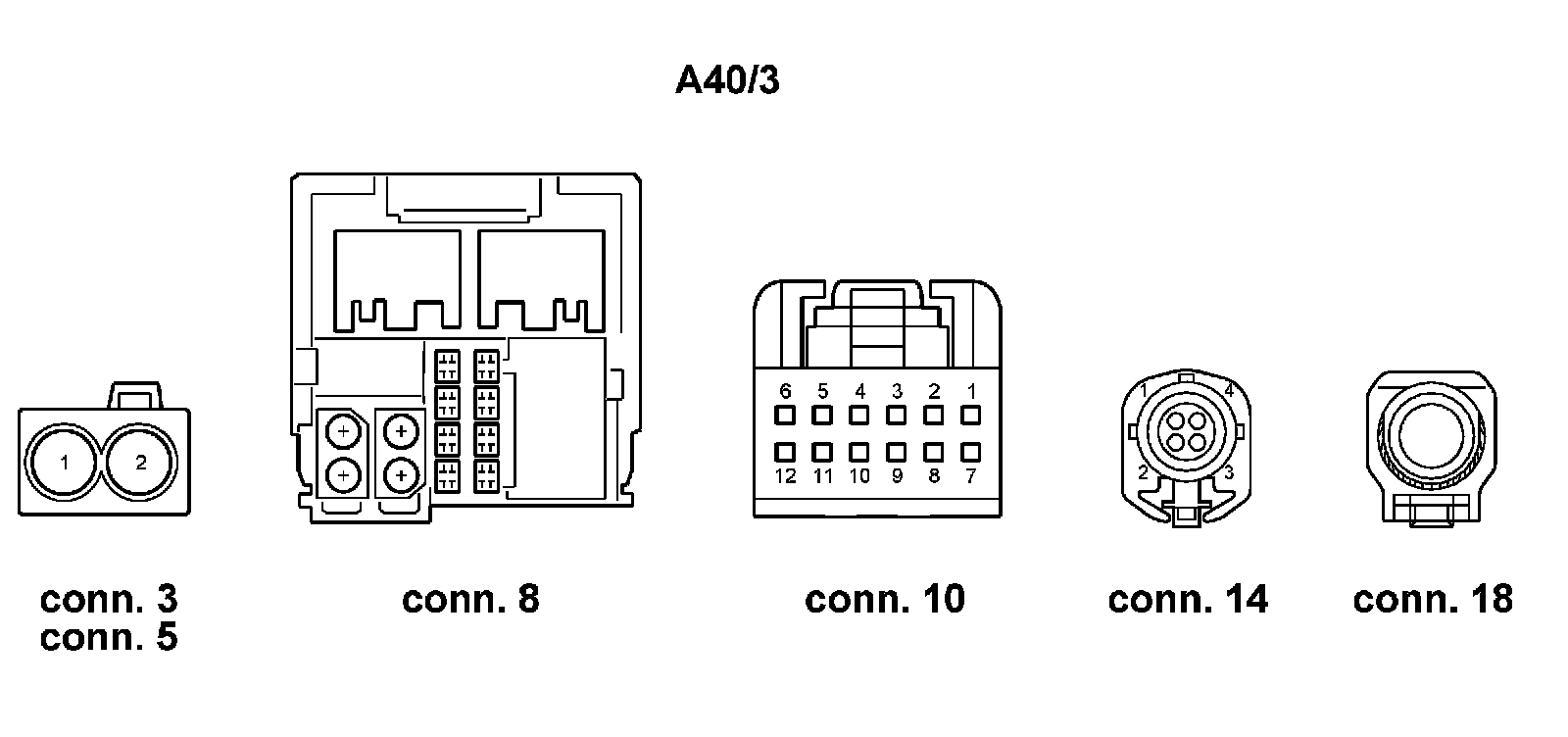

- Control Unit A40/3

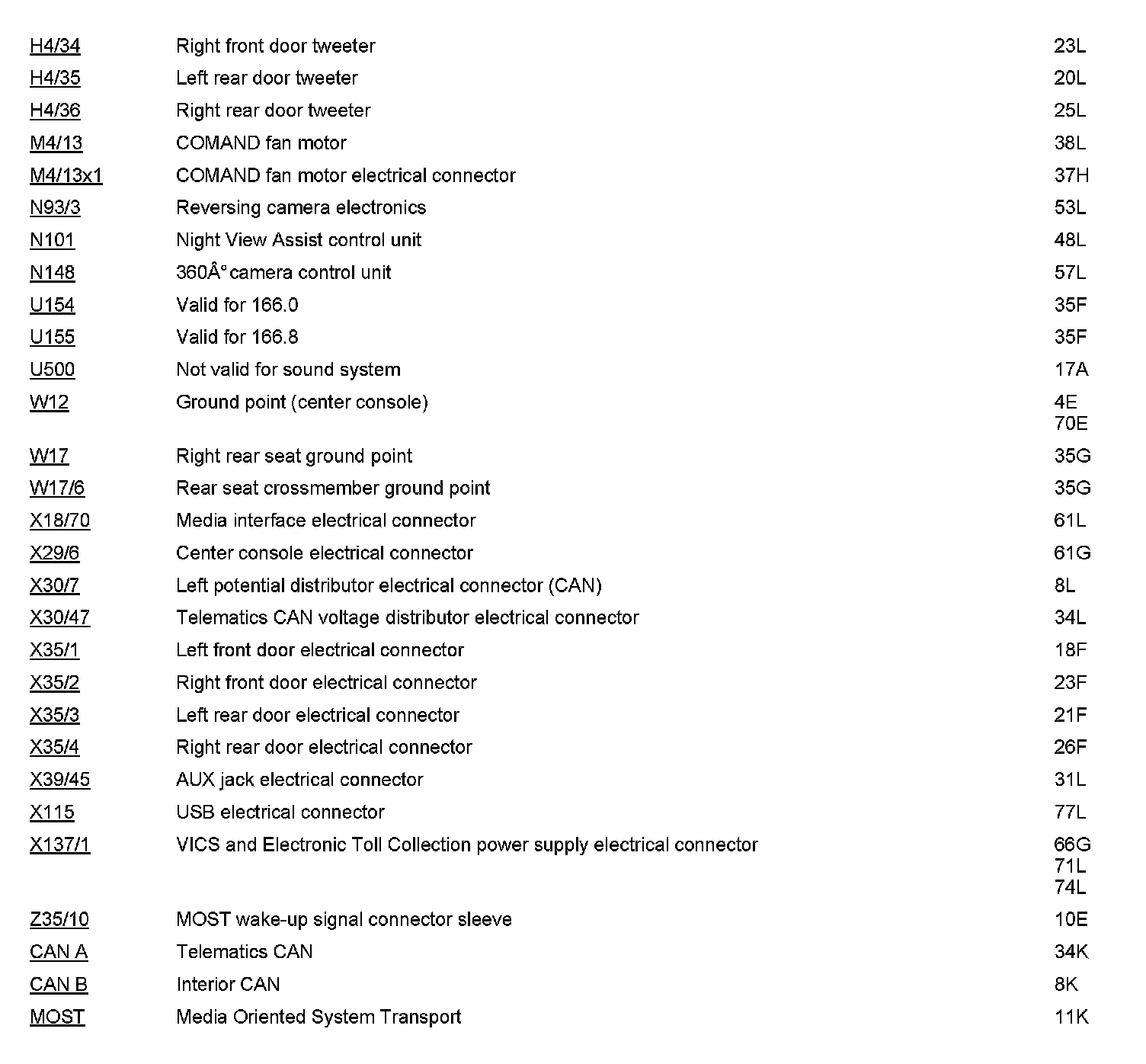

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
