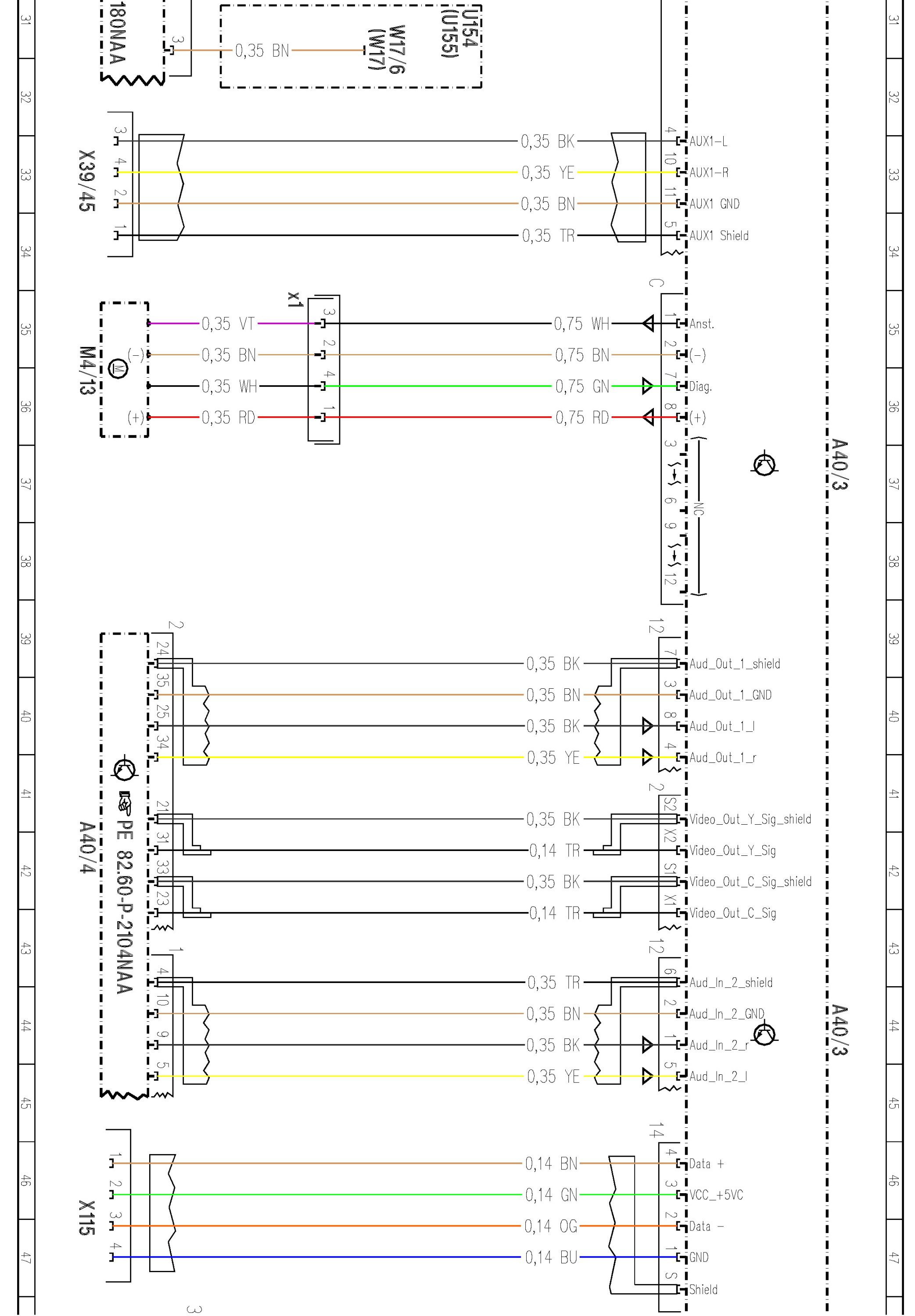

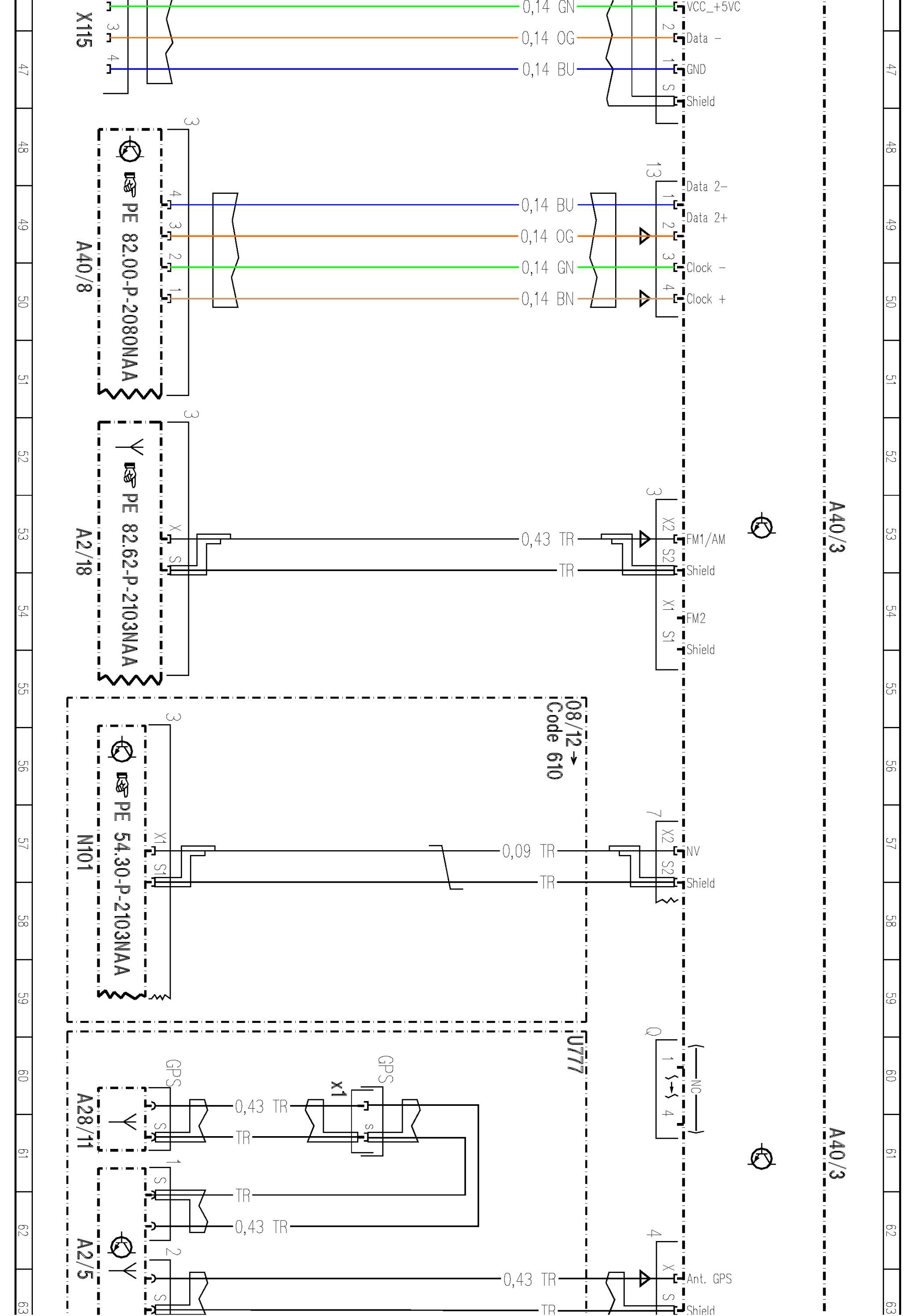

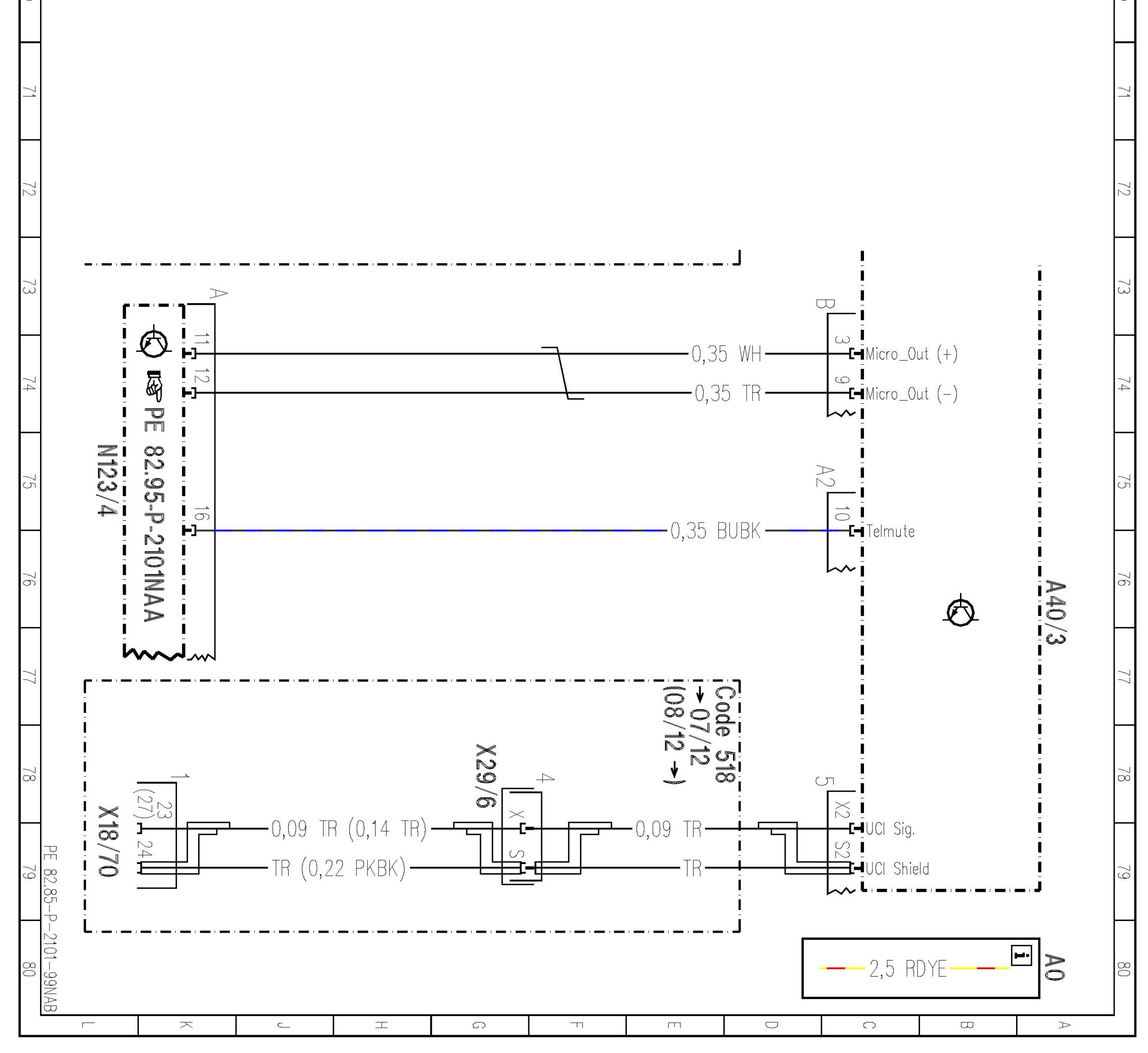

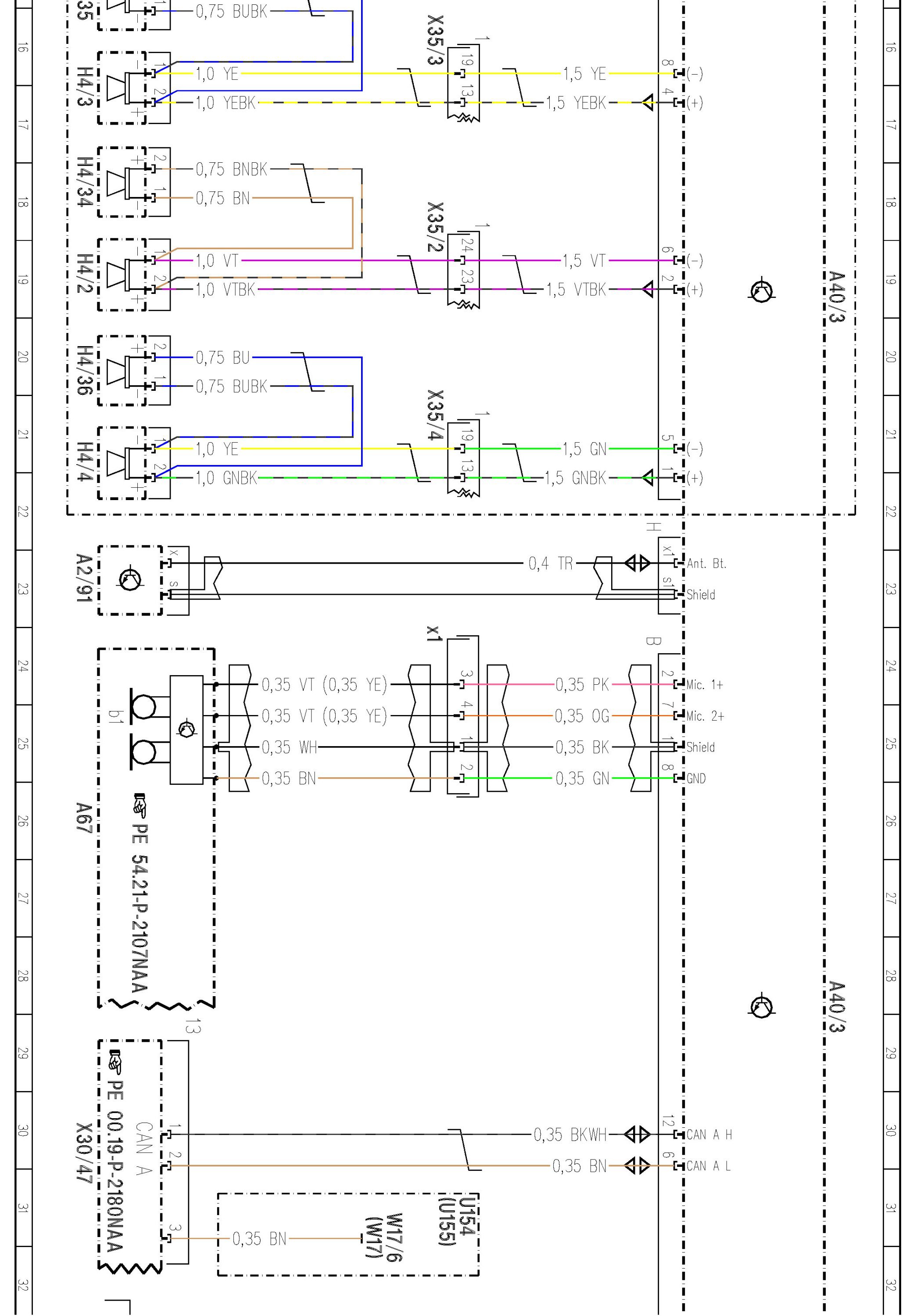

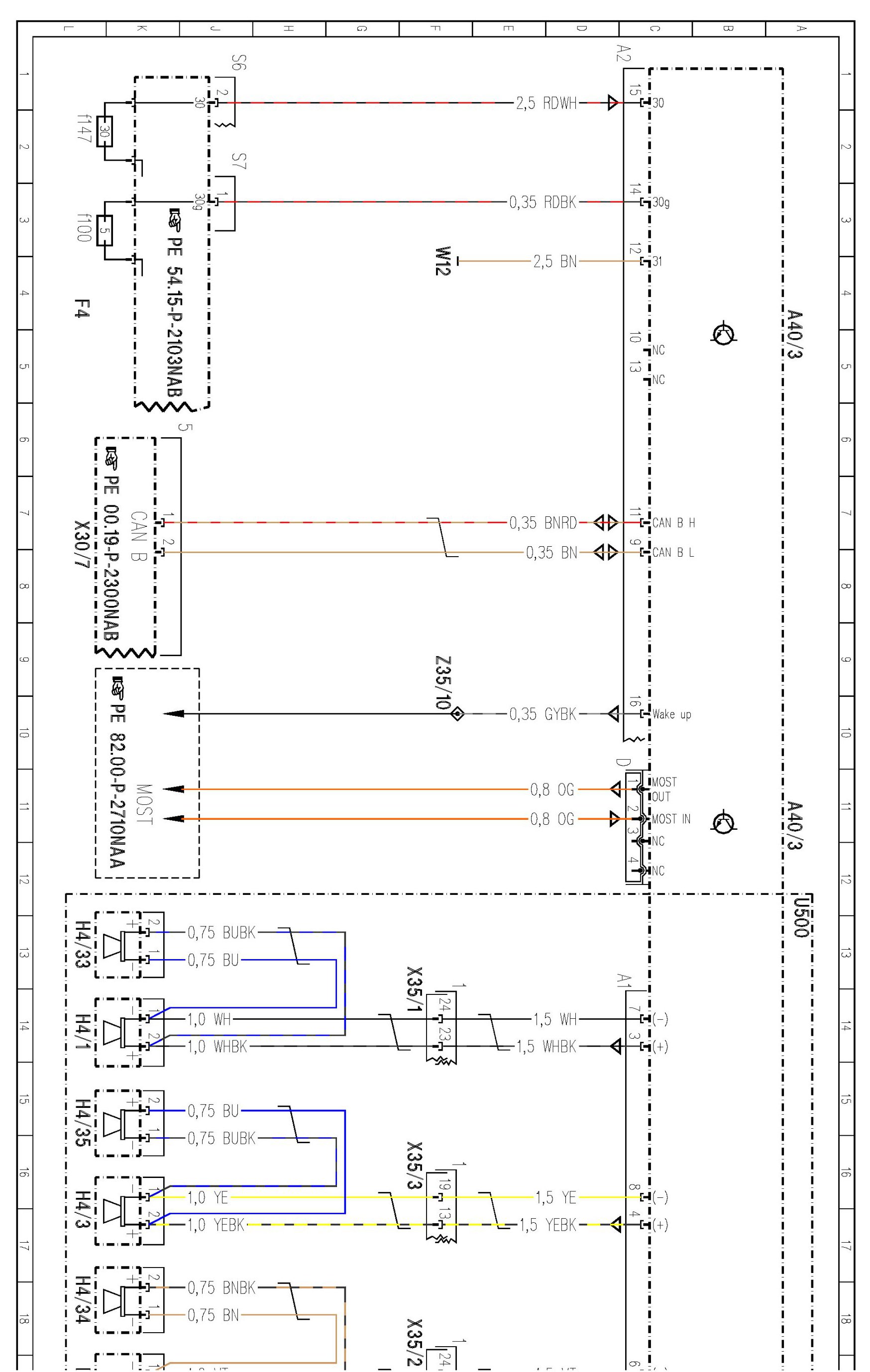

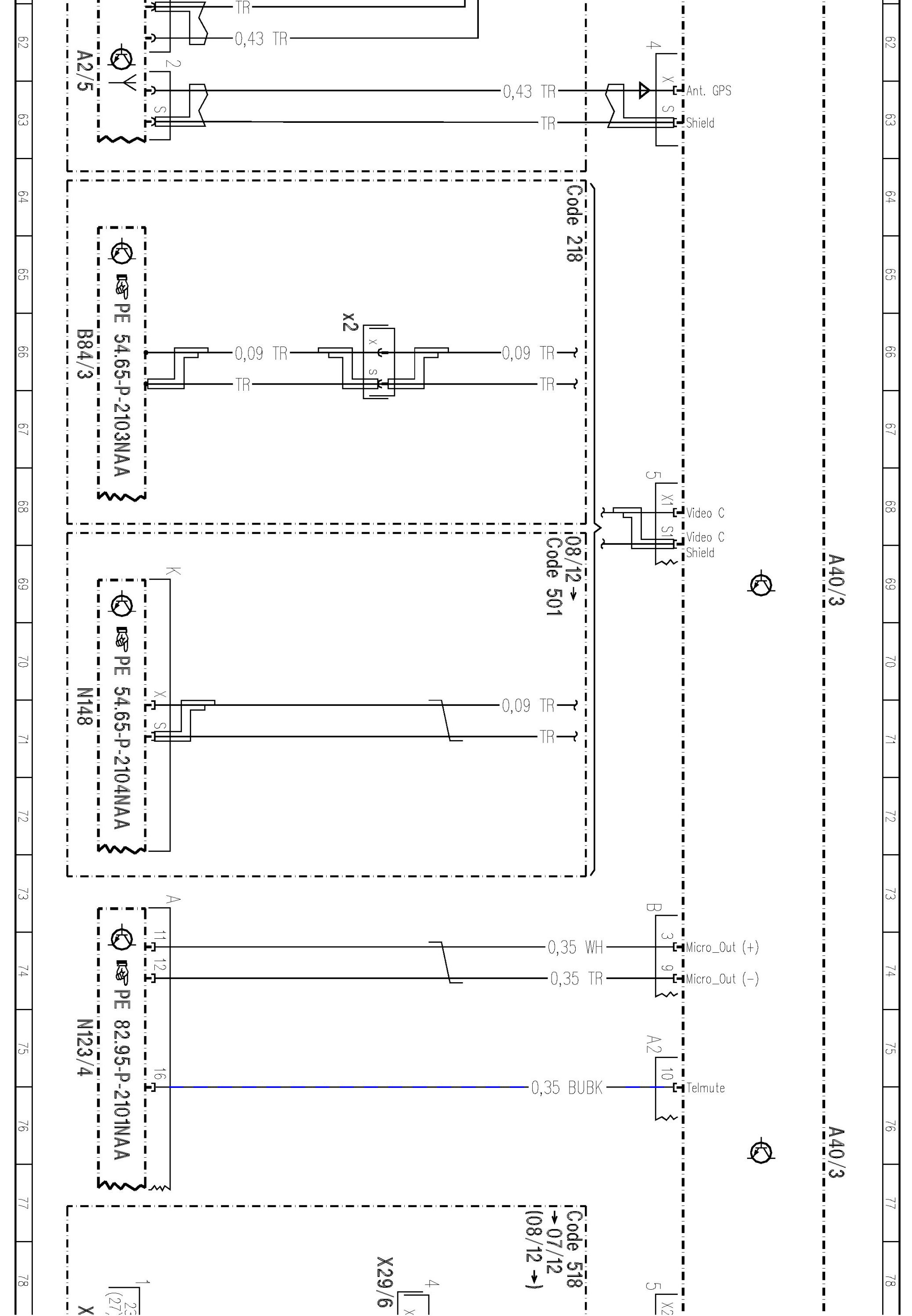

PE82.85-P-2101NAB Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101NAB Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram
MODEL 166
- with CODE (494) USA version
- with CODE (528) HIGH Class USA
- with CODE (512) COMAND APS+

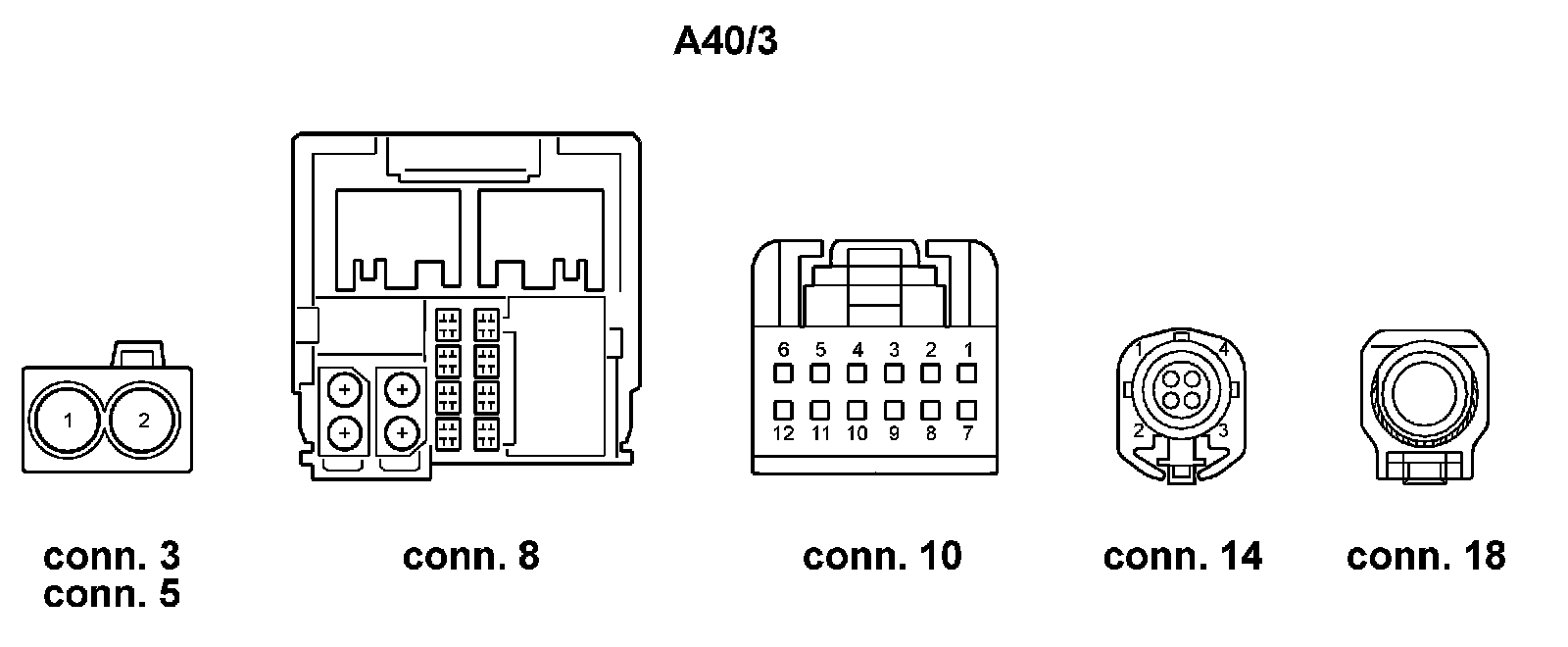

- Control Unit A40/3

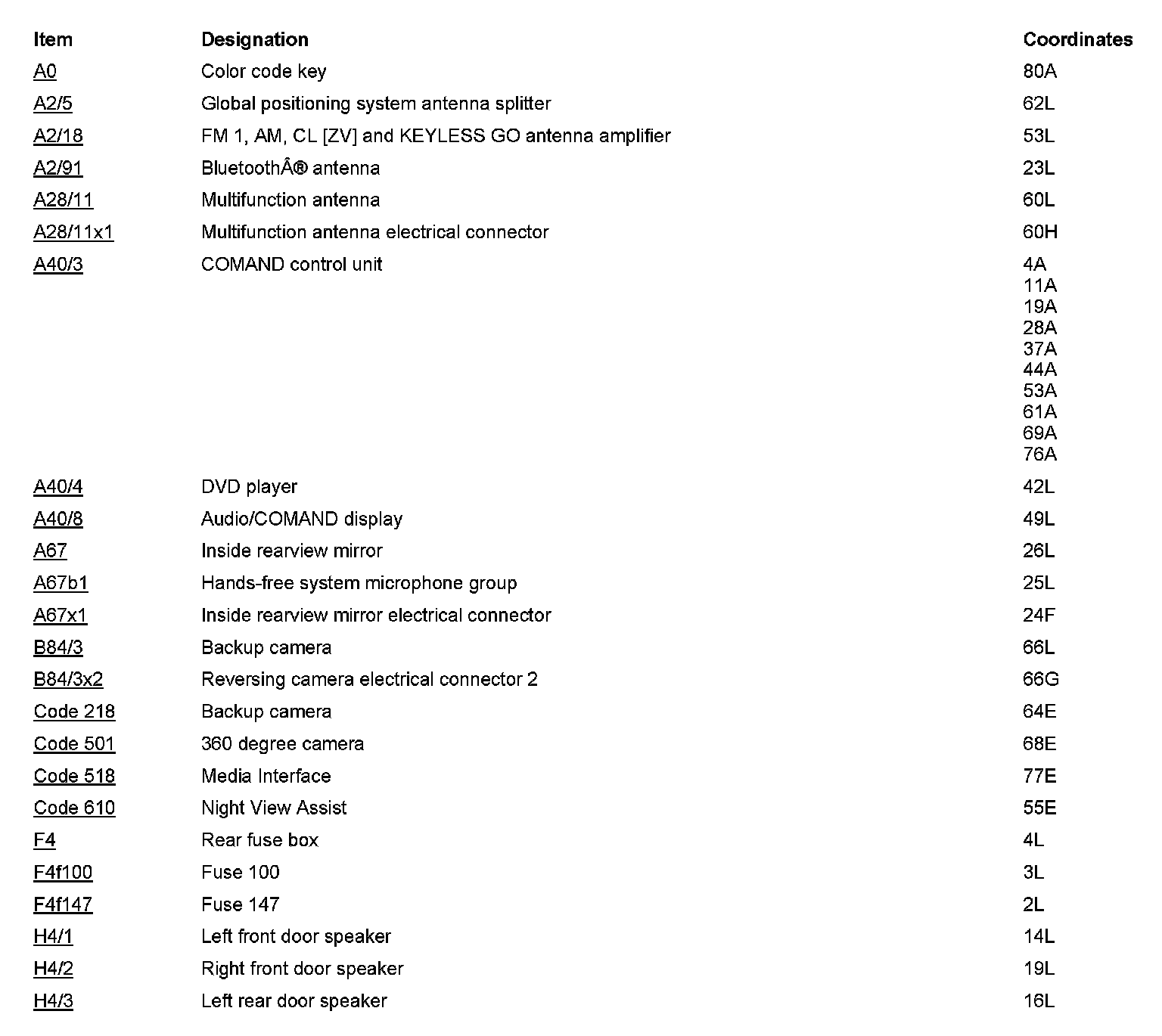

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
