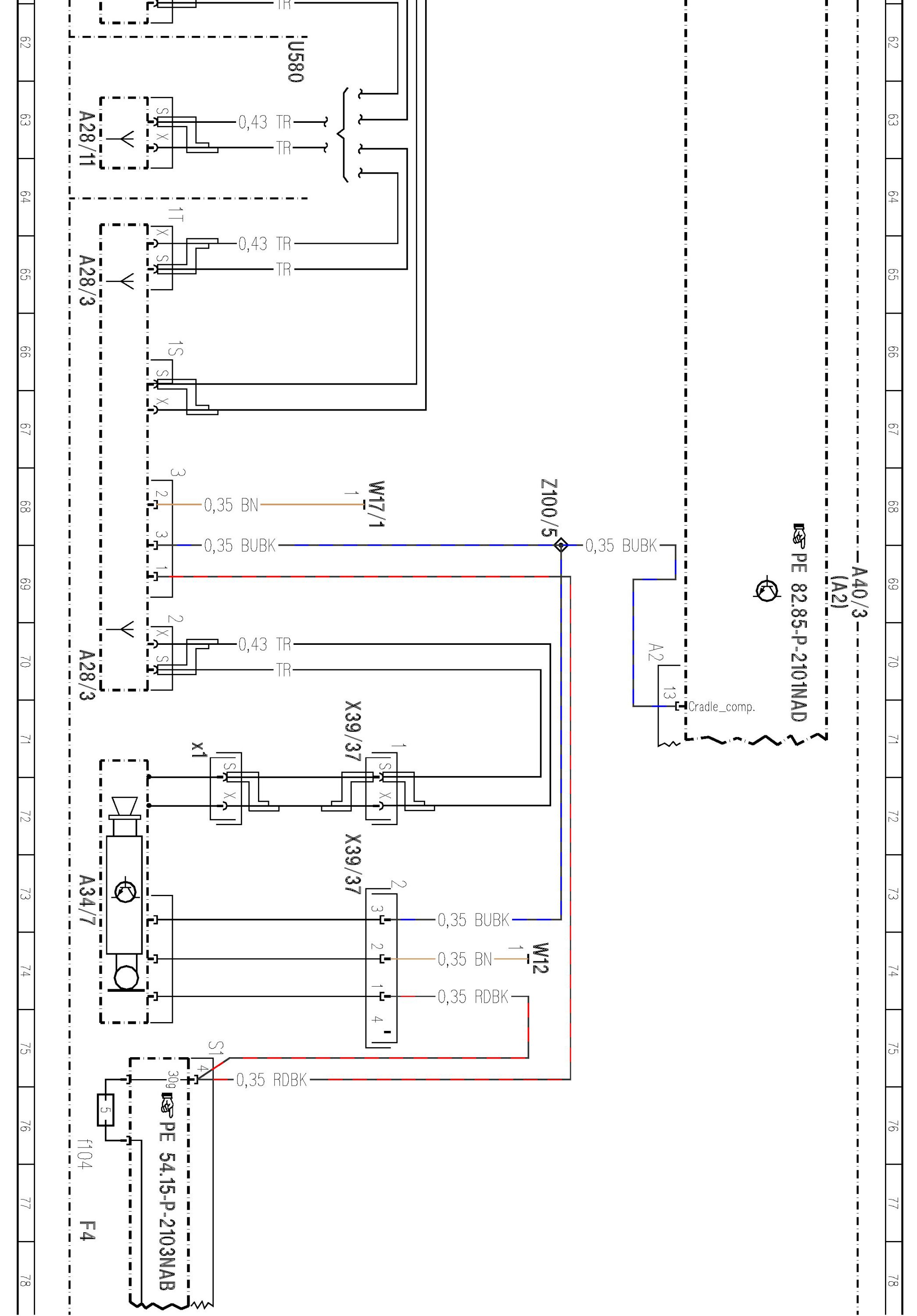

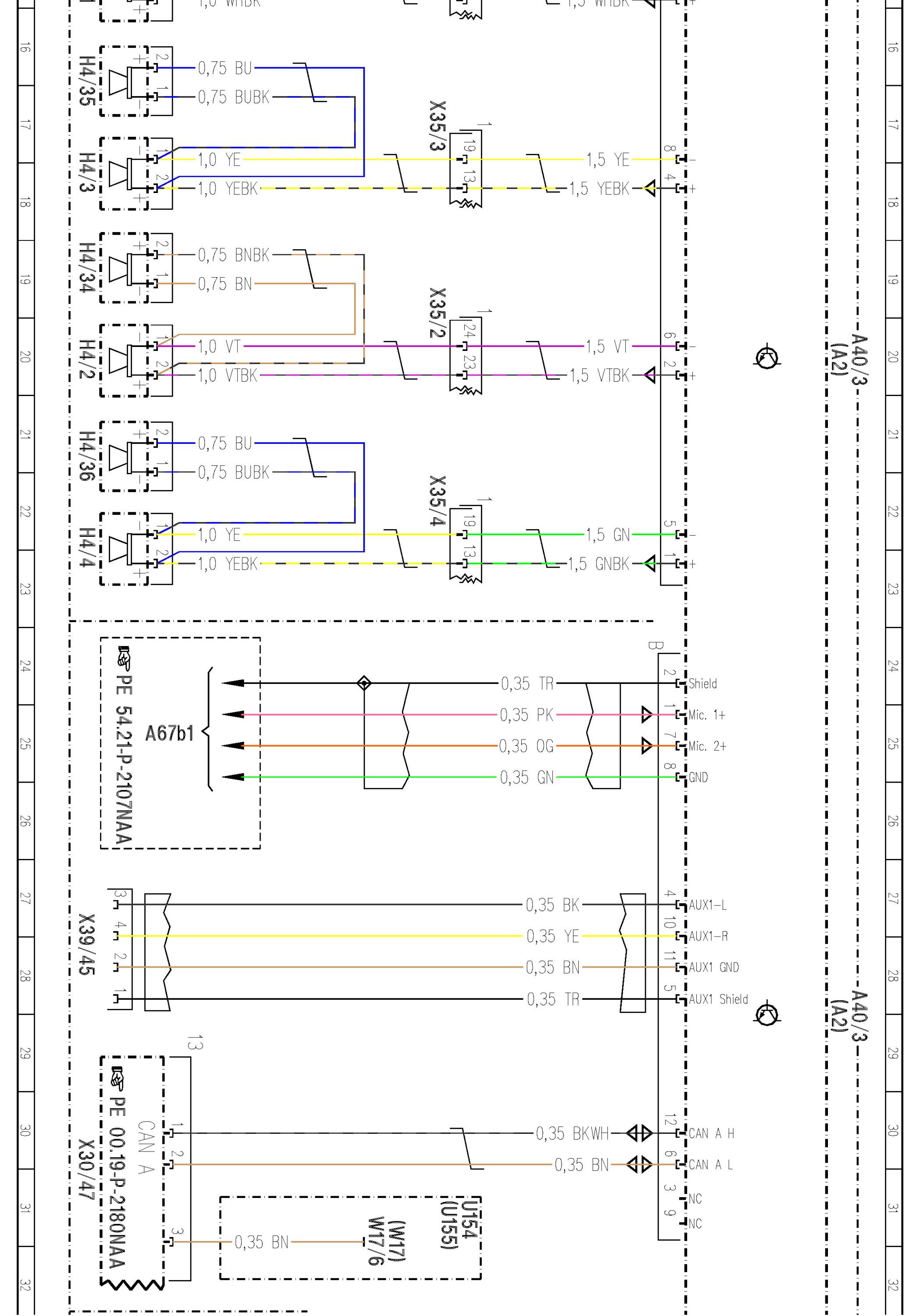

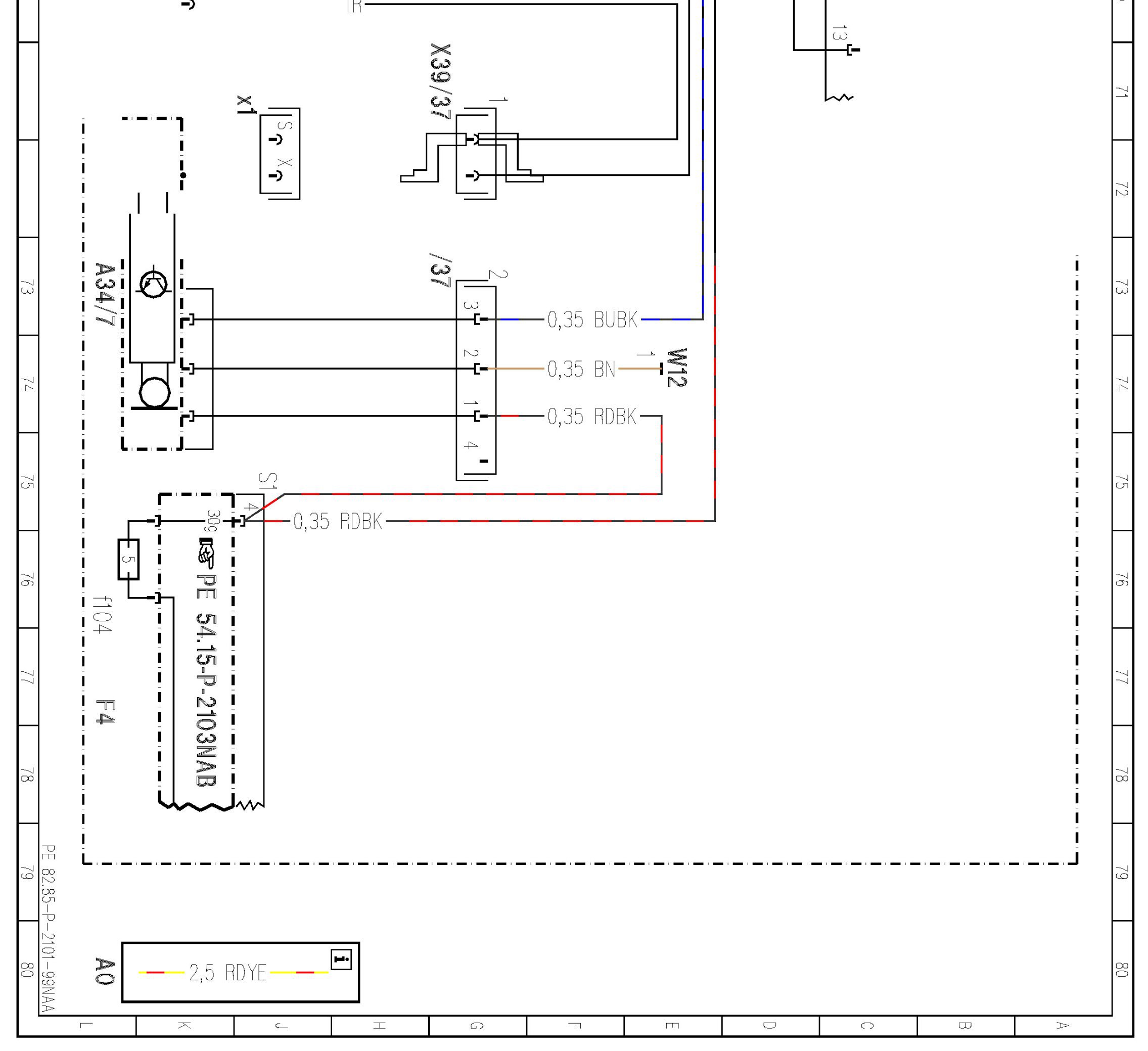

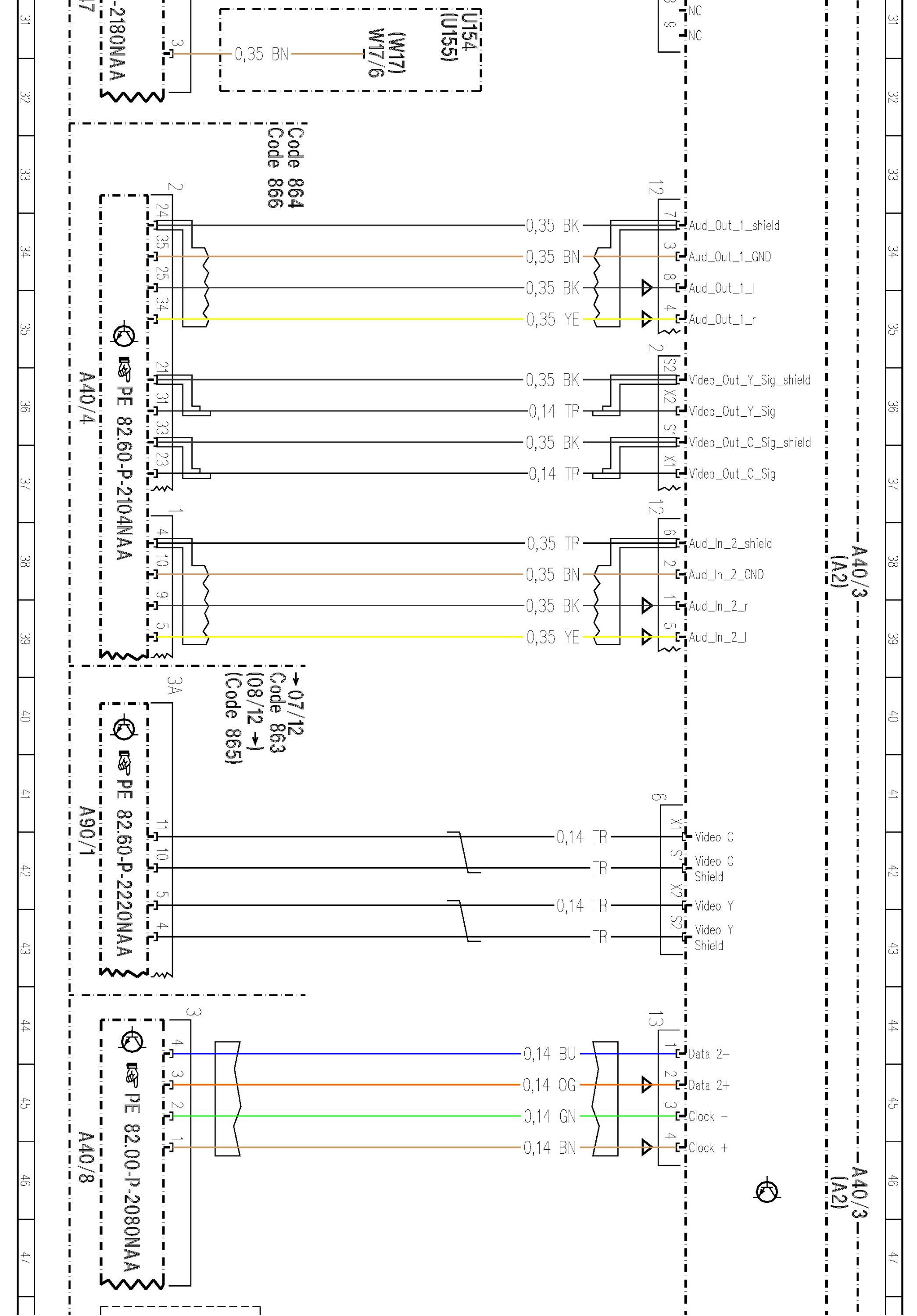

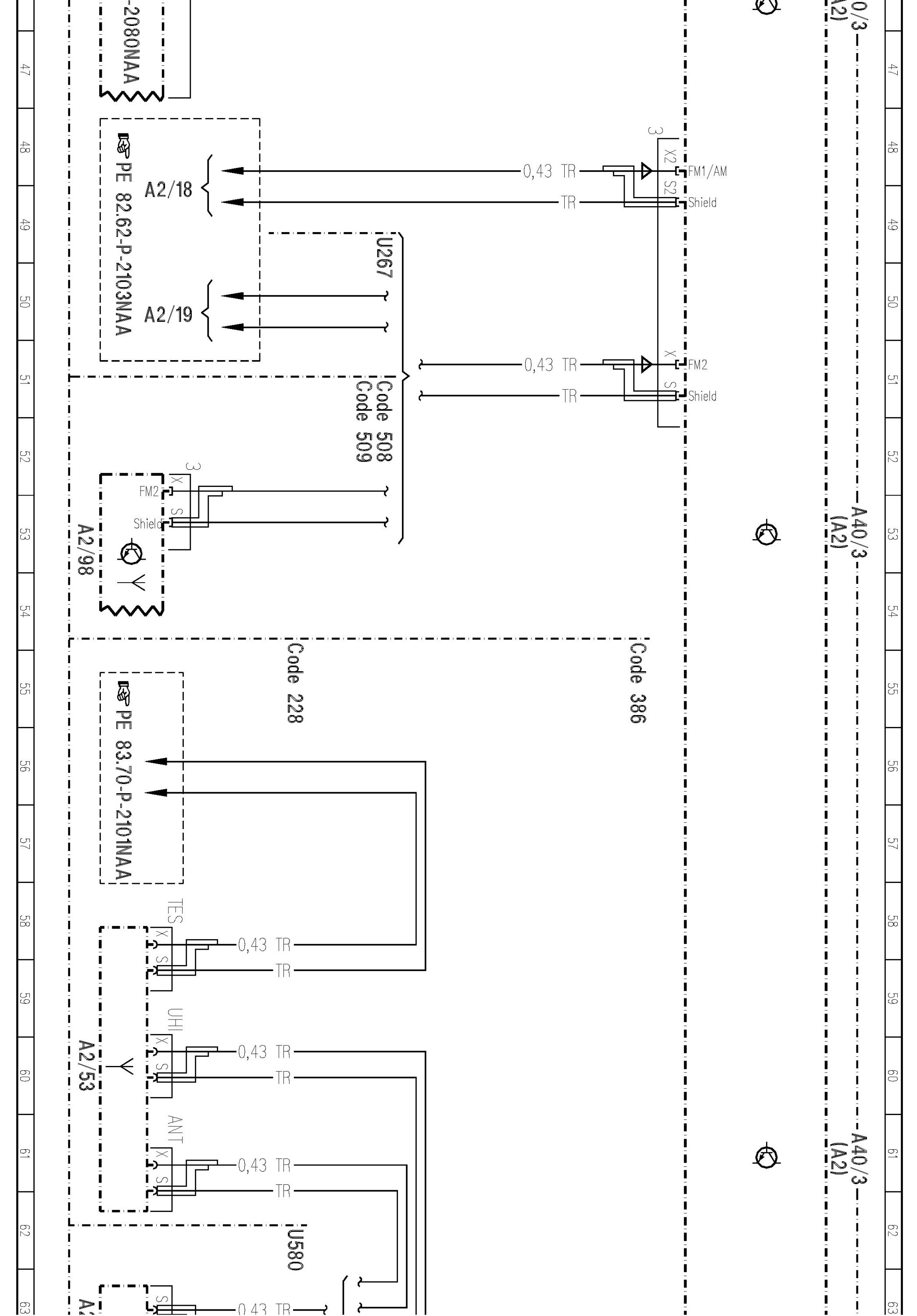

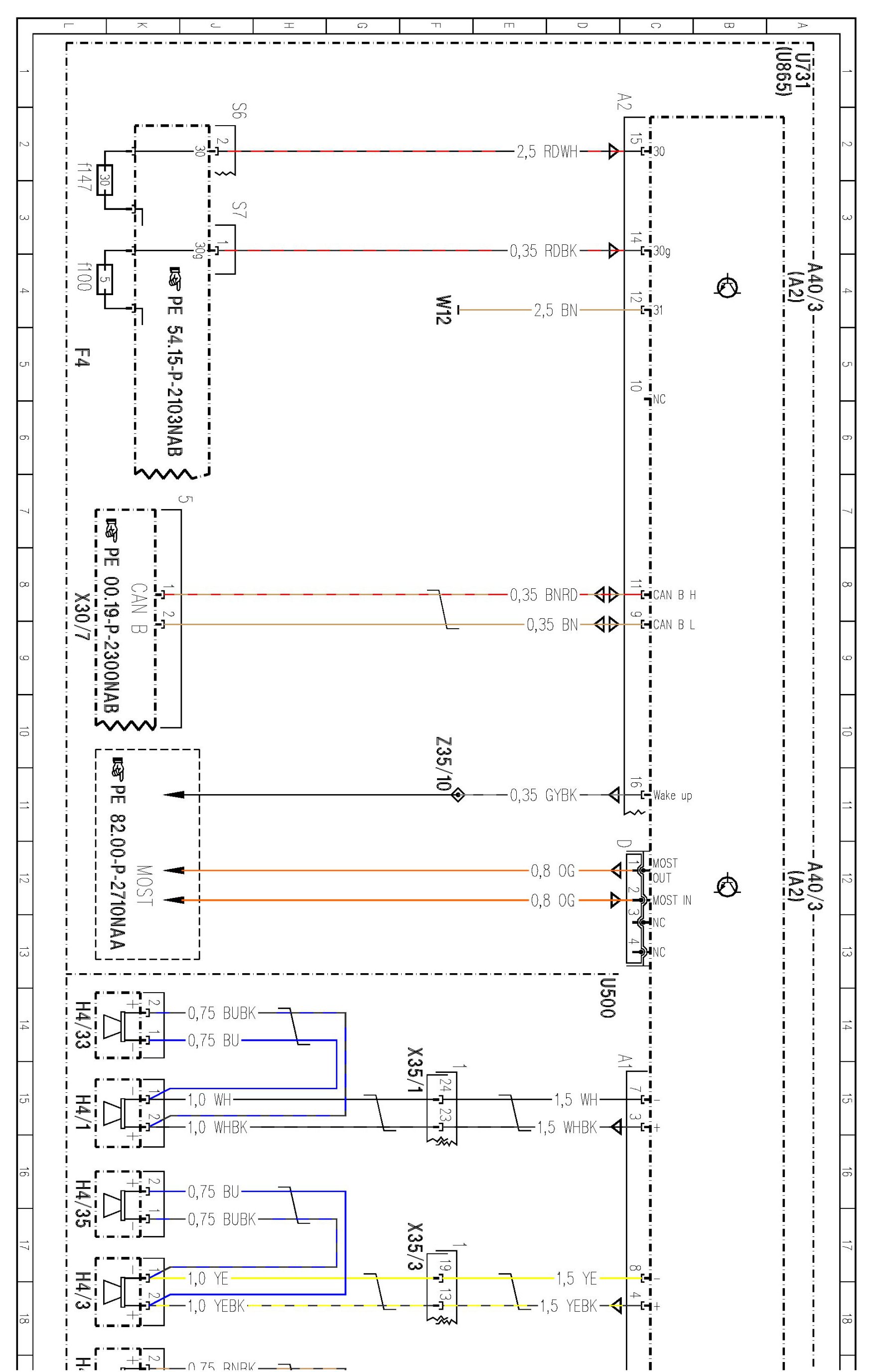

PE82.85-P-2101NAA Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101NAA Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram
MODEL 166
- except CODE (494) USA version
- except CODE (498) Japan version
- with CODE (512) COMAND APS With DVD Changer
- with CODE (527) COMAND APS


































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
