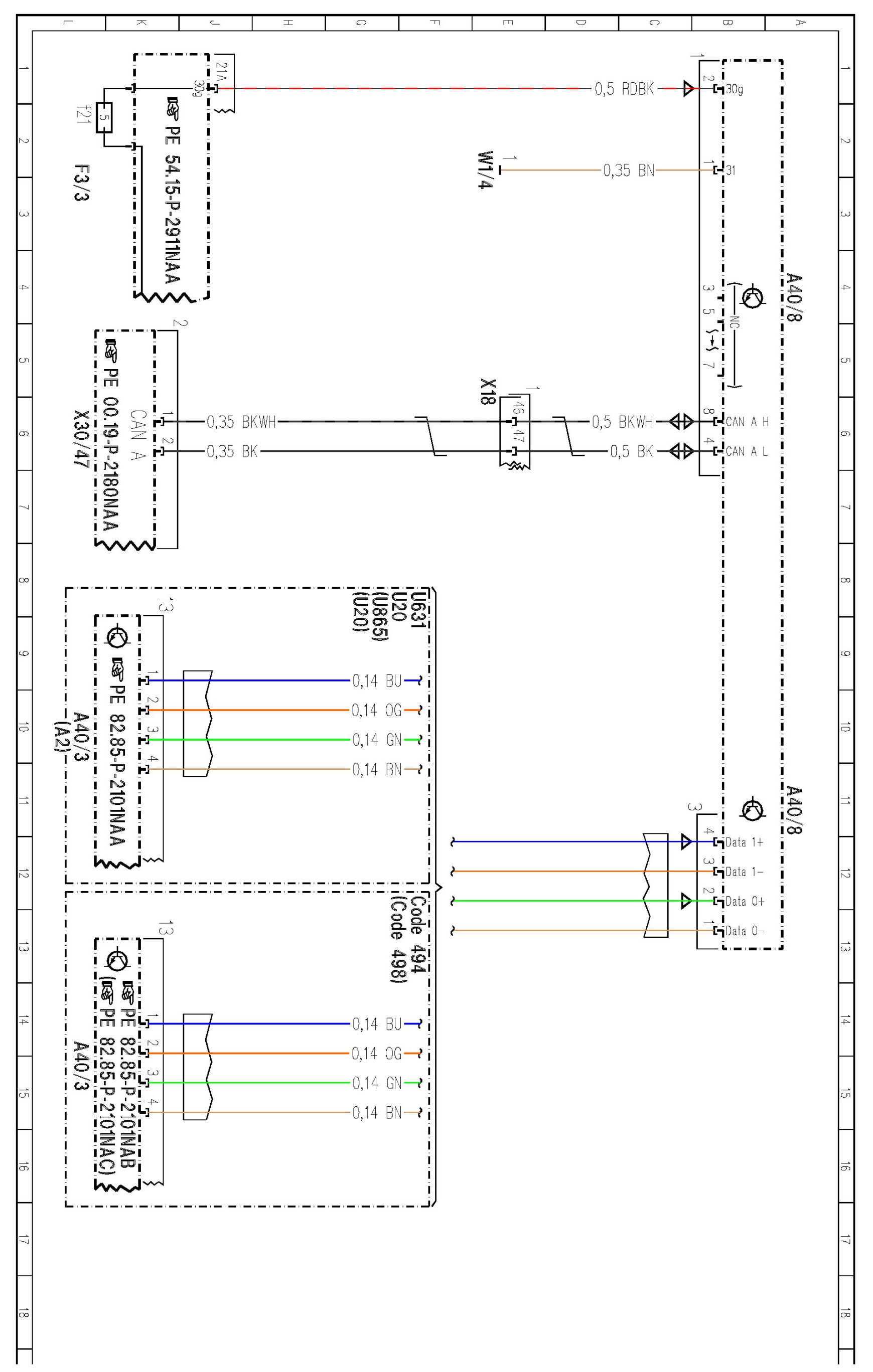

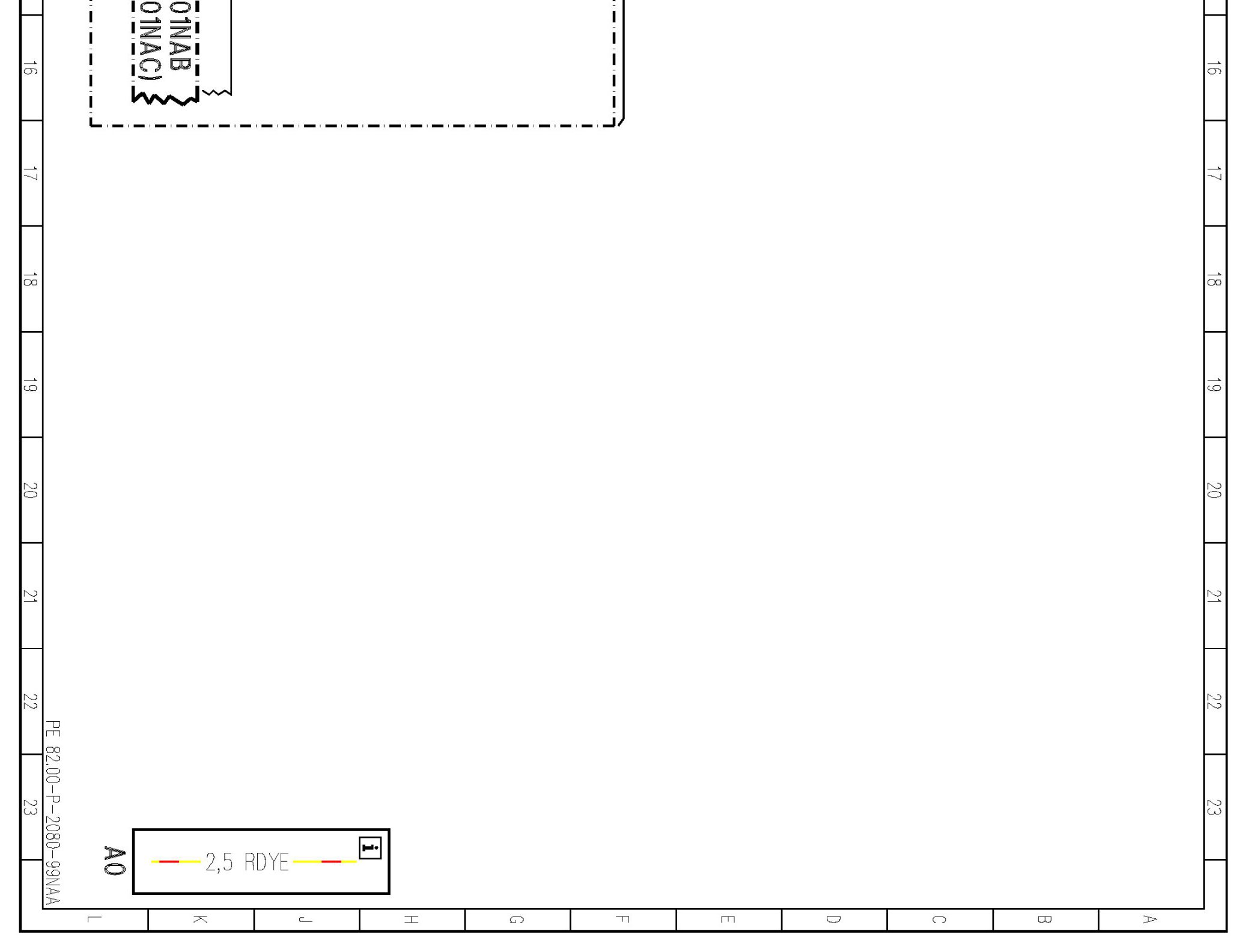

PE82.00-P-2080NAA Audio/COMAND Display



PE82.00-P-2080NAA Audio/COMAND Display
MODEL 166

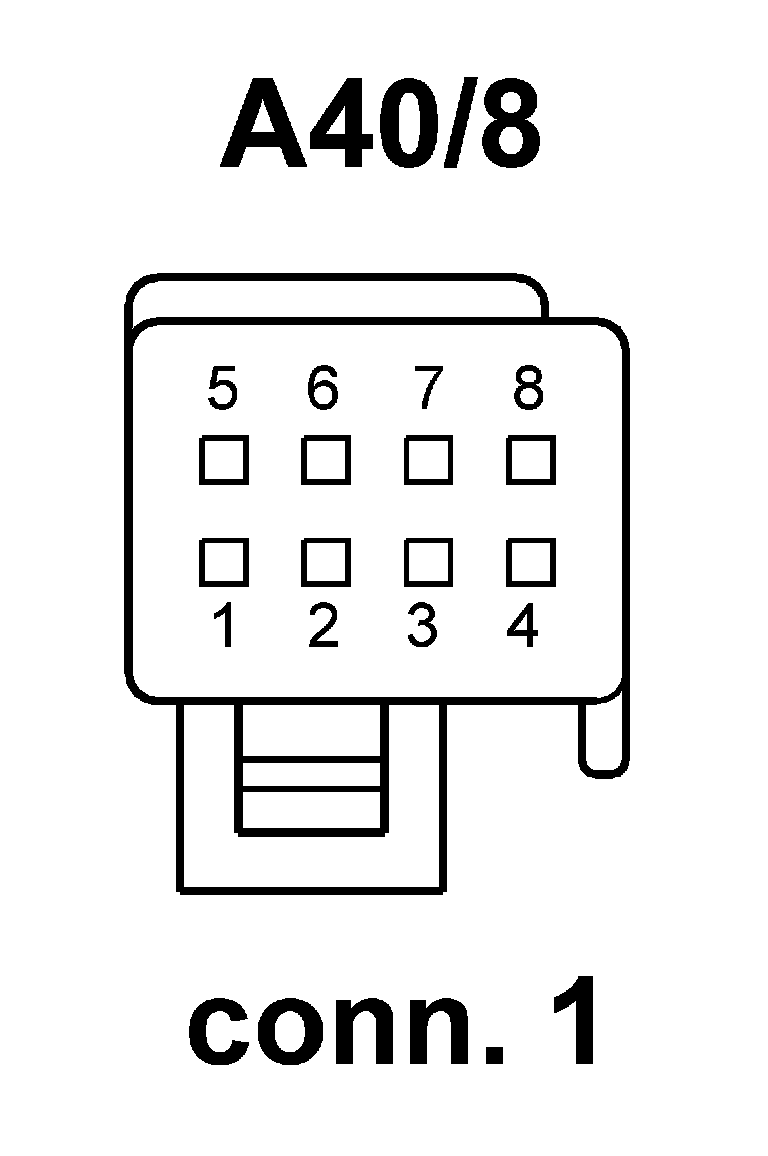

- Control Unit A40/8


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
