Alternator: Service and Repair

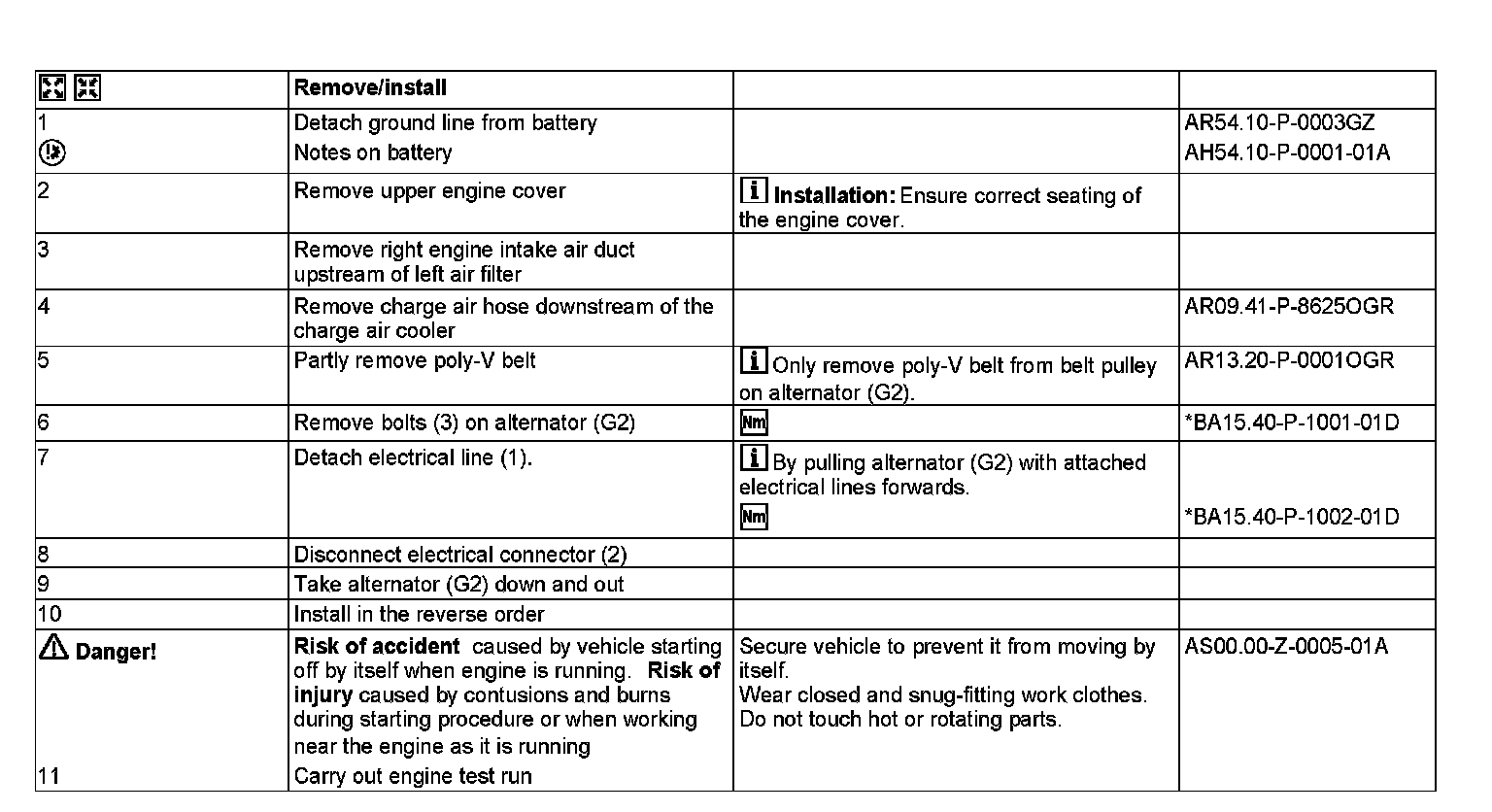

AR15.40-P-5032OGR Remove/Install Alternator
ENGINES 642 in MODEL 166.0





1 Electrical line
2 Electrical connector
3 Bolts

G2 Alternator
