Turbo Boost Sensor: Service and Repair

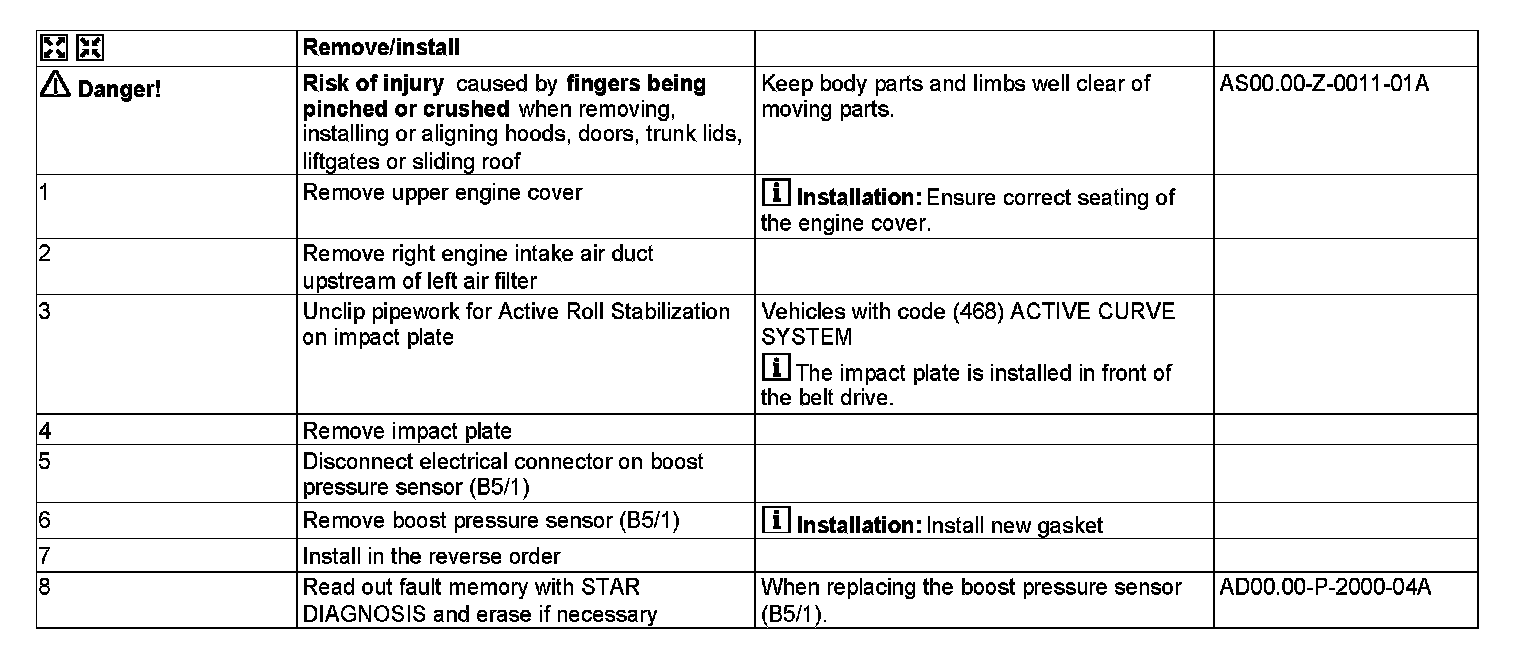

AR09.41-P-2006OGR Remove/Install Boost Pressure Sensor
ENGINES 642 in MODEL 166.0

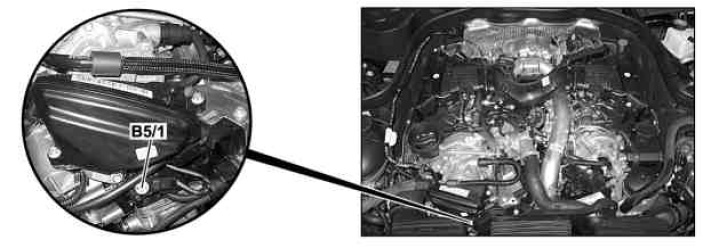

B5/1 Boost pressure sensor
