Oil Temperature Sensor/Switch: Service and Repair

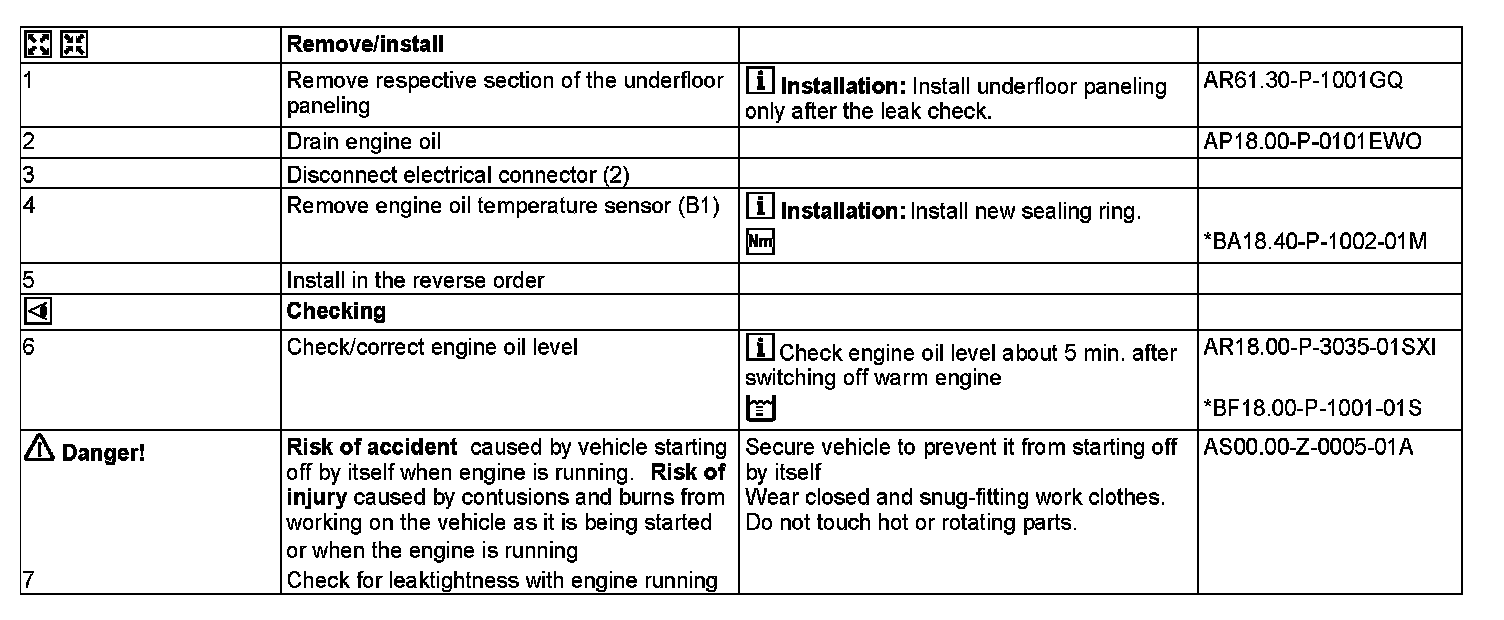

AR18.40-P-4123OGR Remove/Install Sensor For Engine Oil Temperature
ENGINES 642 in MODEL 166.0

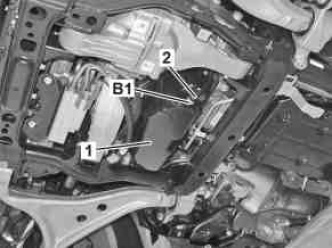

1 Oil pan bottom section
2 Electrical connector

B1 Engine oil temperature sensor
