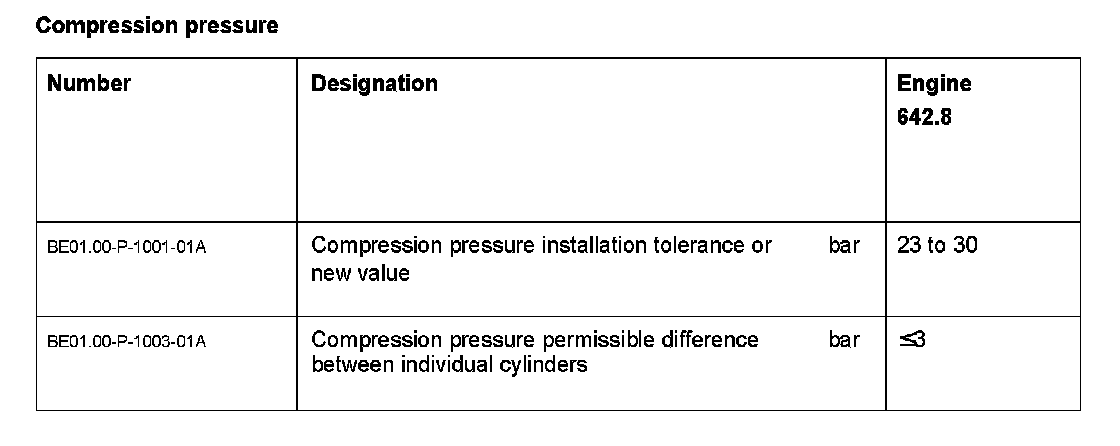

AR01.00-P-1200OGR Test Compression Pressure




AR01.00-P-1200OGR Test Compression Pressure
ENGINES 642 in MODEL 166.0

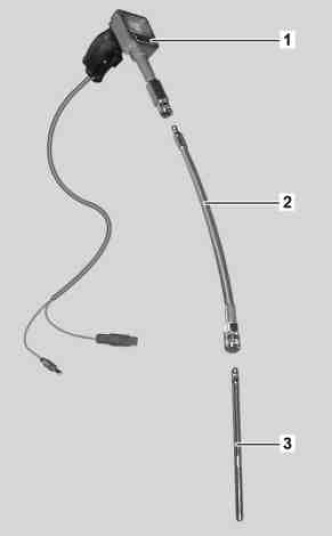

1 Compression tester
2 Intermediate piece
3 Screw-in fitting











611 589 02 63 00
Intermediate piece





001 589 76 21 00
Compression tester





611 589 01 63 00
Screw-in fitting
