Variable Induction Control Actuator: Service and Repair

AR09.20-P-1314OGR Remove/Install Intake Port Shutoff
ENGINES 642 in MODEL 166.0

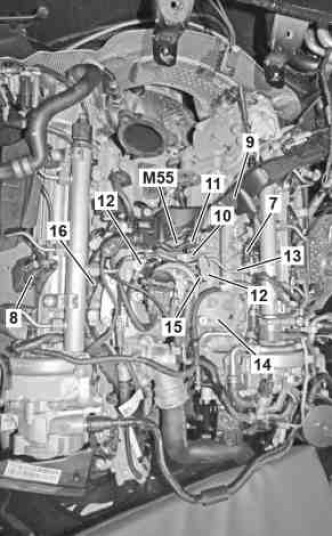

7 Electrical connector
8 Electrical connector
9 Cable duct
10 Bracket
11 Electrical connector
12 Screw/bolts
13 Connecting line
14 Charge air manifold
15 Cage
16 Engine wiring harness

M55 Intake port shutoff actuator motor





17 Screw/bolt
18 Clamp
19 Linkage for intake port shutoff on the left
20 Clip
21 Linkage for intake port shutoff on the right
22 Control lever

M55 Intake port shutoff actuator motor














129 589 00 91 00
Set of stop plugs





611 589 00 37 00
Pliers
