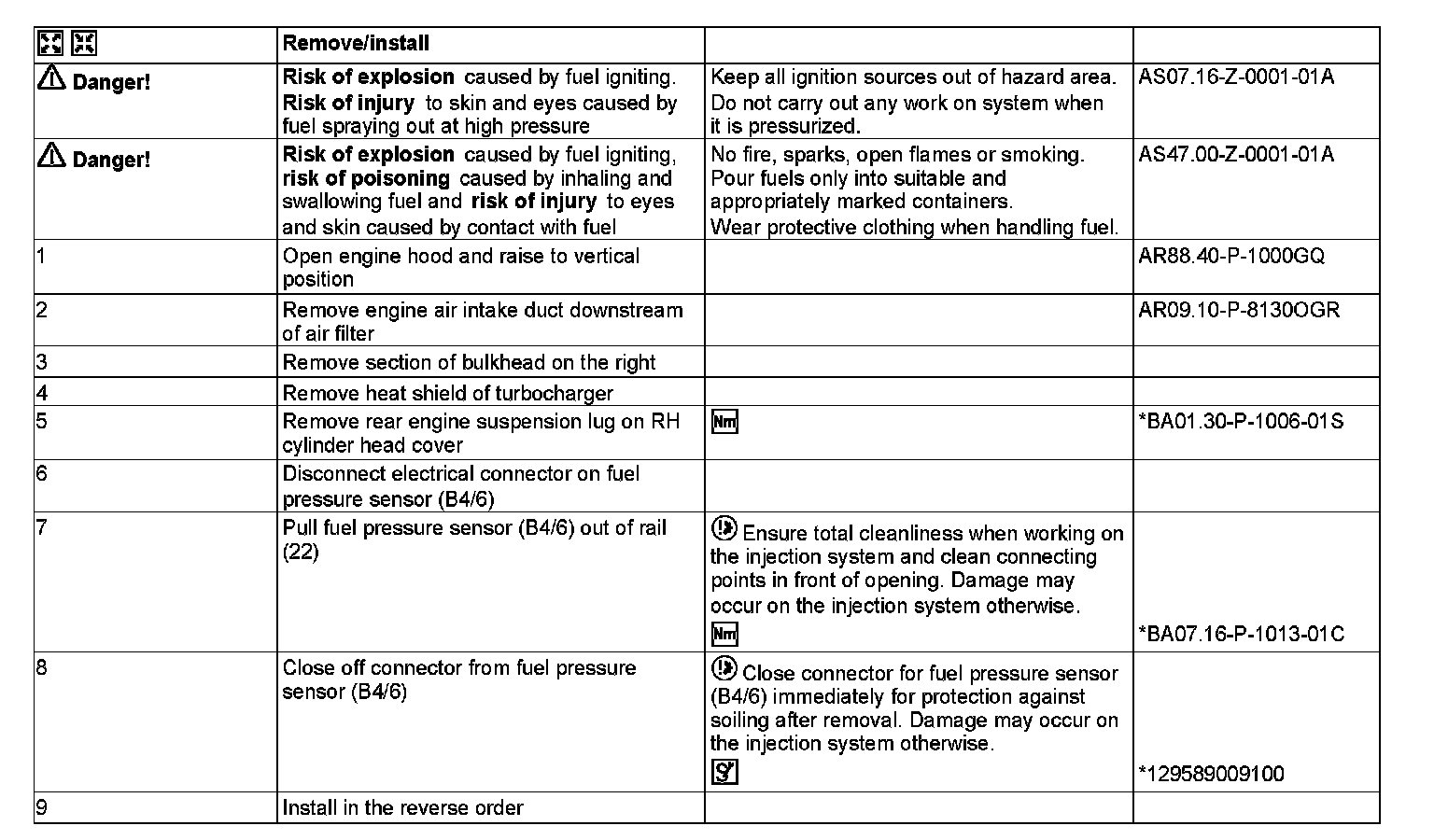

AR07.16-P-1055OGR Remove/Install Rail Pressure Sensor




AR07.16-P-1055OGR Remove/Install Rail Pressure Sensor
ENGINES 642 in MODEL 166.0

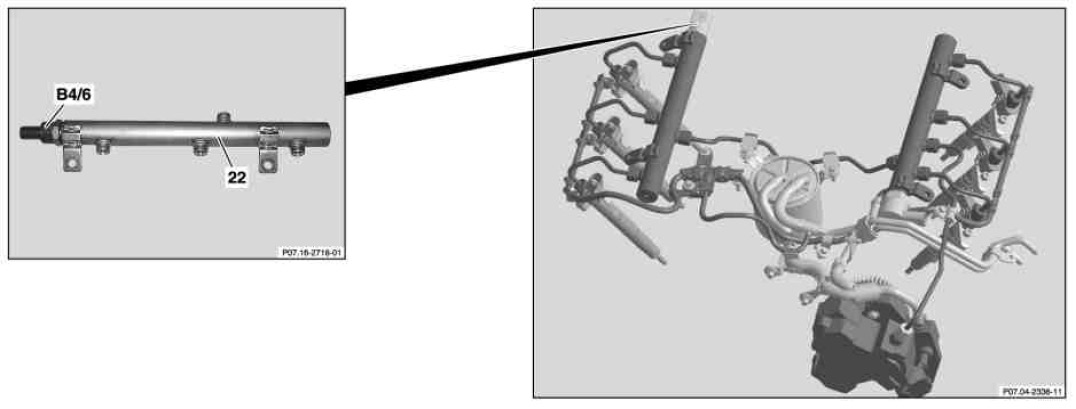

22 Rail

B4/6 Fuel pressure sensor














129 589 00 91 00
Set of stop plugs
