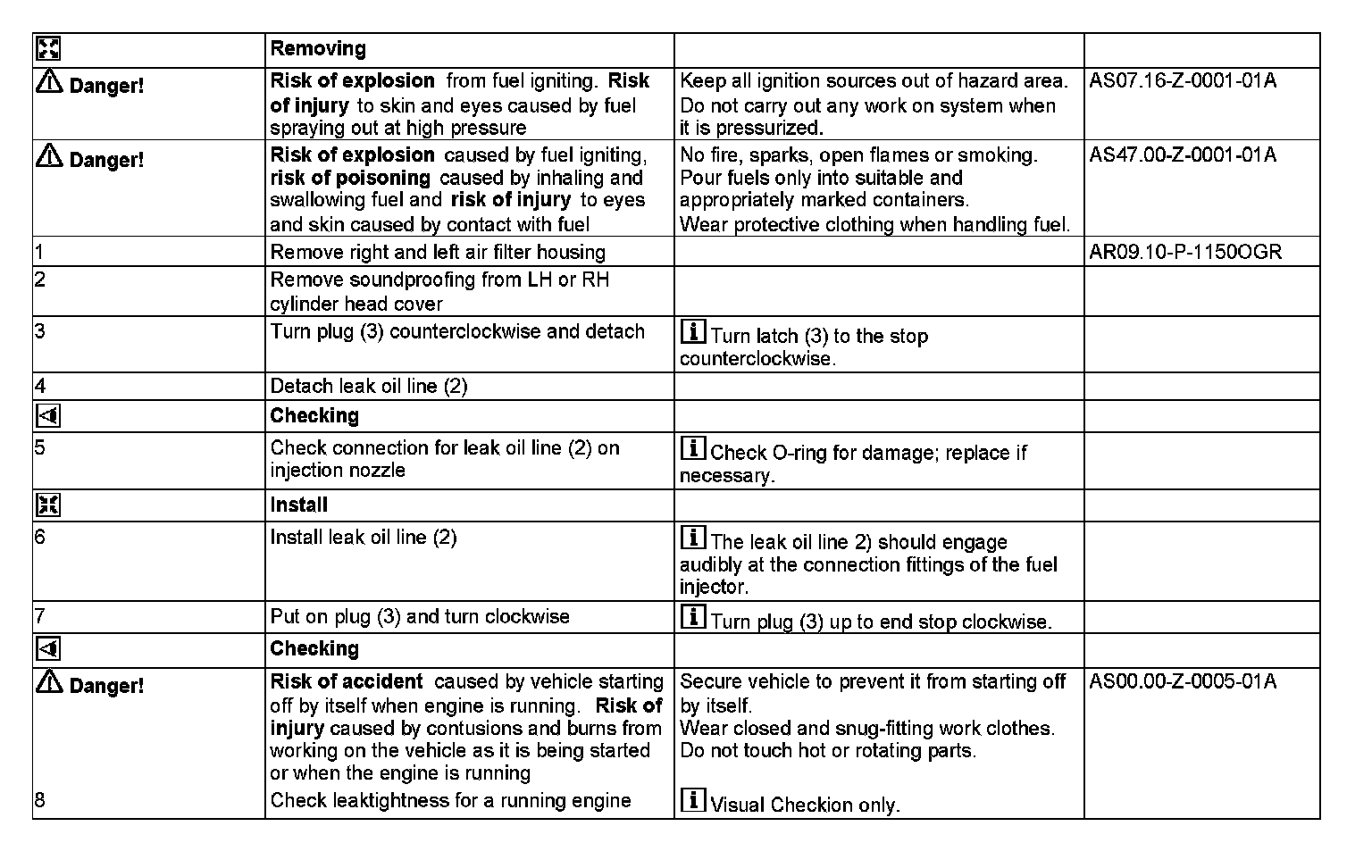

AR07.03-P-9105OGR Remove/Install Leak Oil Line to Injectors




AR07.03-P-9105OGR Remove/Install Leak Oil Line to Injectors
ENGINES 642 in MODEL 166.0

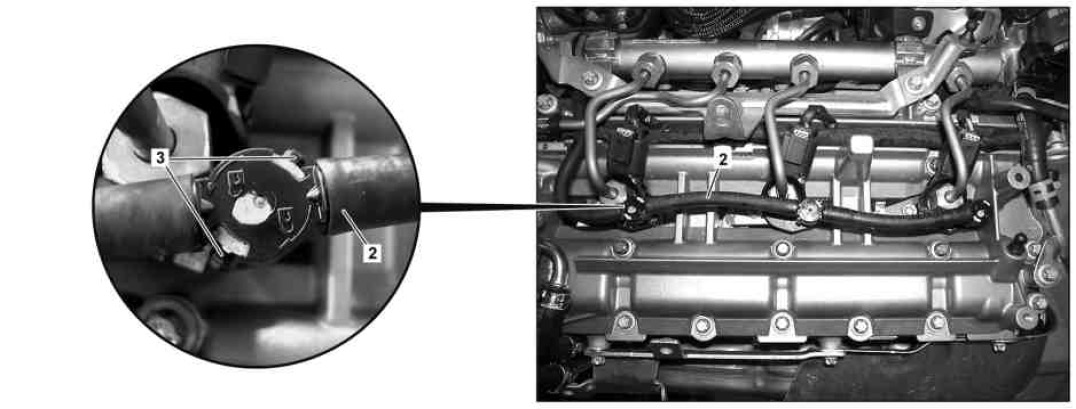

2 Leak oil line
3 Latch
