Catalytic Converter: Service and Repair

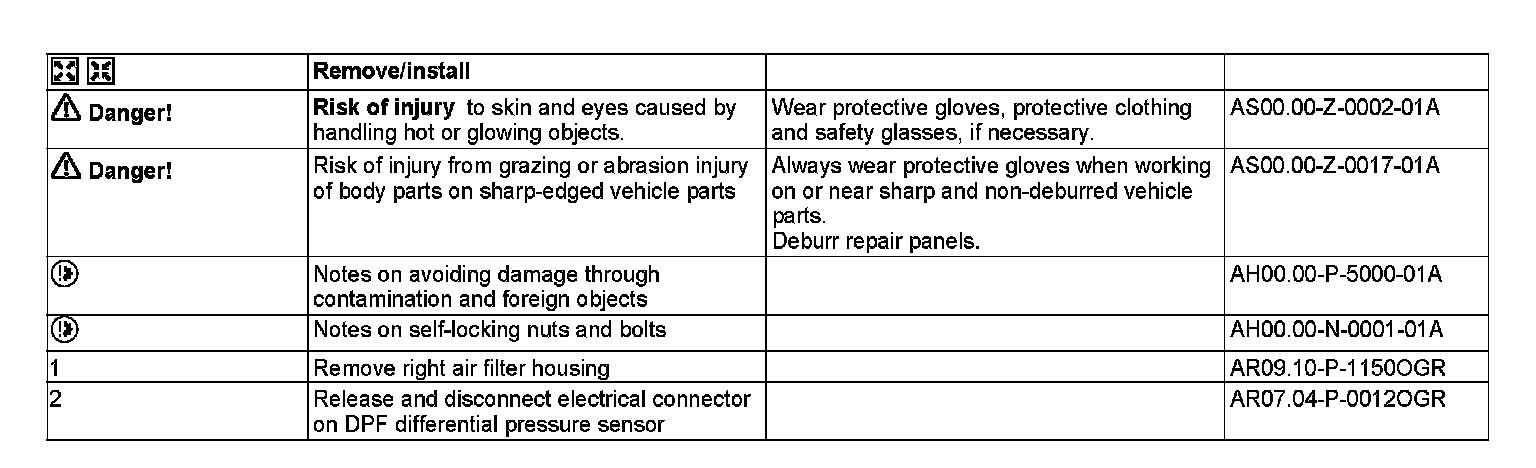

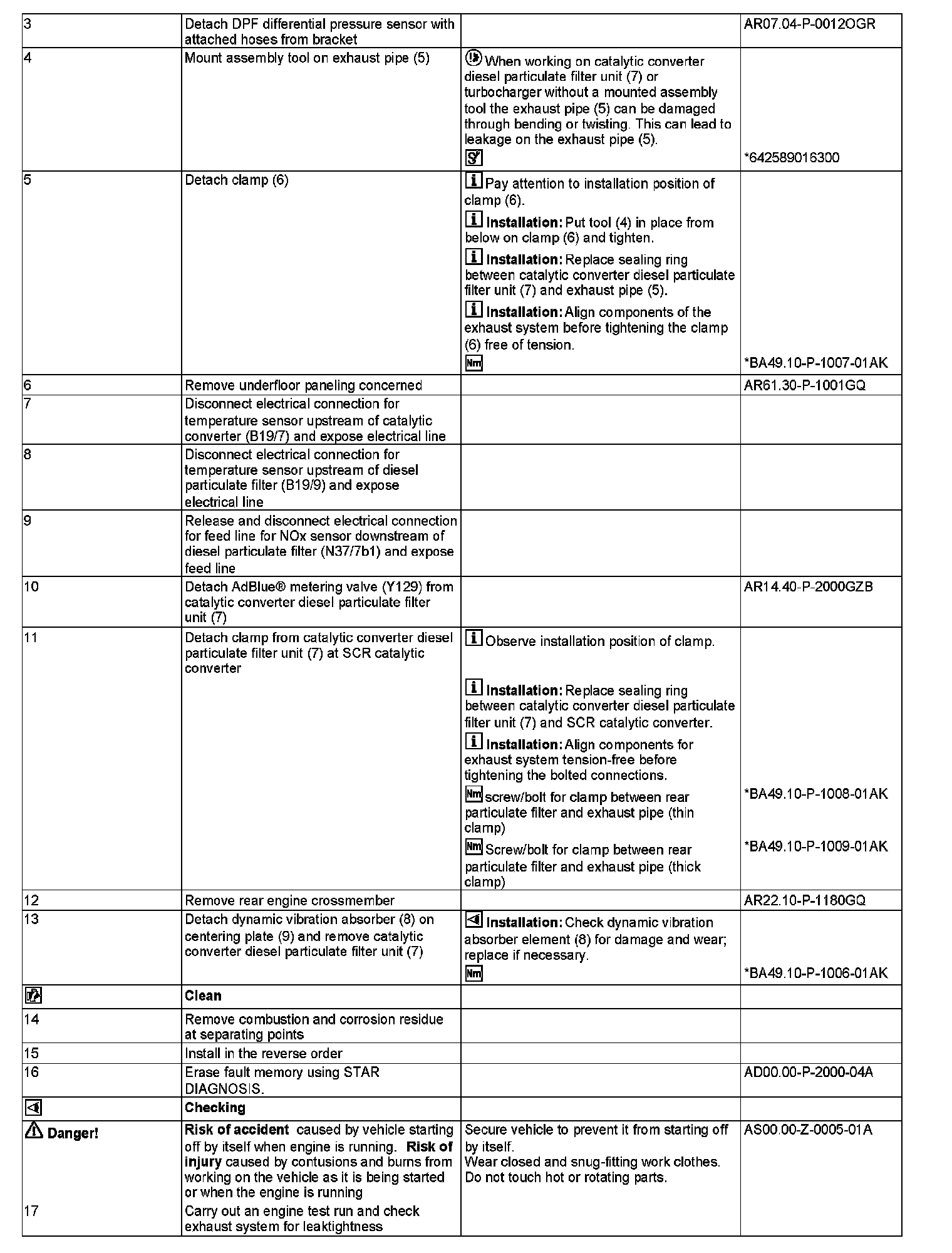

AR49.10-P-5501OGR Remove/Install Catalytic Converter Diesel Particulate Filter Unit
ENGINES 642 in MODEL 166.0

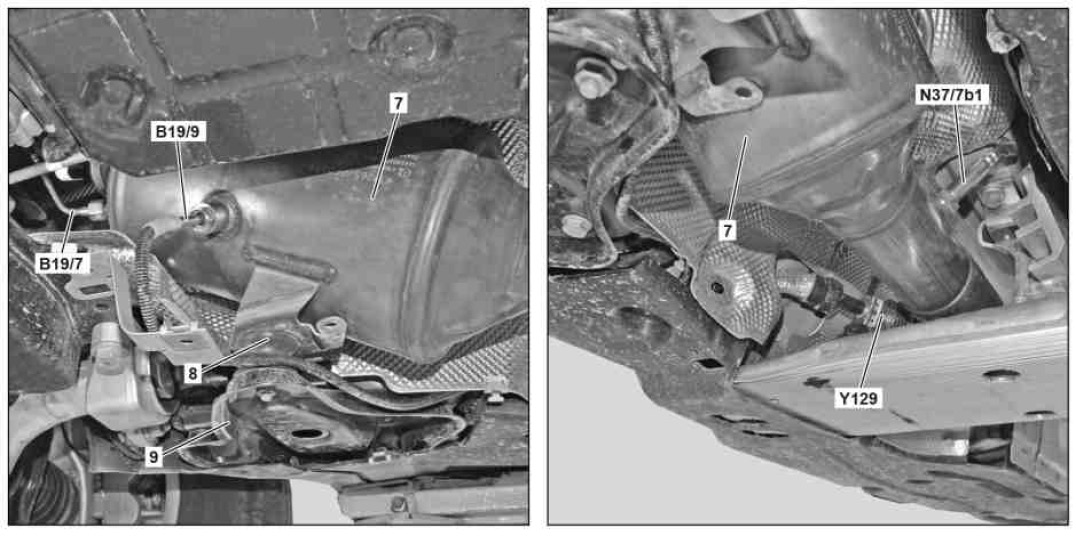

7 Catalytic converter diesel particulate filter unit
8 Dynamic vibration absorber
9 Centering panel
B19/7 Temperature sensor upstream of catalytic converter
B19/9 Temperature sensor upstream of diesel particulate filter
N37/7b1 NOx sensor downstream of diesel particulate filter
Y129 AdBlue(R) metering valve

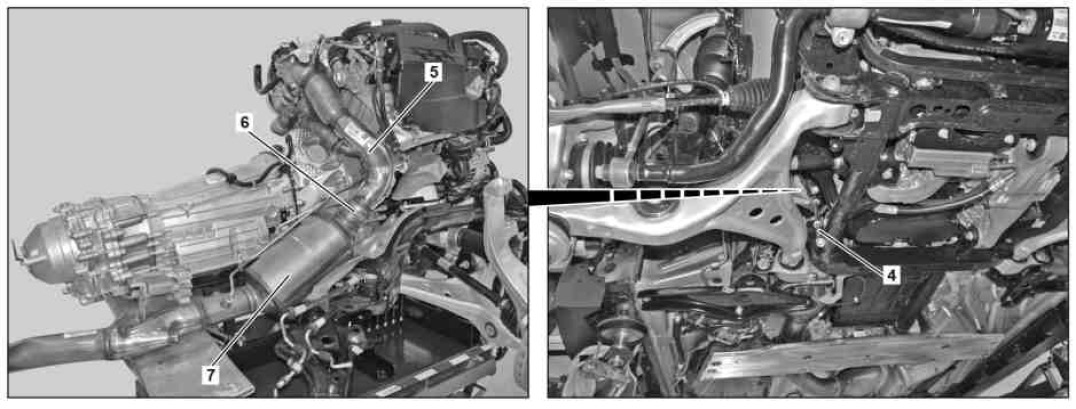

4 Tool
5 Exhaust pipe
6 Clamp
7 Catalytic converter diesel particulate filter unit














642 589 01 63 00
Assembly tool
