Fuel Level Sensor: Service and Repair

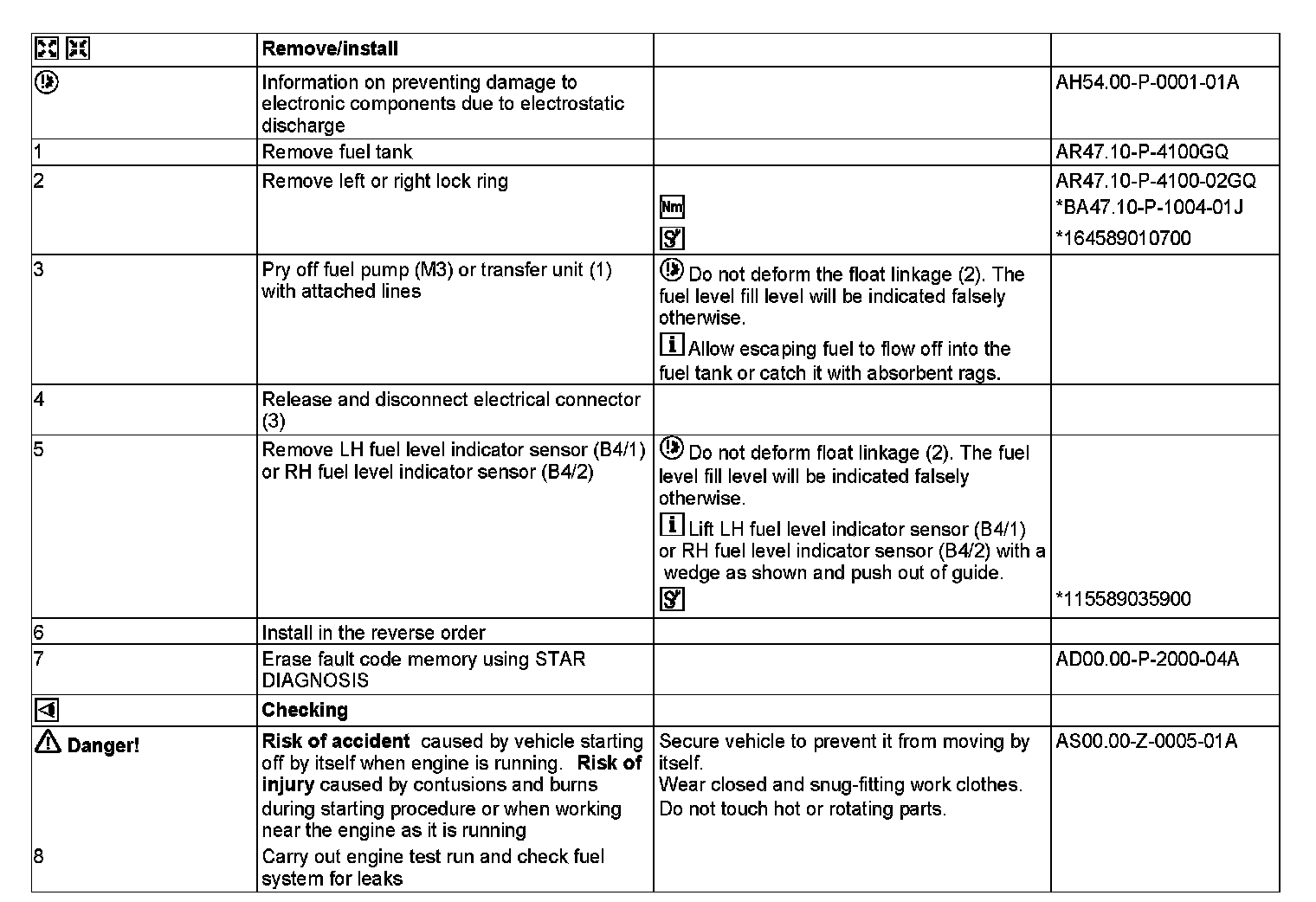

AR47.10-P-7000GQ Remove/Install Fuel Level Sensor
MODEL 166 with ENGINE 276, 642, 651

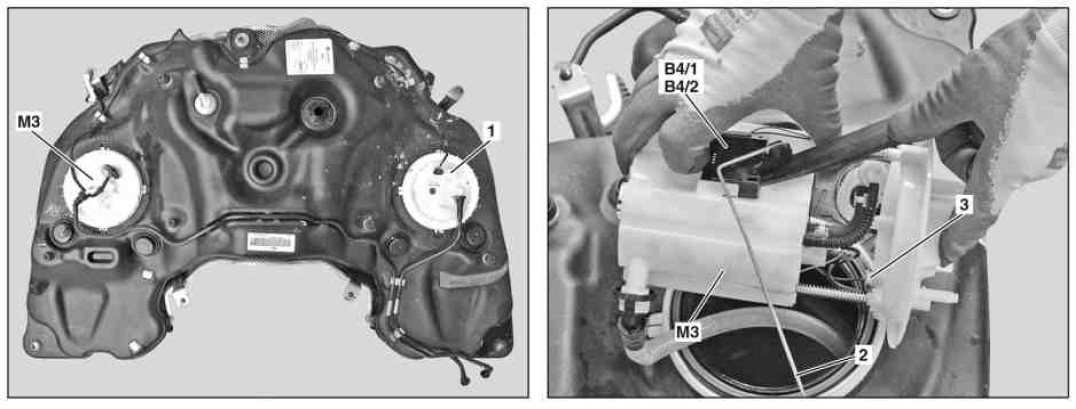

Shows model 166.024

1 Transfer unit
2 Float linkage
3 Electrical connector

B4/1 Left fuel level indicator sensor
B4/2 Right fuel level indicator sensor
M3 Fuel pump











164 589 01 07 00
Claw-type wrench





115 589 03 59 00
Long wedge
