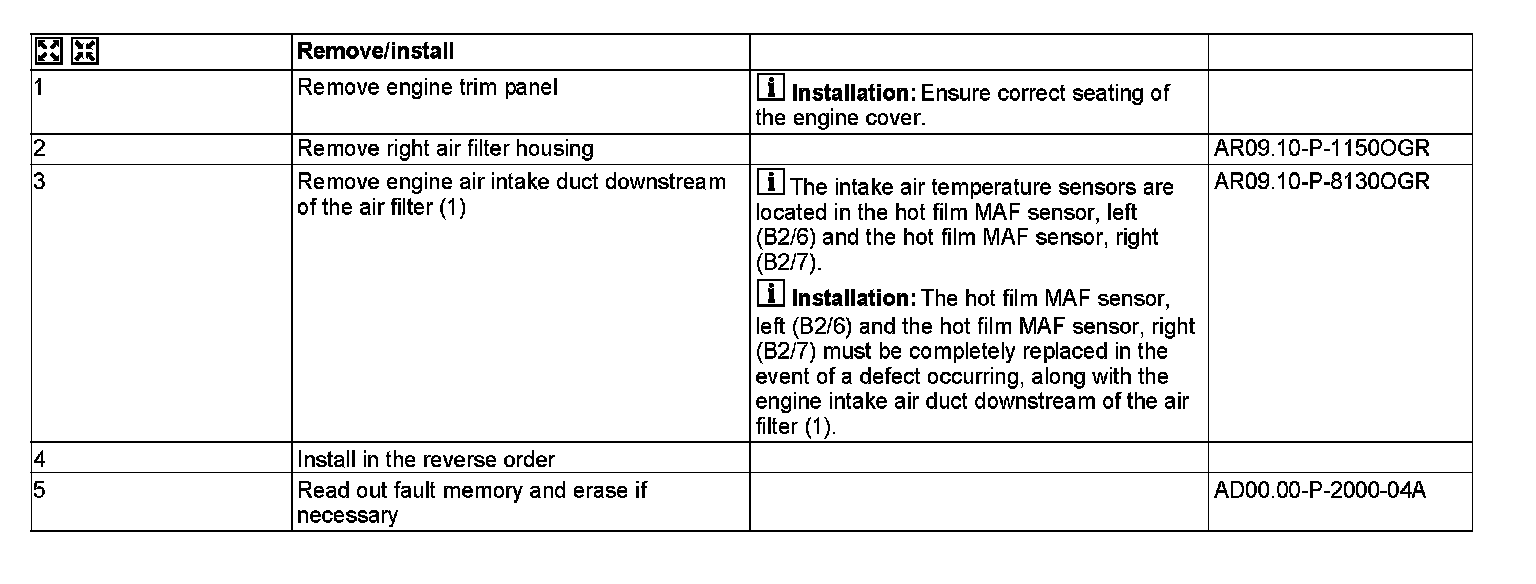

AR07.52-P-1465OGR Remove/Install Intake Air Temperature Sensor

AR07.52-P-1465OGR Remove/Install Intake Air Temperature Sensor
ENGINES 642 in MODEL 166.0

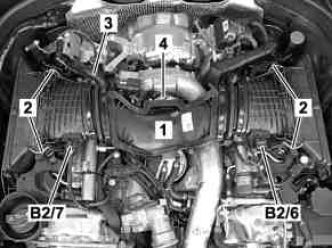

Illustrated on model 212.020

1 Engine air intake duct downstream of air filter

B2/6 Left hot film MAF sensor
B2/7 Right hot film MAF sensor
