AR01.40-P-8000OGR Remove/Install Timing Case Cover

AR01.40-P-8000OGR Remove/Install Timing Case Cover
ENGINES 642 in MODEL 166.0

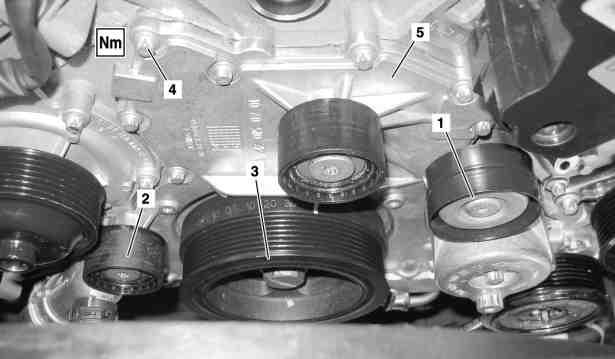

1 Poly-V belt tensioning device
2 Lower guide pulley
3 Belt pulley/vibration damper
4 Screw/bolts
5 Timing case cover








5 Timing case cover
6 Fitting sleeves














642 589 00 14 00
Centering sleeve
