Timing Chain: Testing and Inspection

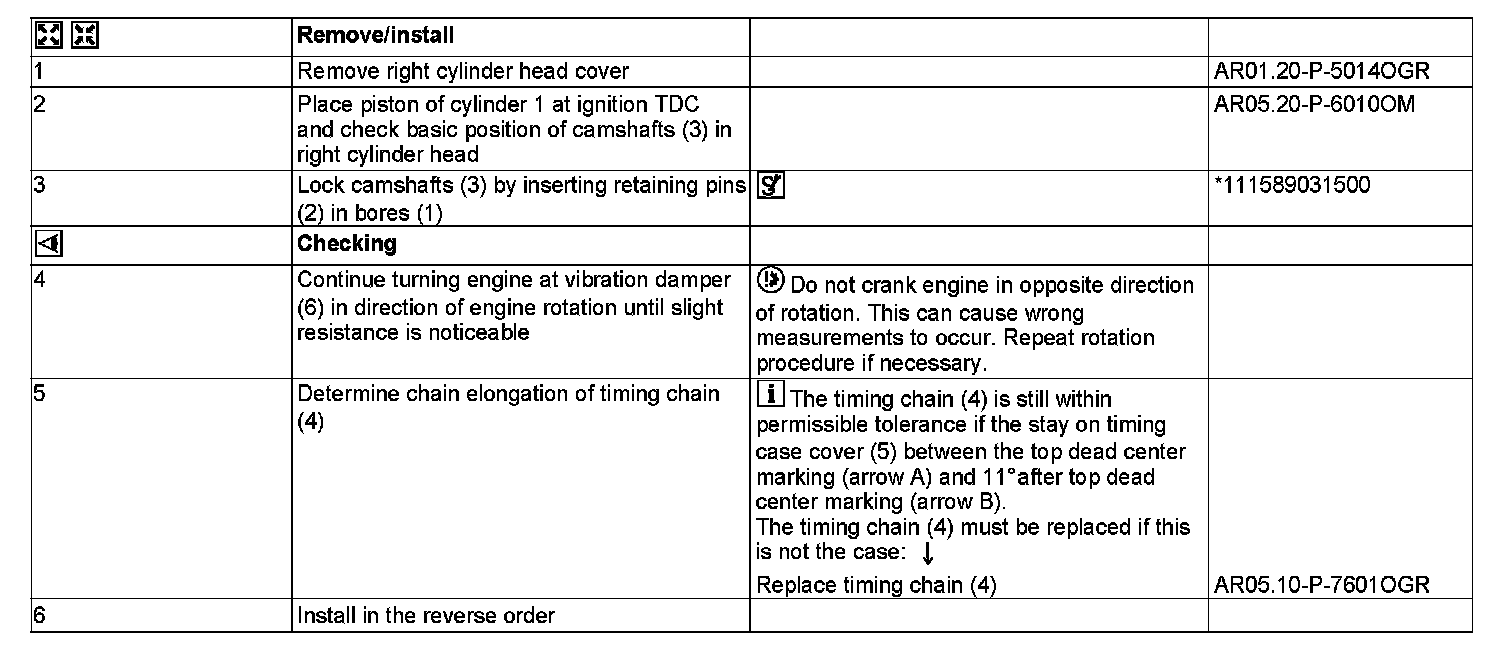

AR05.10-P-7600OGR Check Timing Chain
ENGINES 642 in MODEL 166.0





1 Holes
2 Retaining pin
3 Camshafts
4 Timing chain
5 Timing case cover
6 Vibration damper

Arrow A Top dead center (TDC) marking
Arrow B 11° after top dead center marking








111 589 03 15 00
Retaining pins
