Timing Chain: Service and Repair

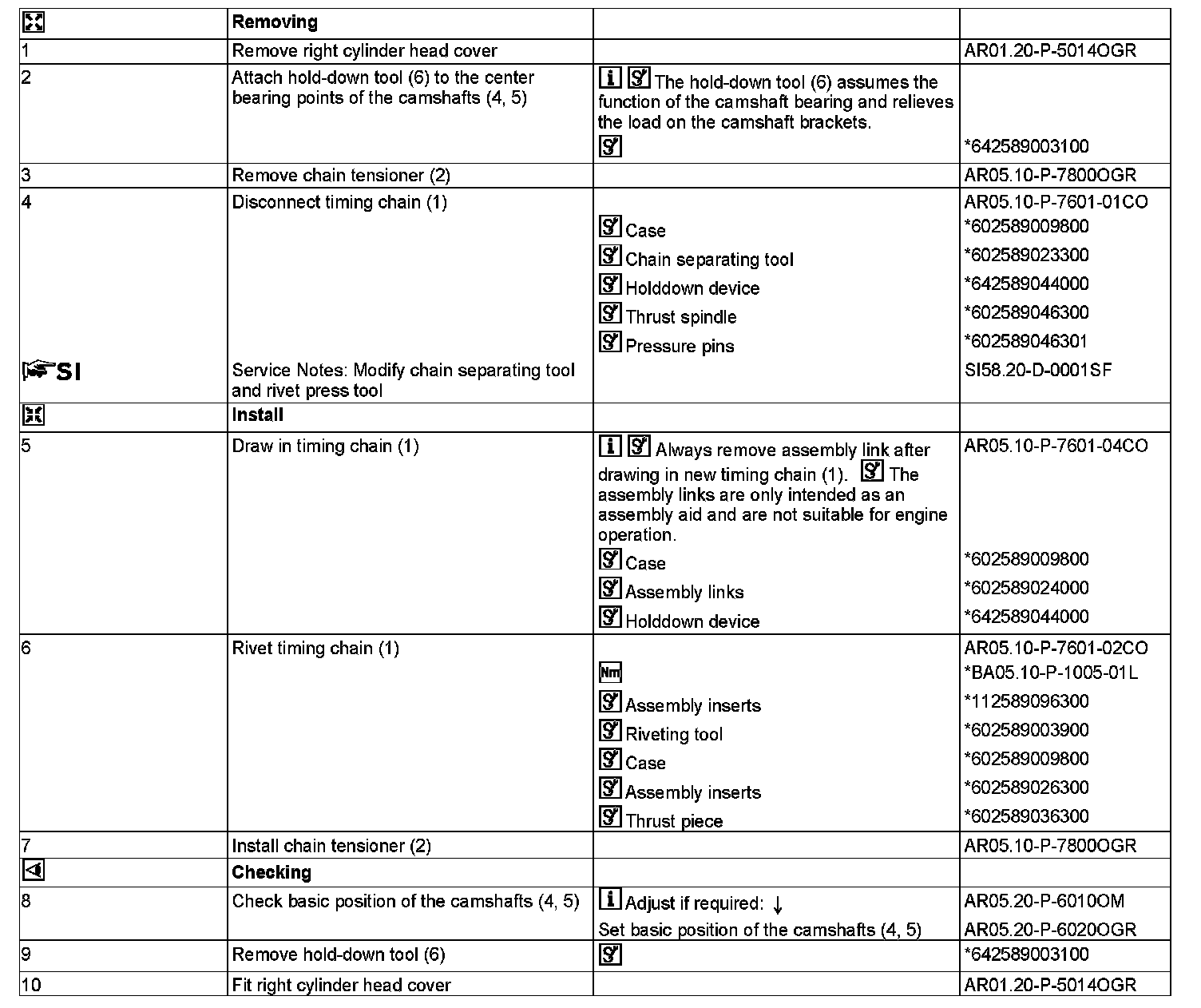

AR05.10-P-7601OGR Replace Timing Chain
ENGINES 642 in MODEL 166.0

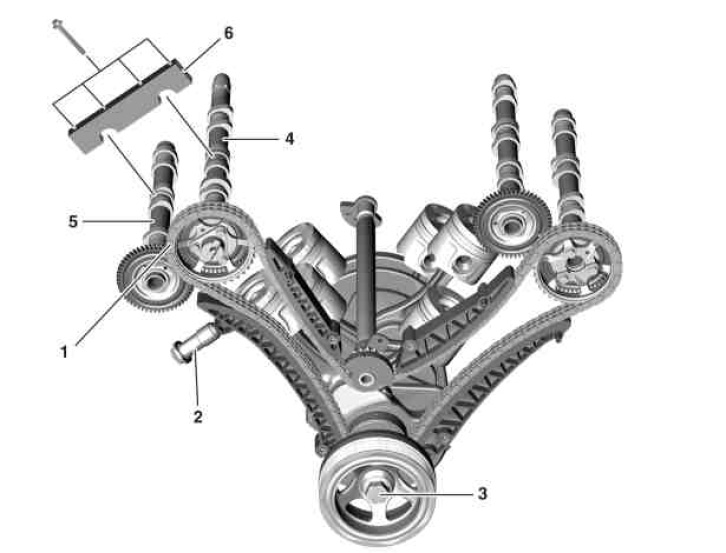

1 Timing chain
2 Chain tensioner

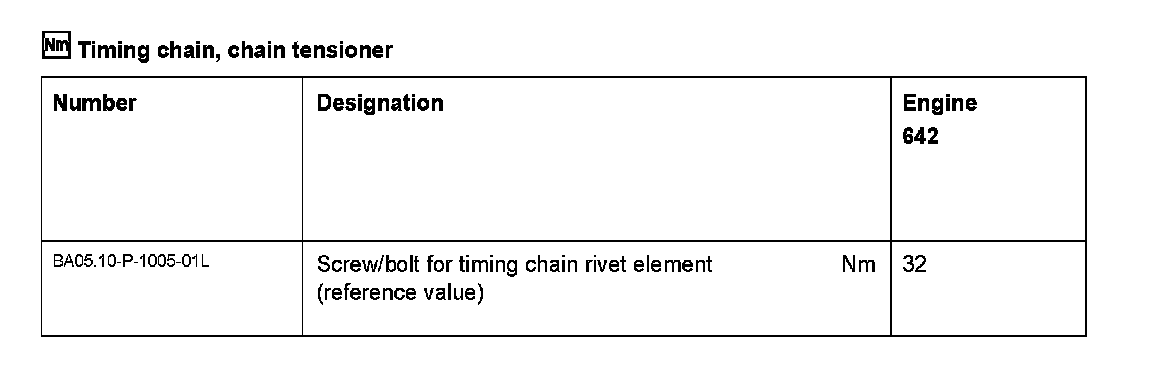

3 Screw/bolt
4 Camshaft
5 Camshaft
6 Holddown device











112 589 09 63 00
Assembly inserts





602 589 00 39 00
Riveting tool





602 589 00 98 00
Case





602 589 02 33 00
Chain separating tool





602 589 02 40 00
Assembly links





602 589 02 63 00
Assembly inserts





602 589 03 63 00
Thrust piece





602 589 04 63 00
Thrust spindle





602 589 04 63 01
Thrust pins





642 589 00 31 00
Hold-down tool





642 589 04 40 00
Holddown device
