AR05.10-P-7800OGR Remove/Install Chain Tensioner




AR05.10-P-7800OGR Remove/Install Chain Tensioner
ENGINES 642 in MODEL 166.0

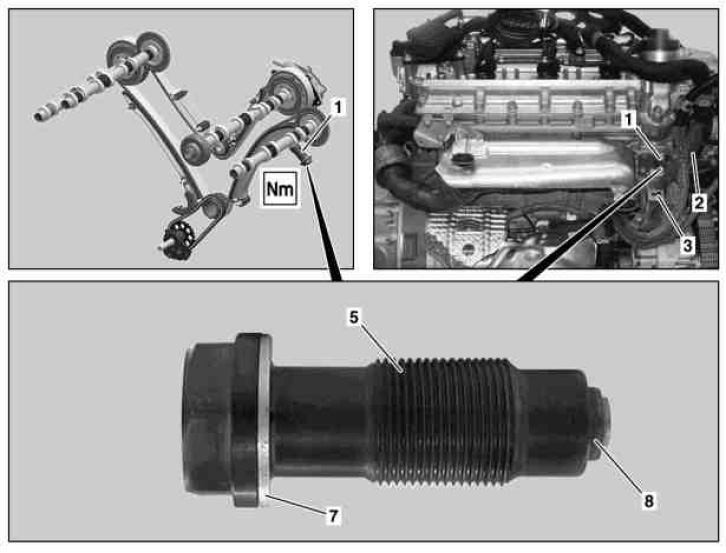

1 Chain tensioner
2 Wiring harness
3 Cable tie
7 Sealing ring
