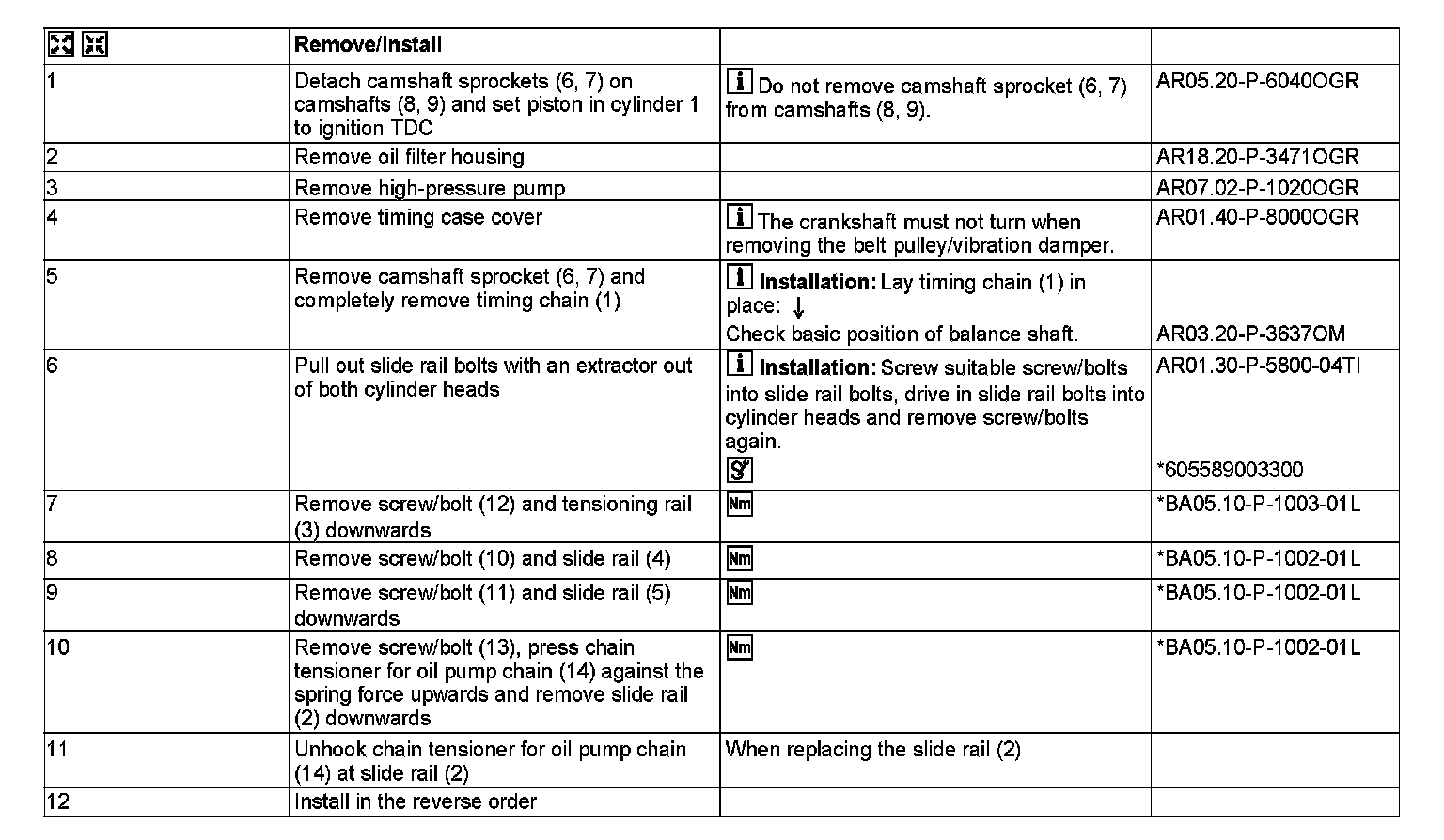

AR05.10-P-8424OGR Remove/Install Slide Rails and Tensioning Rail

AR05.10-P-8424OGR Remove/Install Slide Rails and Tensioning Rail
ENGINES 642 in MODEL 166.0

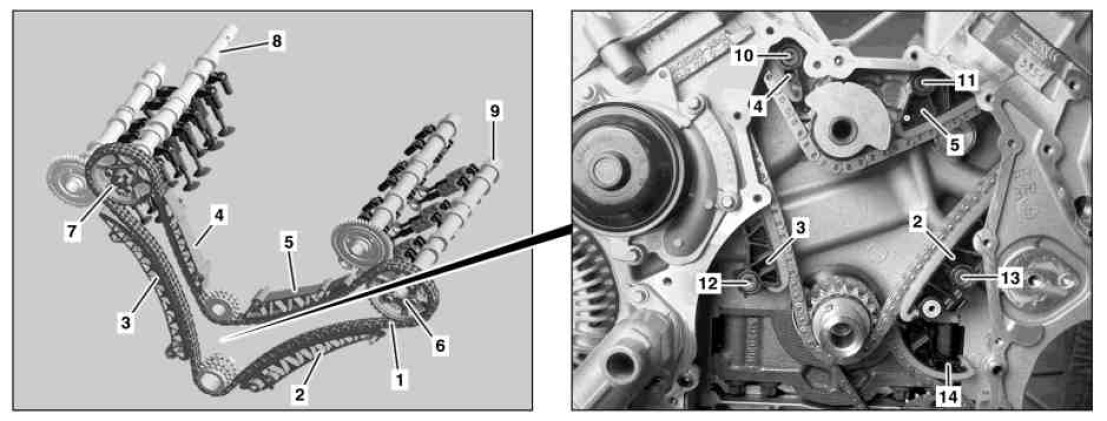

1 Timing chain
2 Slide rail
3 Tensioning rail
4 Slide rail
5 Slide rail
6 Camshaft sprocket (left)
7 Camshaft sprocket (right)
8 Camshaft
9 Camshaft
10 Screw/bolt
11 Screw/bolt
12 Screw/bolt
13 Screw/bolt
14 Chain tensioner of oil pump chain











605 589 00 33 00
Extractor
