Removal and Replacement

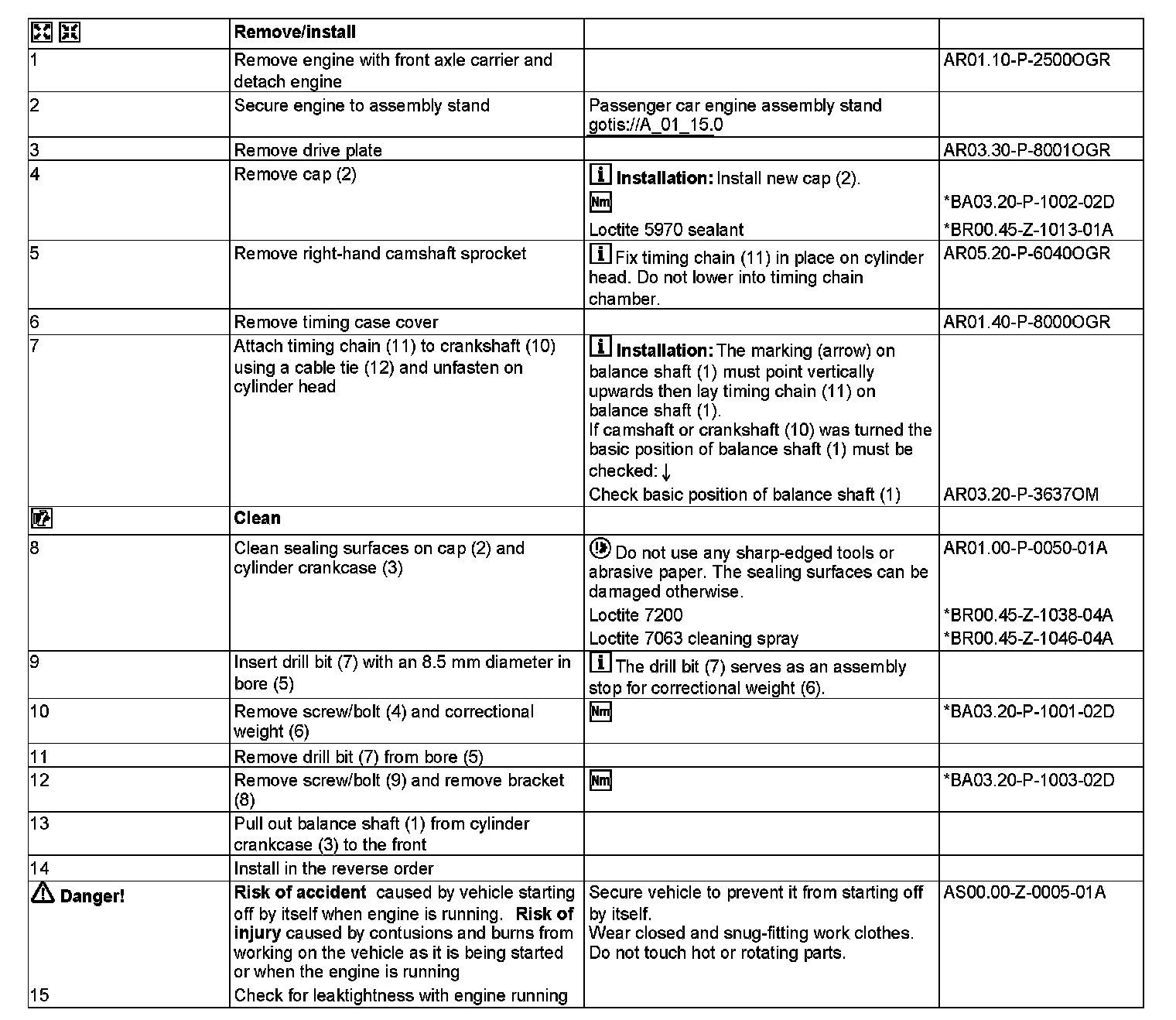

AR03.20-P-1000OGR Remove/Install Balance Shaft
ENGINES 642 in MODEL 166.0

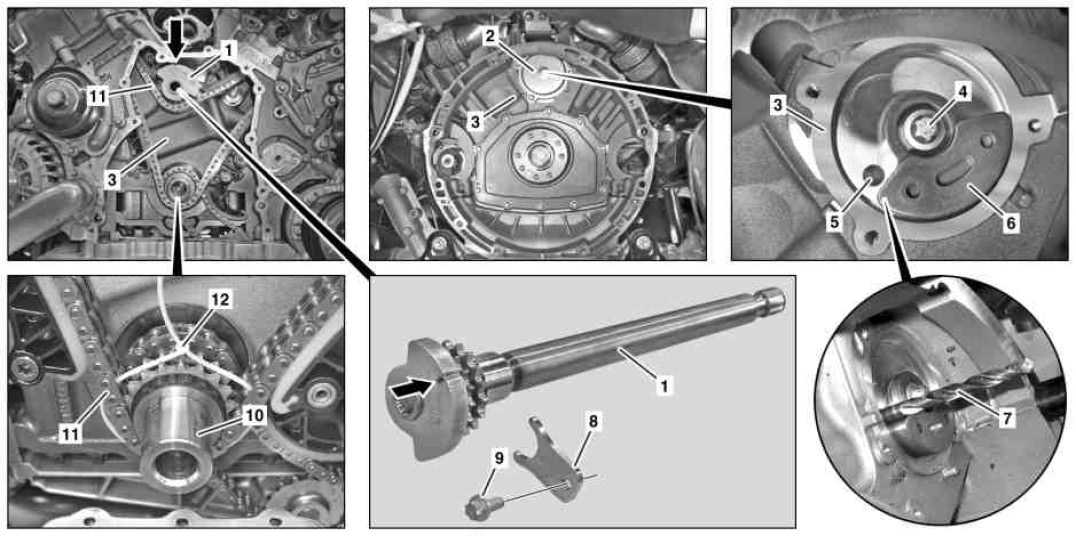

1 Balance shaft
2 Cap
3 Cylinder crankcase
4 Screw/bolt
5 Bore
6 Correctional weight
7 Drill bit
8 Bracket
9 Screw/bolt
10 Crankshaft
11 Timing chain
12 Cable tie
