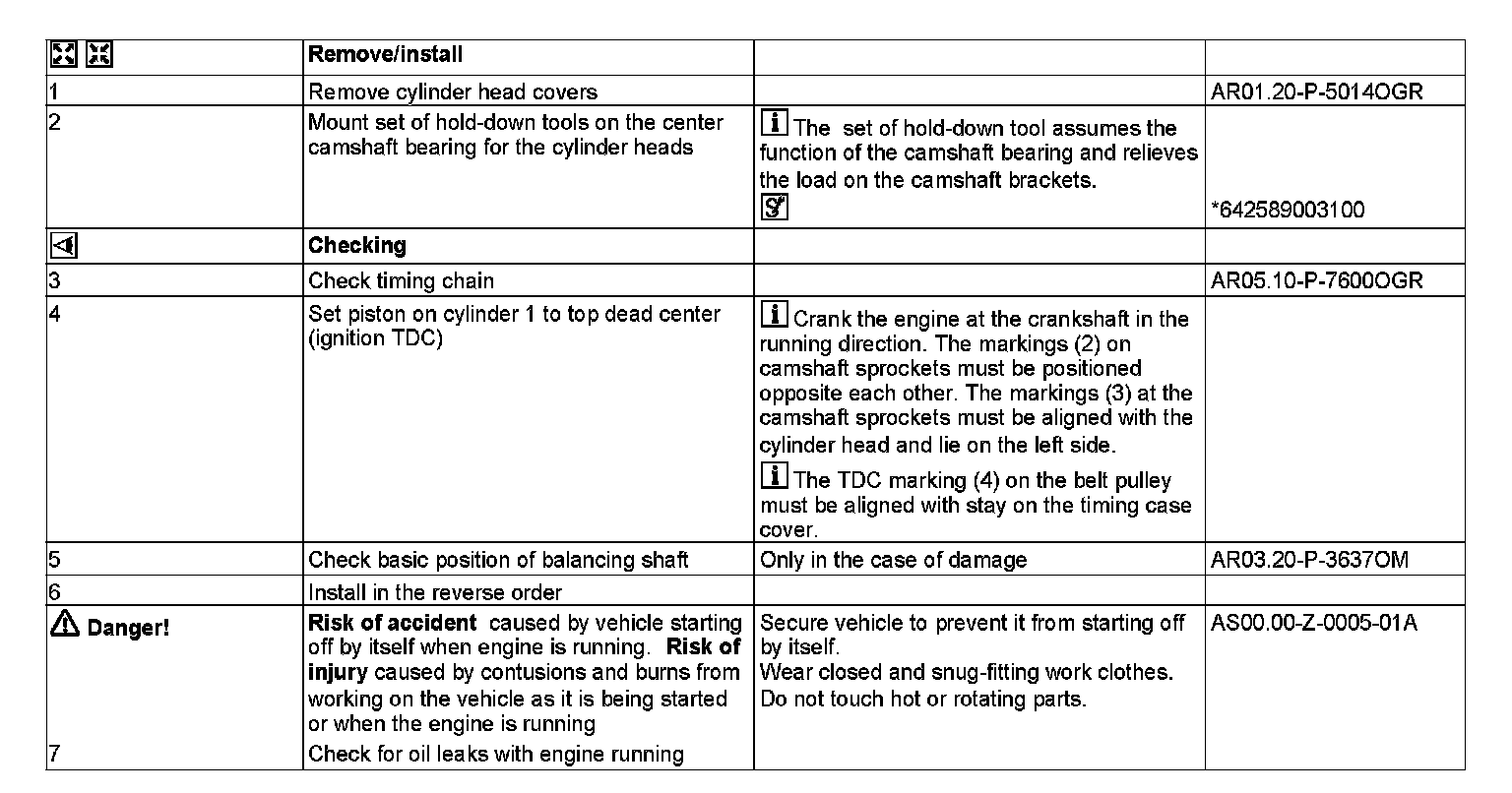

AR05.10-P-6858OGR Check Engine Valve Timing

AR05.10-P-6858OGR Check Engine Valve Timing
ENGINES 642 in MODEL 166.0

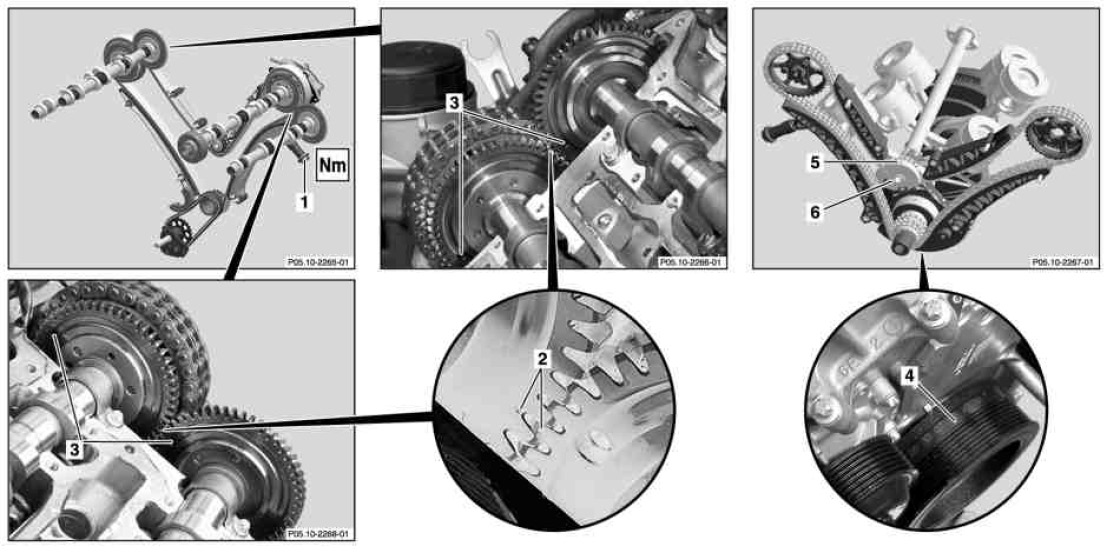

1 Chain tensioner
2 Markings
3 Markings
4 Top dead center (TDC) marking
5 Marking on the balance shaft
6 Balance shaft drive gear








642 589 00 31 00
Set of hold-down tools
