AR01.10-P-2500OGR Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500OGR Remove/Install Engine With Front Axle Carrier
ENGINES 642 in MODEL 166.0

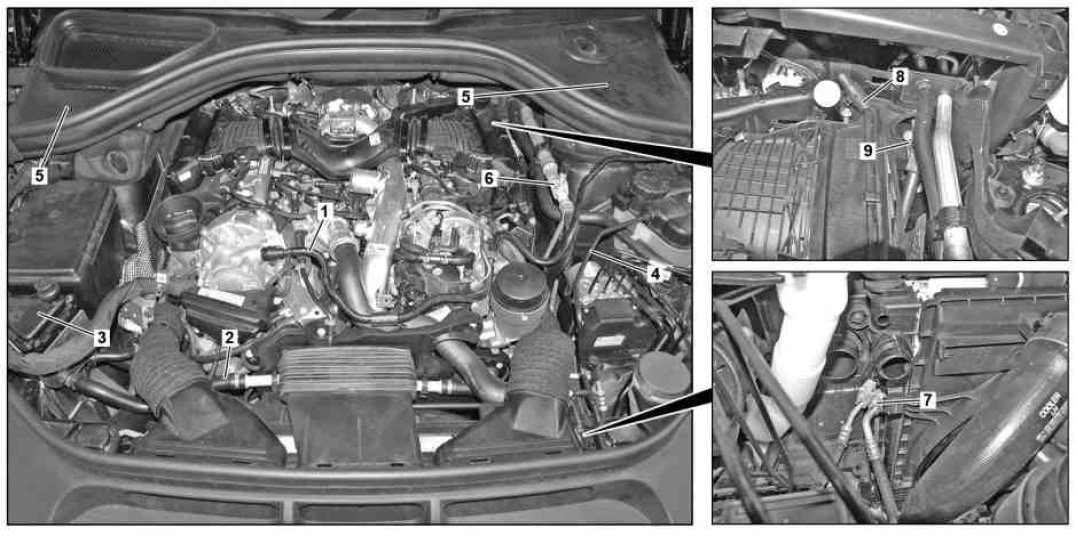

1 Vacuum hose
2 Hydraulic hose
3 Roll stabilization expansion reservoir
4 Coolant line
5 Covers
6 Separation point
7 Refrigerant line
8 Coolant hose
9 Steering coupling universal joint





12 Coolant hose
13 Fuel hoses
17 High pressure pipe
18 Low pressure pipe

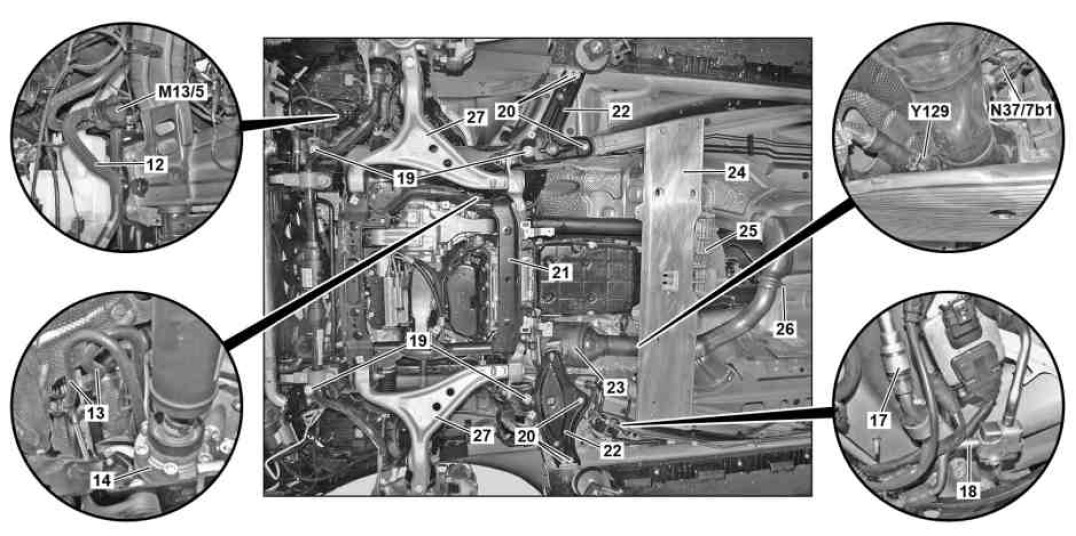

19 Bolts
20 Bolts
21 Front axle carrier
22 Centering plates
23 Catalytic converter diesel particulate filter unit
24 Rear engine crossmember
25 Transfer case
26 Clamp
27 Transverse control arm

M13/5 Coolant circulation pump
Y129 AdBlue(R) metering valve

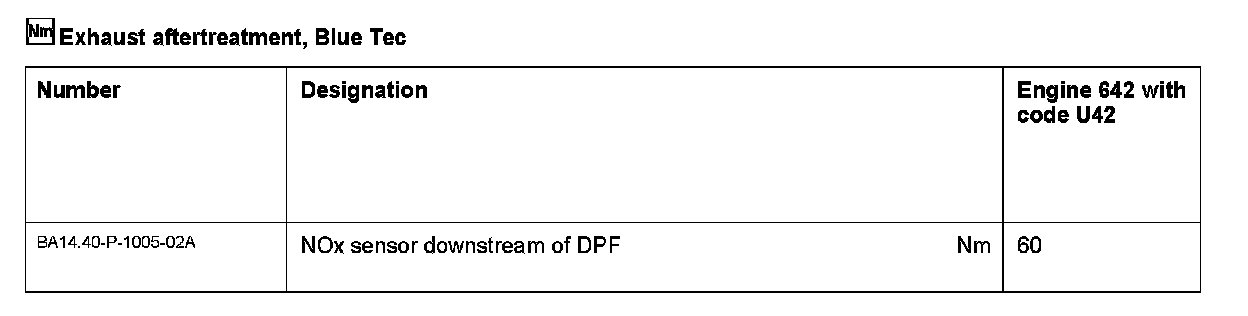

N37/7b1 NOx sensor downstream of diesel particulate filter
































129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump





129 589 01 21 00
Holding device





230 589 01 33 00
Detaching tool





003 589 03 37 00
Hose clamp pliers
