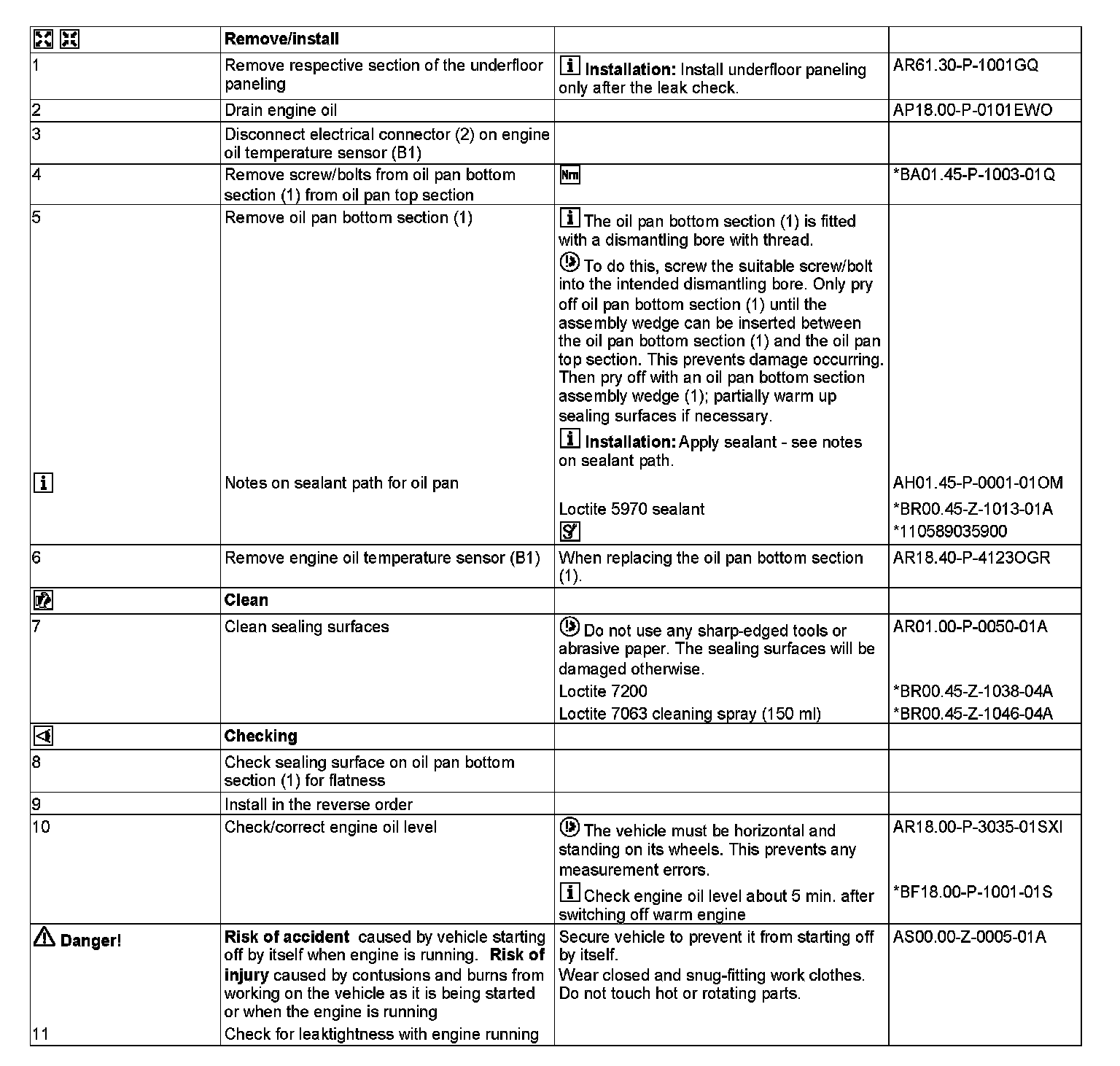

AR01.45-P-7555OGR Remove/Install Oil Pan Bottom Section

AR01.45-P-7555OGR Remove/Install Oil Pan Bottom Section
ENGINES 642 in MODEL 166.0





1 Oil pan bottom section
2 Electrical connector

B1 Engine oil temperature sensor














110 589 03 59 00
Assembly wedge
