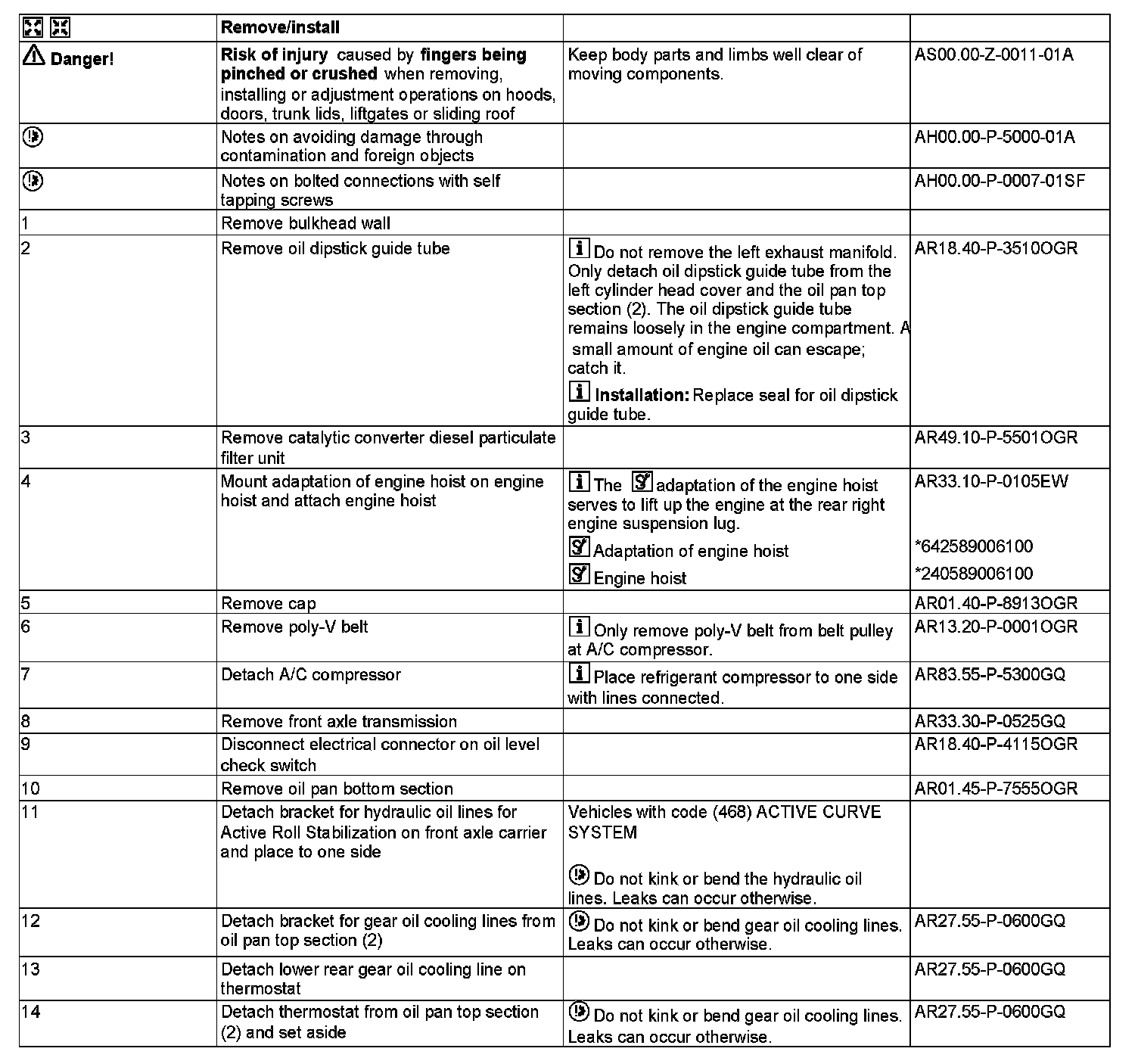

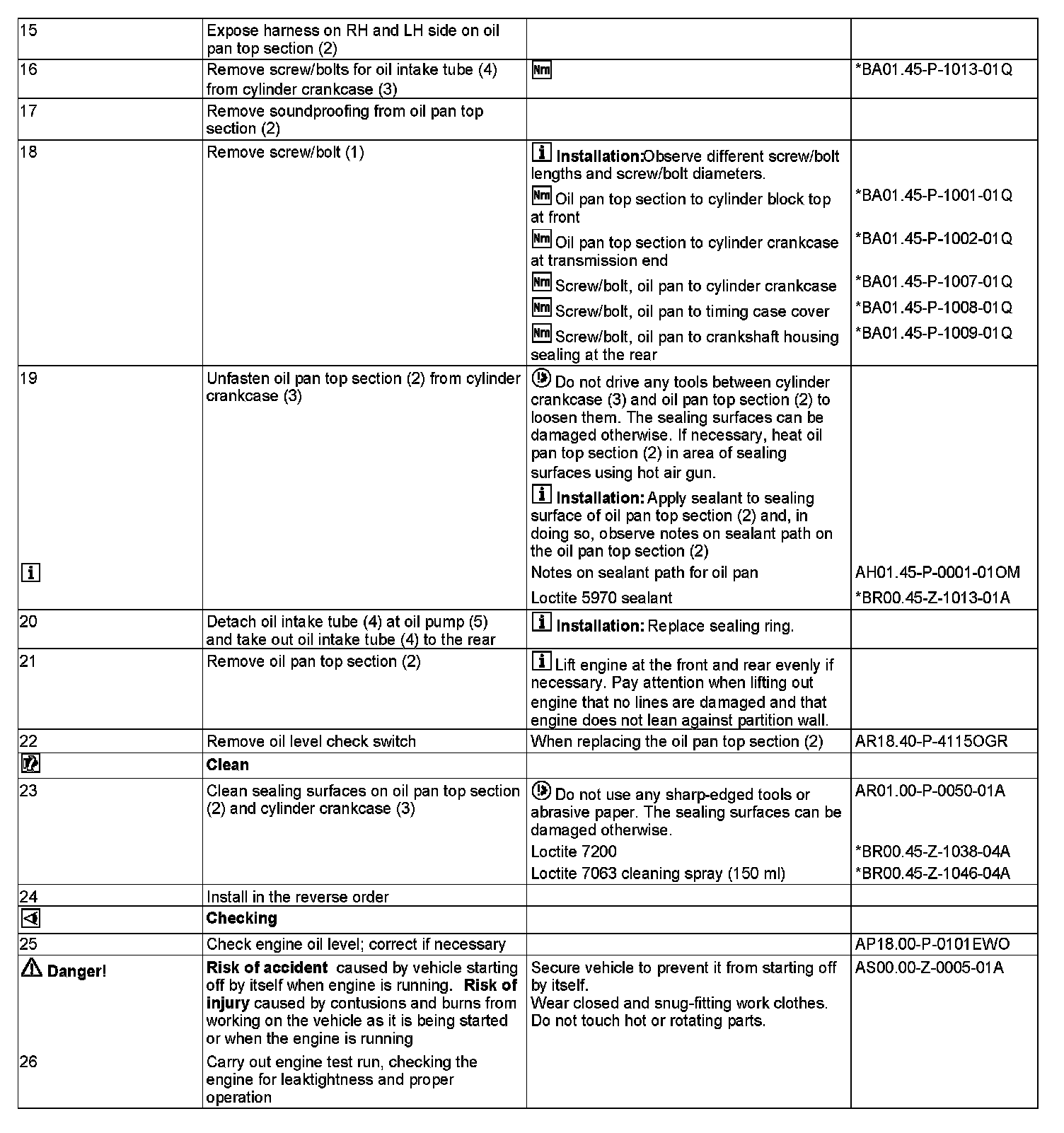

AR01.45-P-7500OGR Remove/Install Oil Pan

AR01.45-P-7500OGR Remove/Install Oil Pan
ENGINES 642 in MODEL 166.0

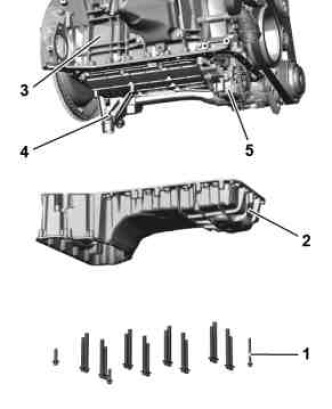

1 Screw/bolt
2 Oil pan top section
3 Cylinder crankcase
4 Oil intake tube
5 Oil pump














642 589 00 61 00
Adaptation of engine hoist





240 589 00 61 00
Engine hoist
