Removal and Replacement

AR01.30-P-5800OGR Remove/Install Cylinder Head
ENGINES 642 in MODEL 166.0

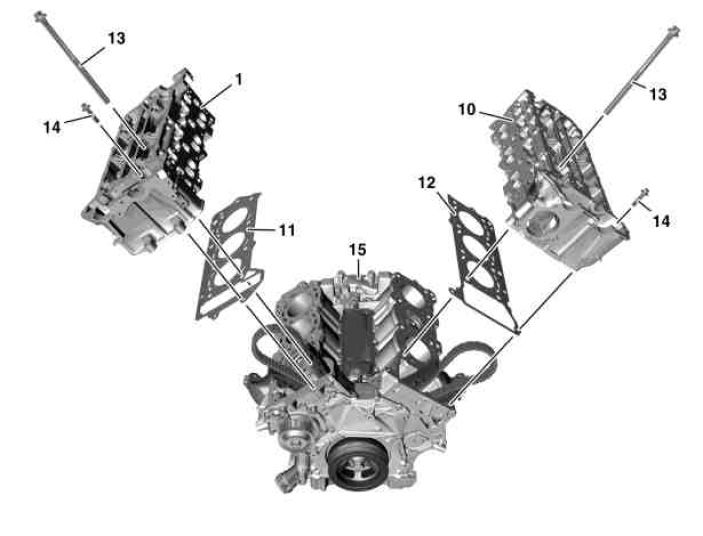

1 Right cylinder head
10 Left cylinder head
11 Cylinder head gasket
12 Cylinder head gasket
13 Cylinder head bolts
14 Cylinder head bolts
15 Cylinder crankcase

















102 589 00 34 00
Threaded pin





116 589 20 33 00
Impact extractor





605 589 00 33 00
Extractor
