Piston: Service and Repair

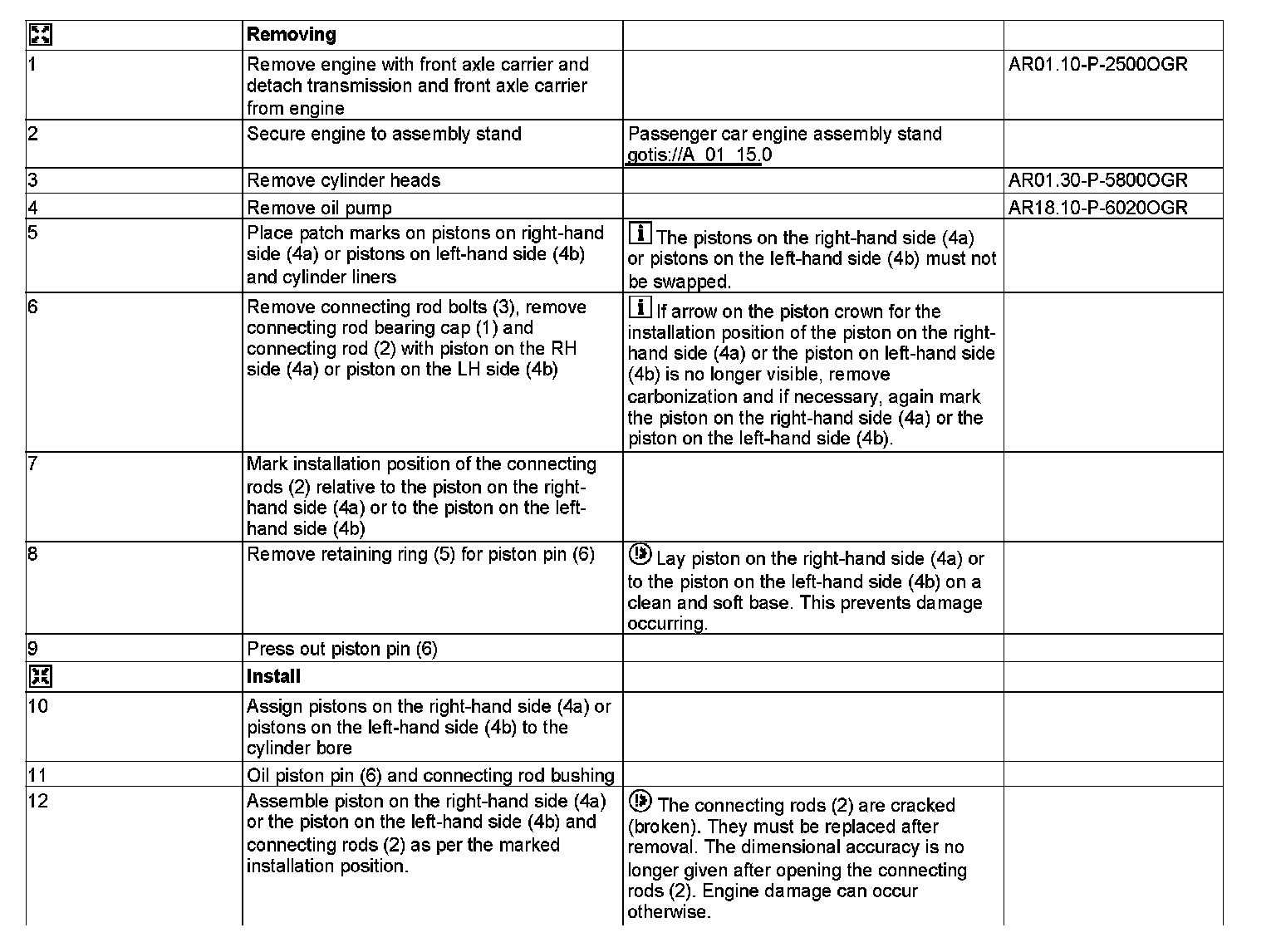

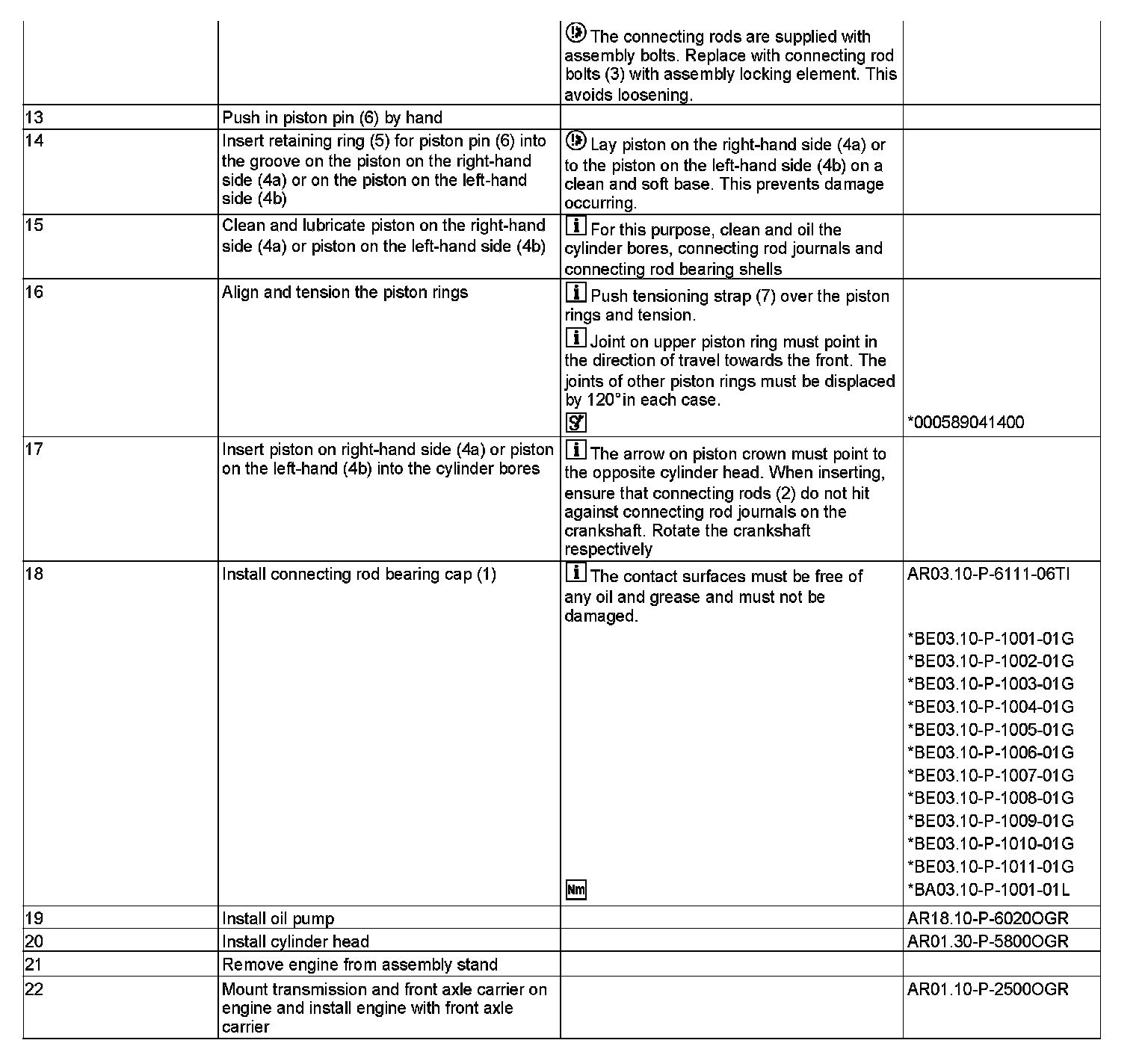

AR03.10-P-7021OGR Remove/Install Piston
ENGINES 642 in MODEL 166.0

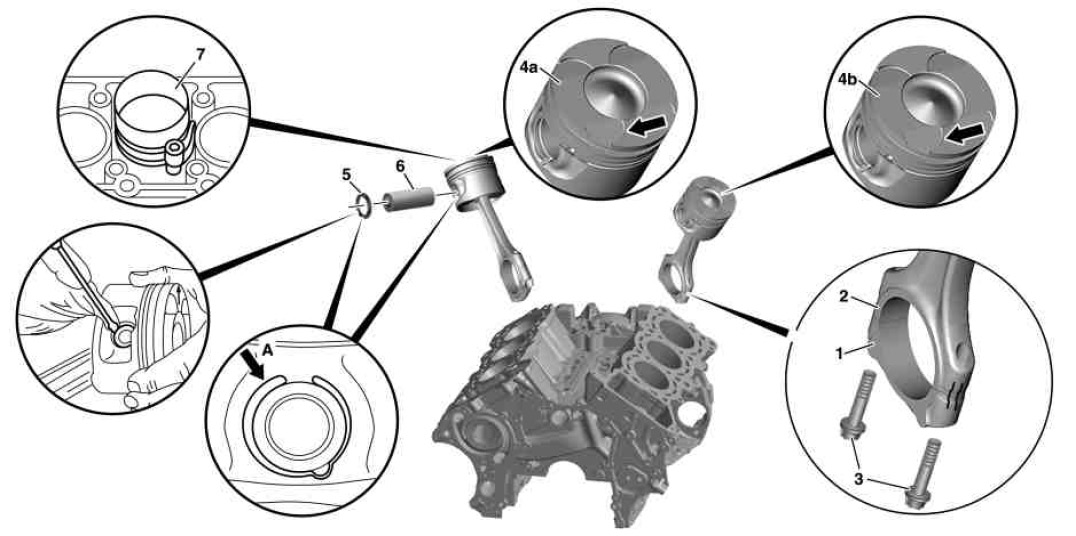

1 Connecting rod bearing cap
2 Connecting rod
3 Connecting rod bolts
4a Piston, right-hand side
4b Piston, left-hand side
5 Retaining ring
6 Piston pin
7 Tensioning strap

















000 589 04 14 00
Tensioning strap
