Procedures

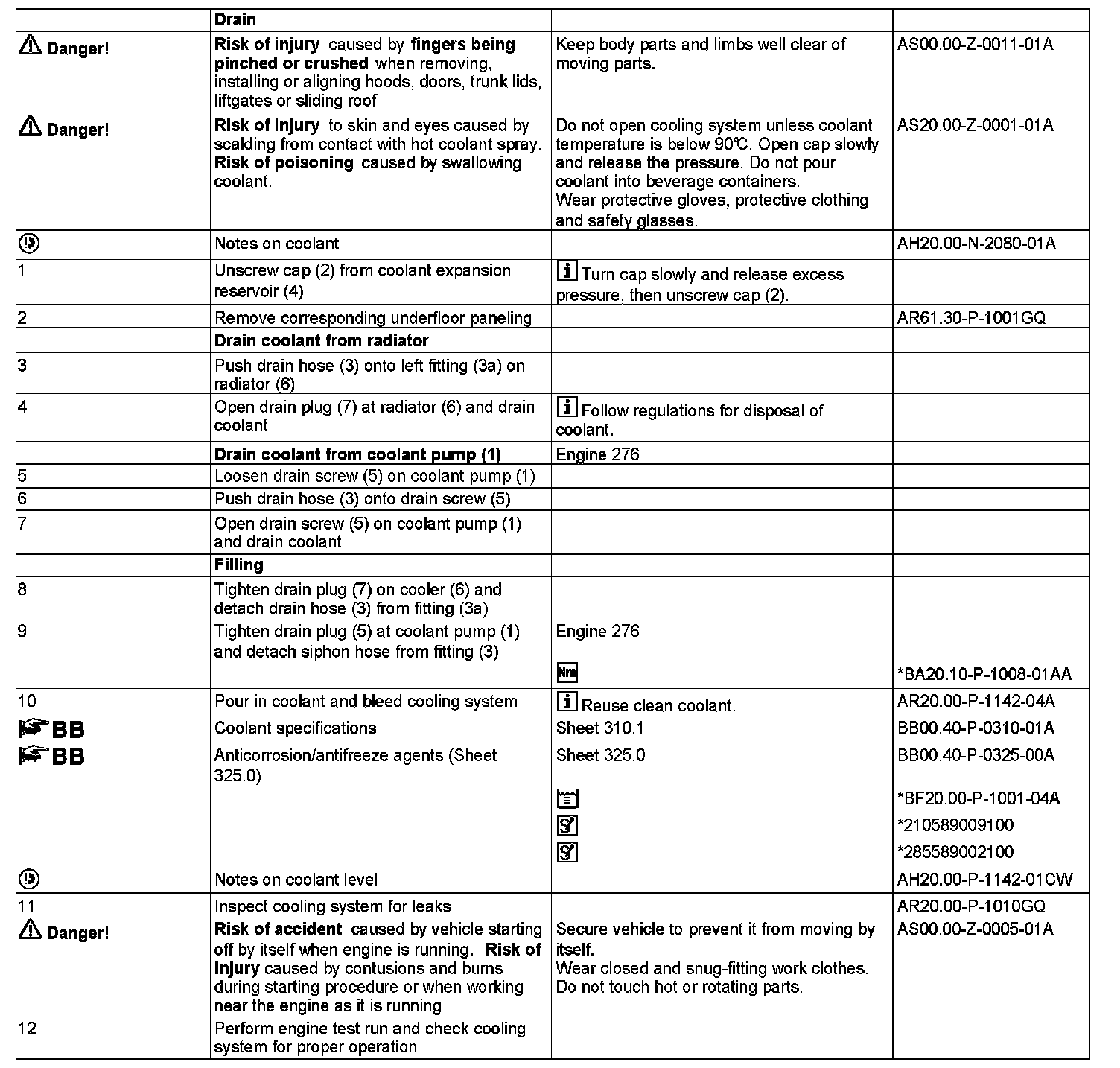

AR20.00-P-1142GQ Drain/Fill In Coolant
ENGINES 276, 642 in MODEL 166.0





2 Cap
3 Drain hose
3a Fitting
4 Coolant expansion reservoir
6 Radiator
7 Drain screw

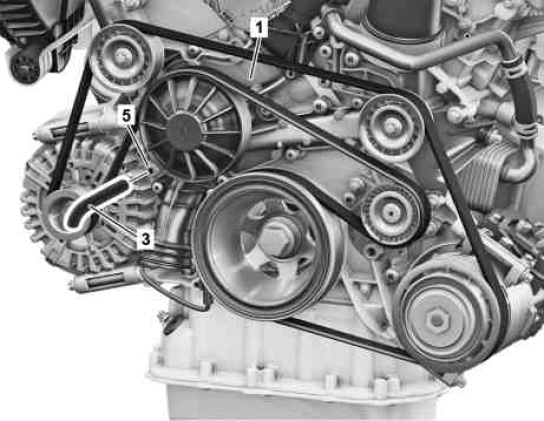

Engine 276

1 Coolant pump
3 Drain hose

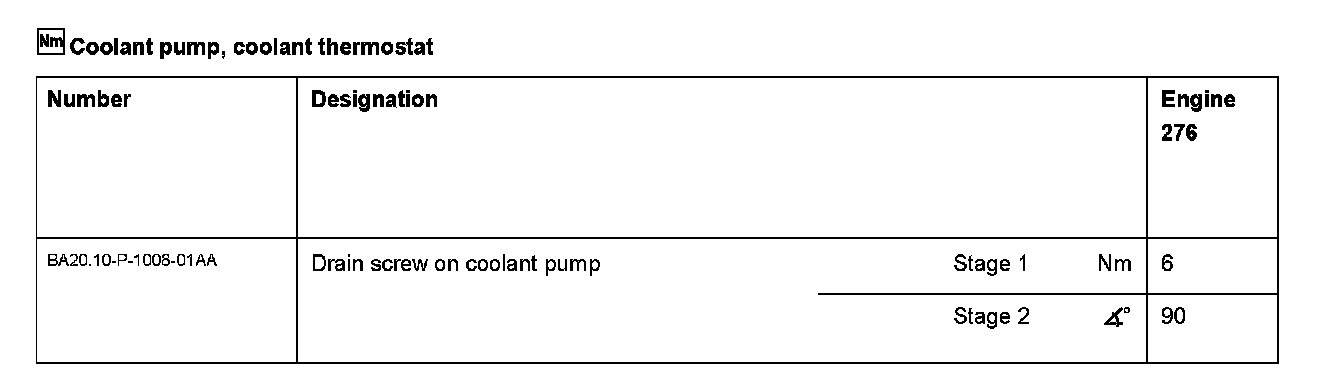

5 Coolant pump drain screw














210 589 00 91 00
Test cap





285 589 00 21 00
Vacuum-type cooling system filler
