Home >> Mercedes Benz Truck >> 2012 >> ML 350 BLUETEC (166.024) V6-3.0L DSL Turbo (642.826) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Function Diagrams >> PE09.00-P-2050NAC Electrical Function Schematic For Charging

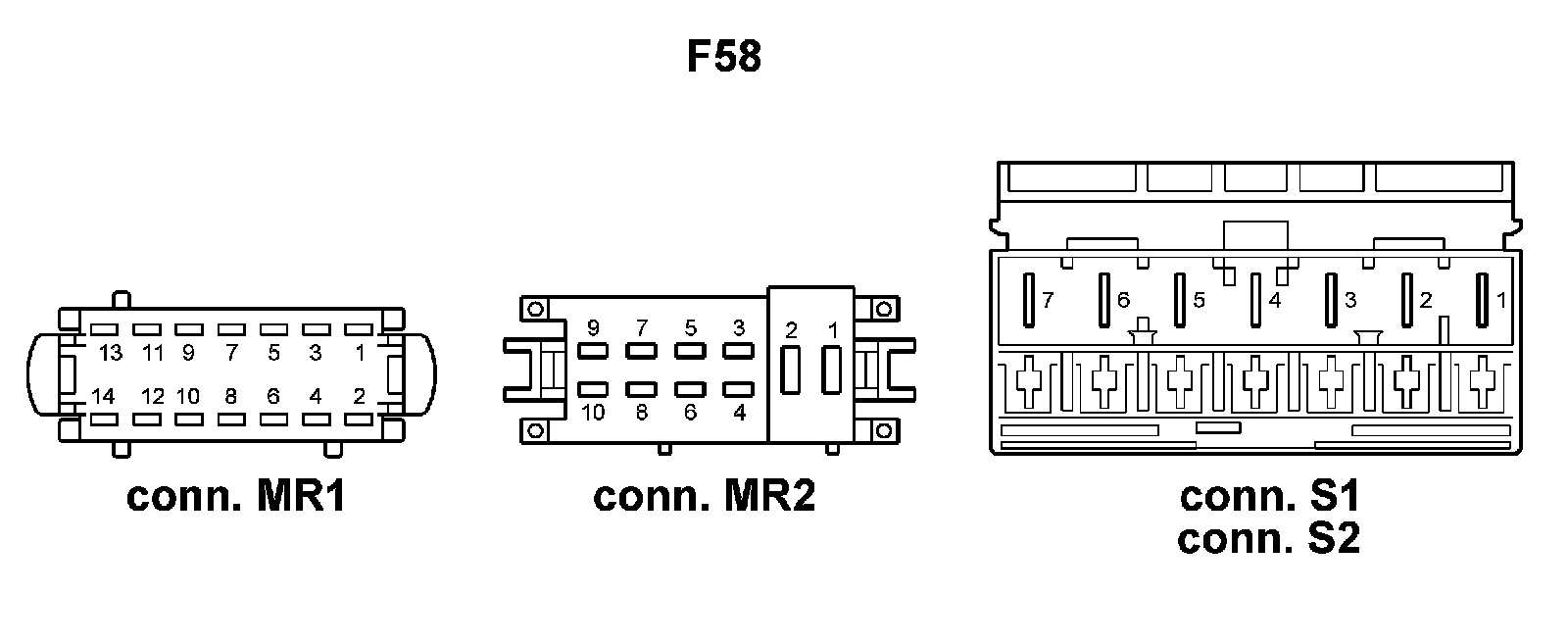

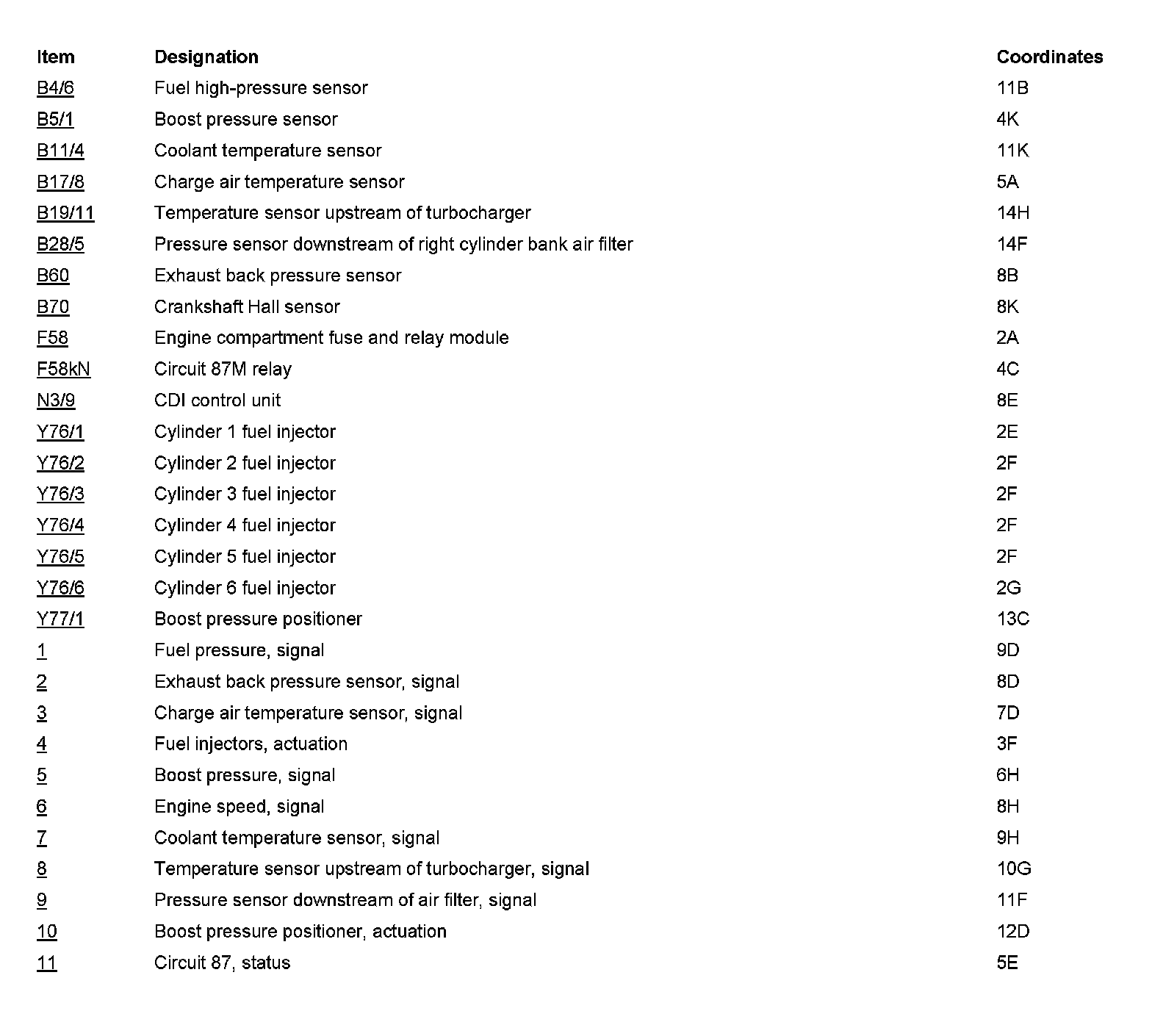

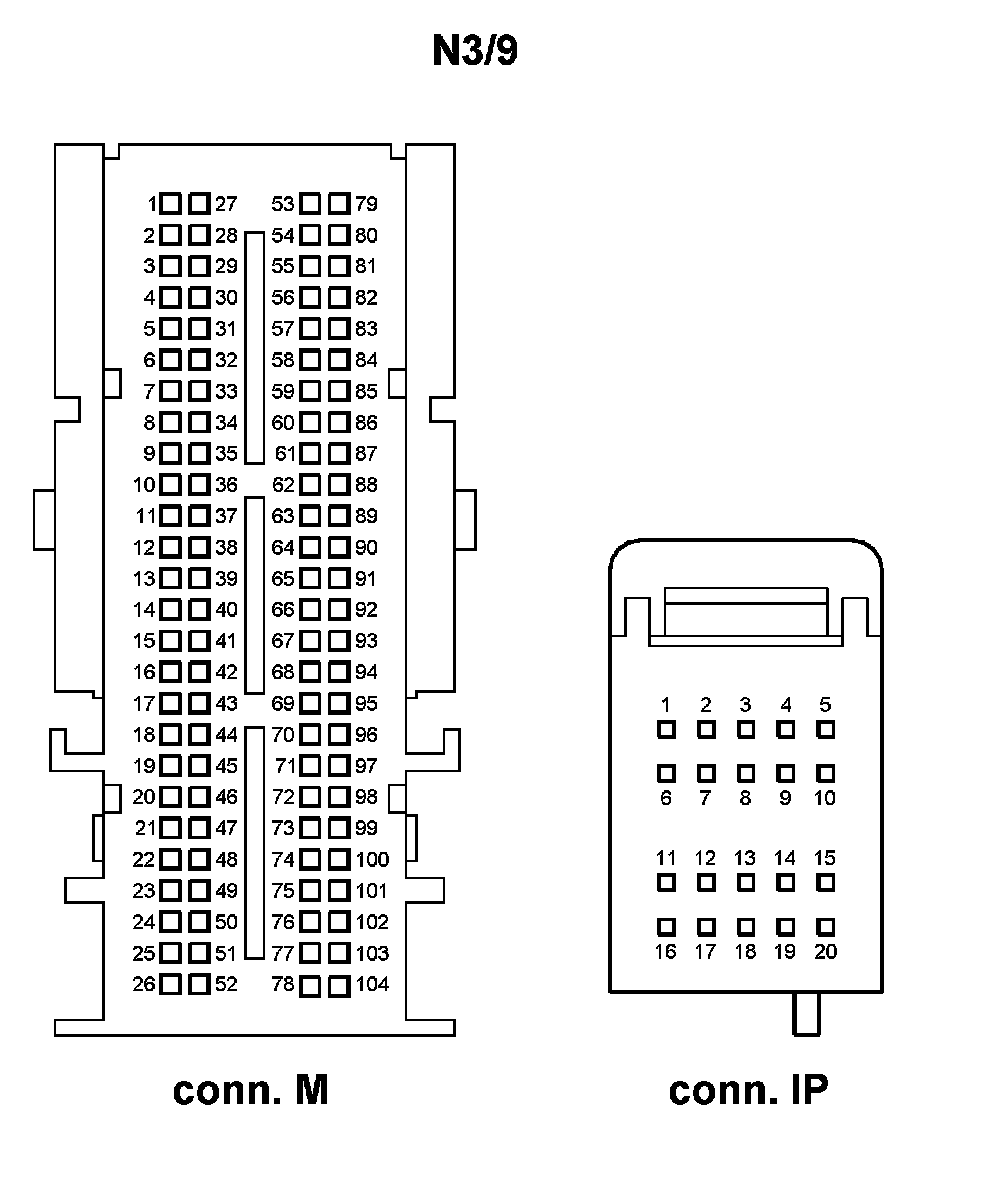

PE09.00-P-2050NAC Electrical Function Schematic For Charging



PE09.00-P-2050NAC Electrical Function Schematic For Charging
MODEL 166
- ENGINES 642.8 in MODEL 166


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
