PE07.10-P-2720NAC Electrical Function Schematic For On-Board Diagnosis

PE07.10-P-2720NAC Electrical Function Schematic For On-Board Diagnosis
ENGINES 642.8 in MODEL 166

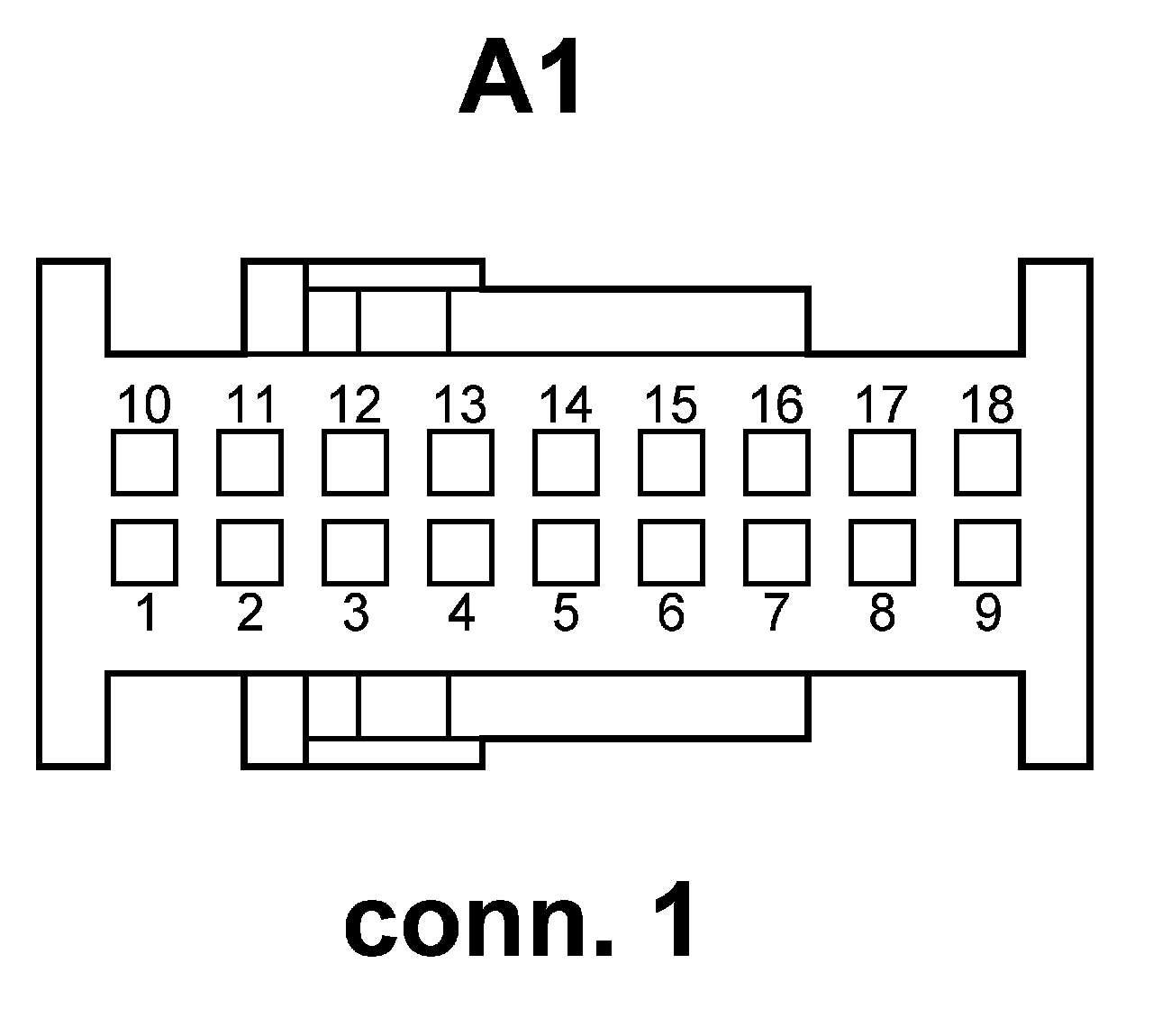

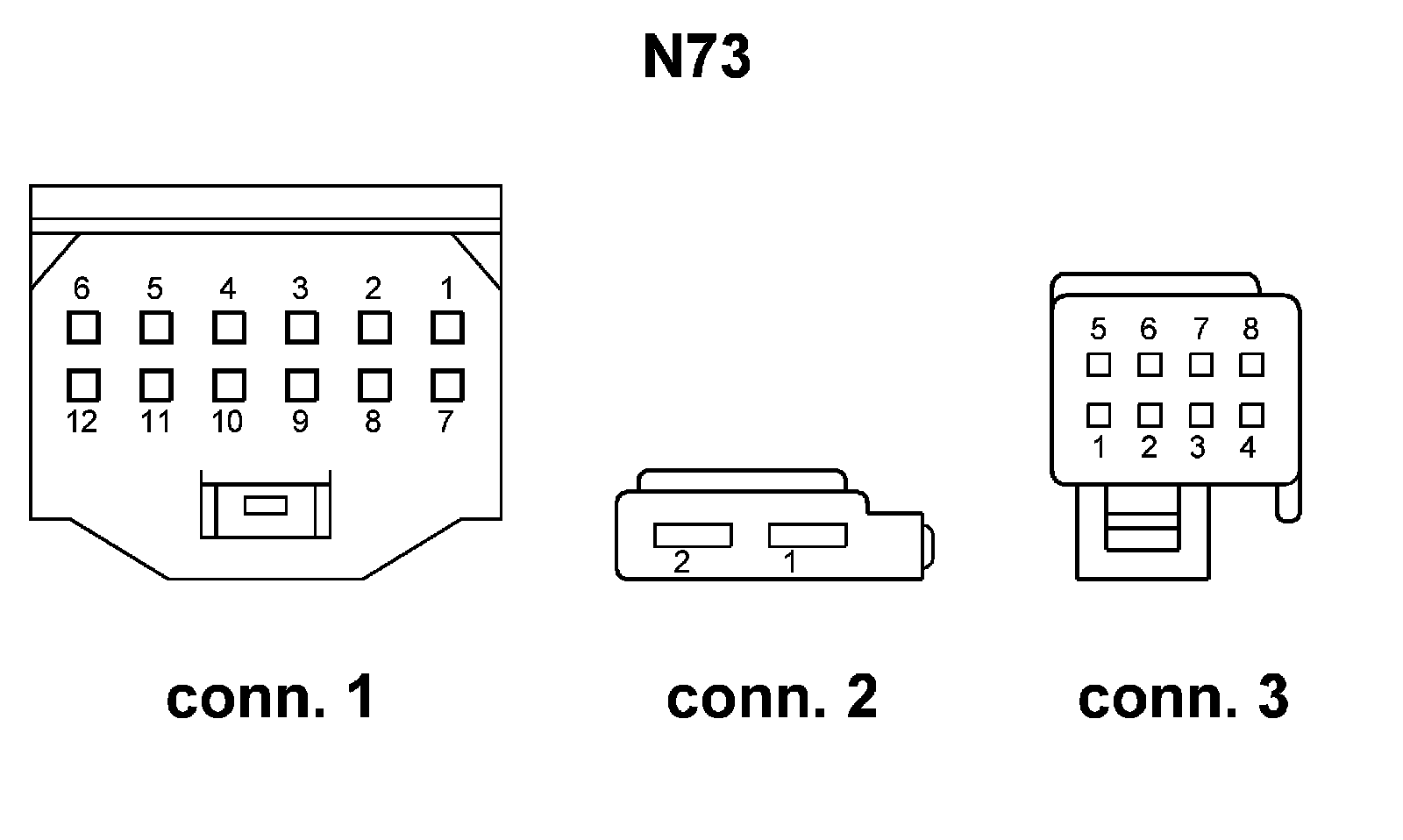

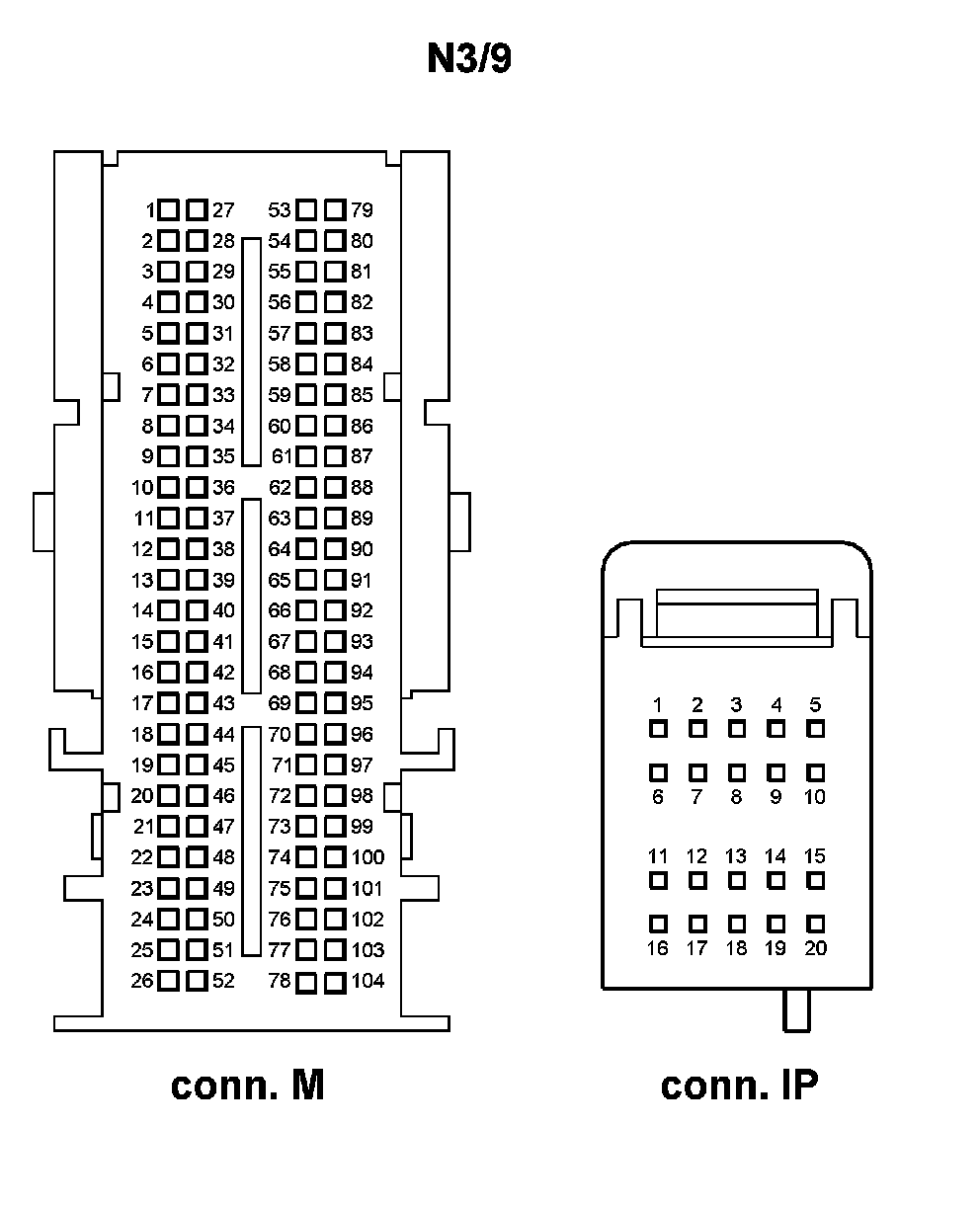

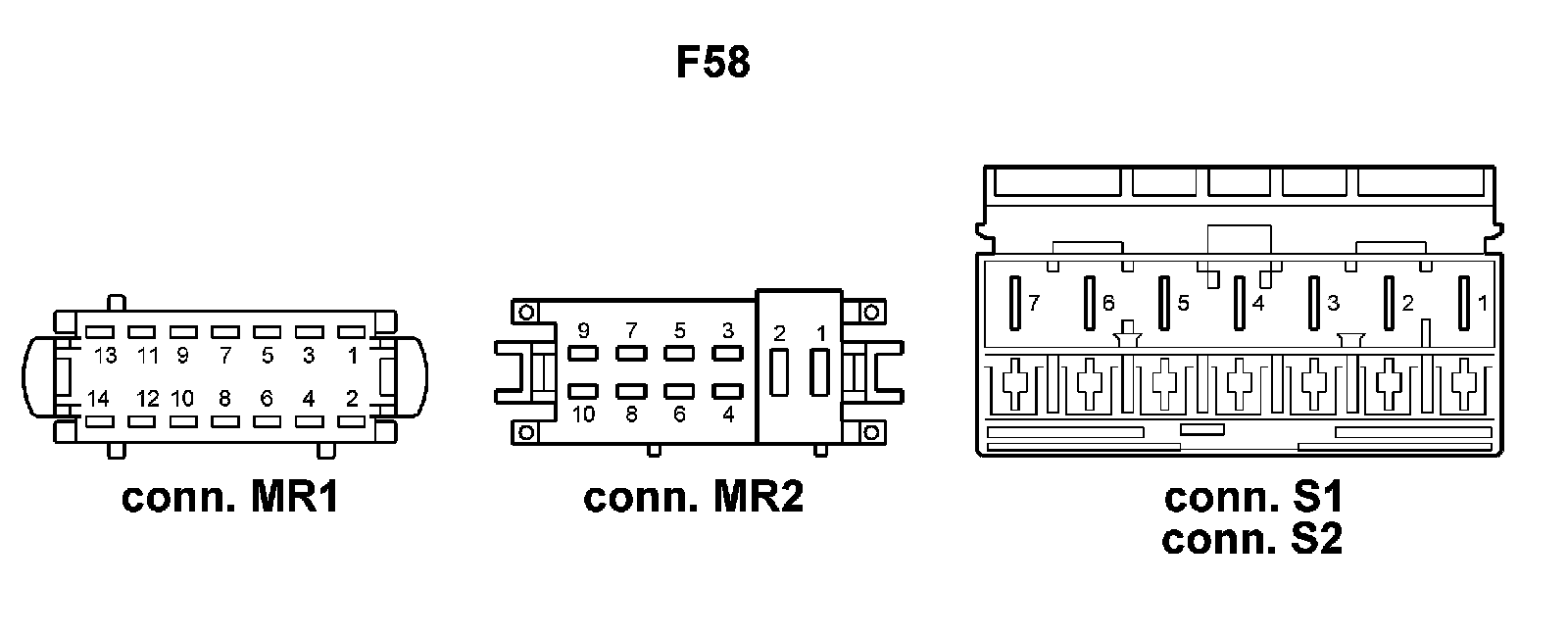

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
