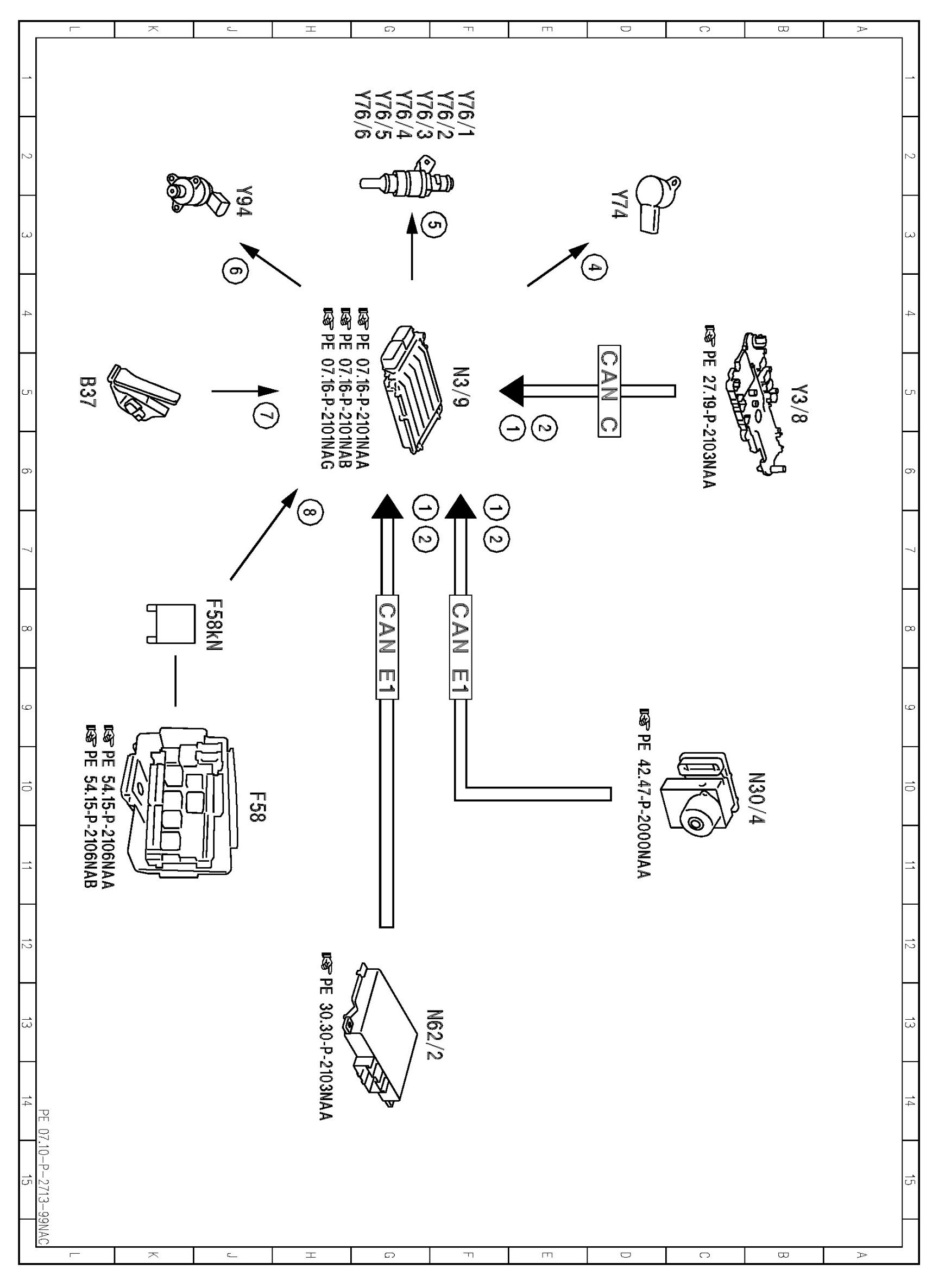

PE07.10-P-2713NAC Electrical Function Schematic For Torque Coordination

PE07.10-P-2713NAC Electrical Function Schematic For Torque Coordination
ENGINES 642.8 in MODEL 166

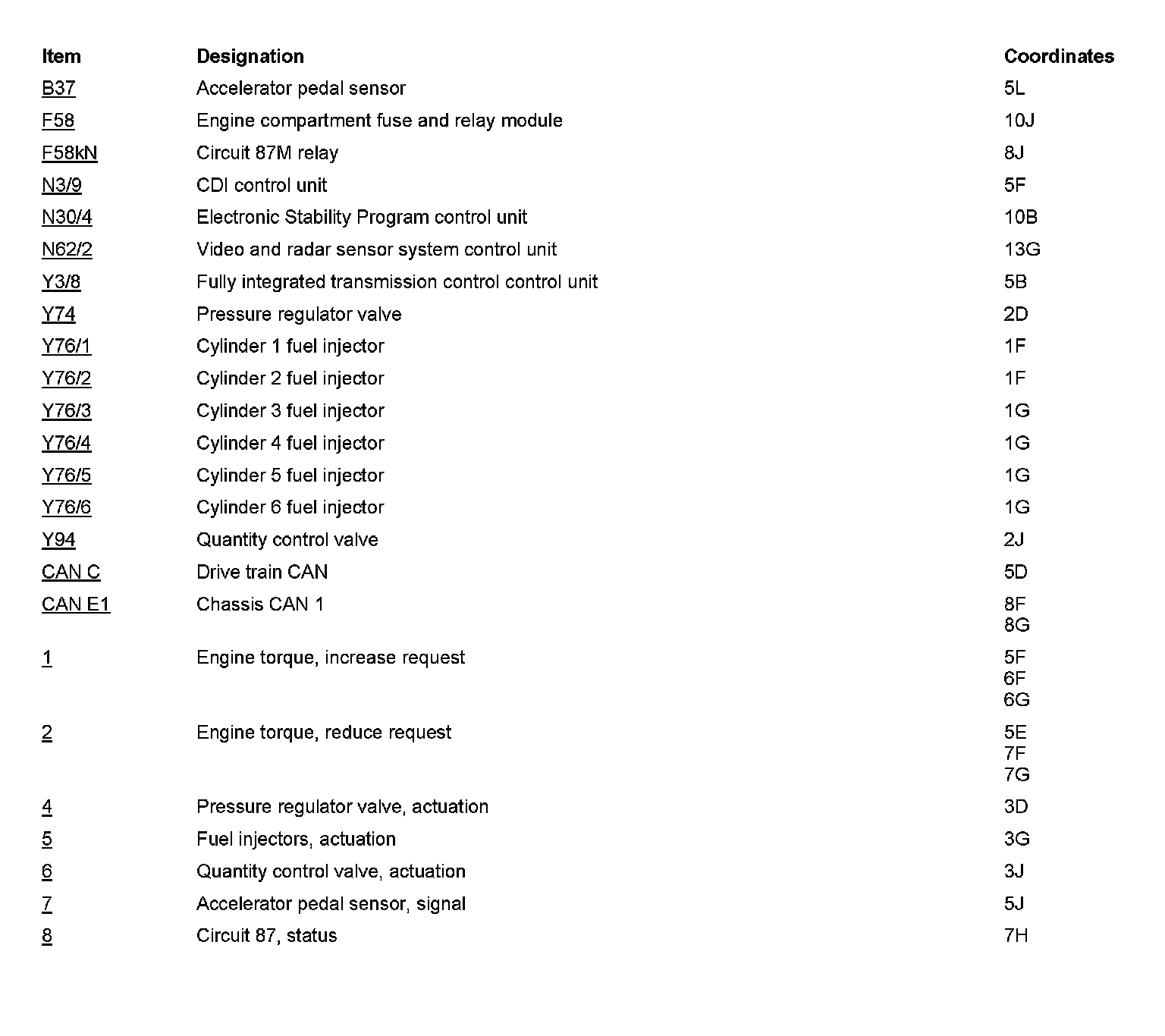

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
