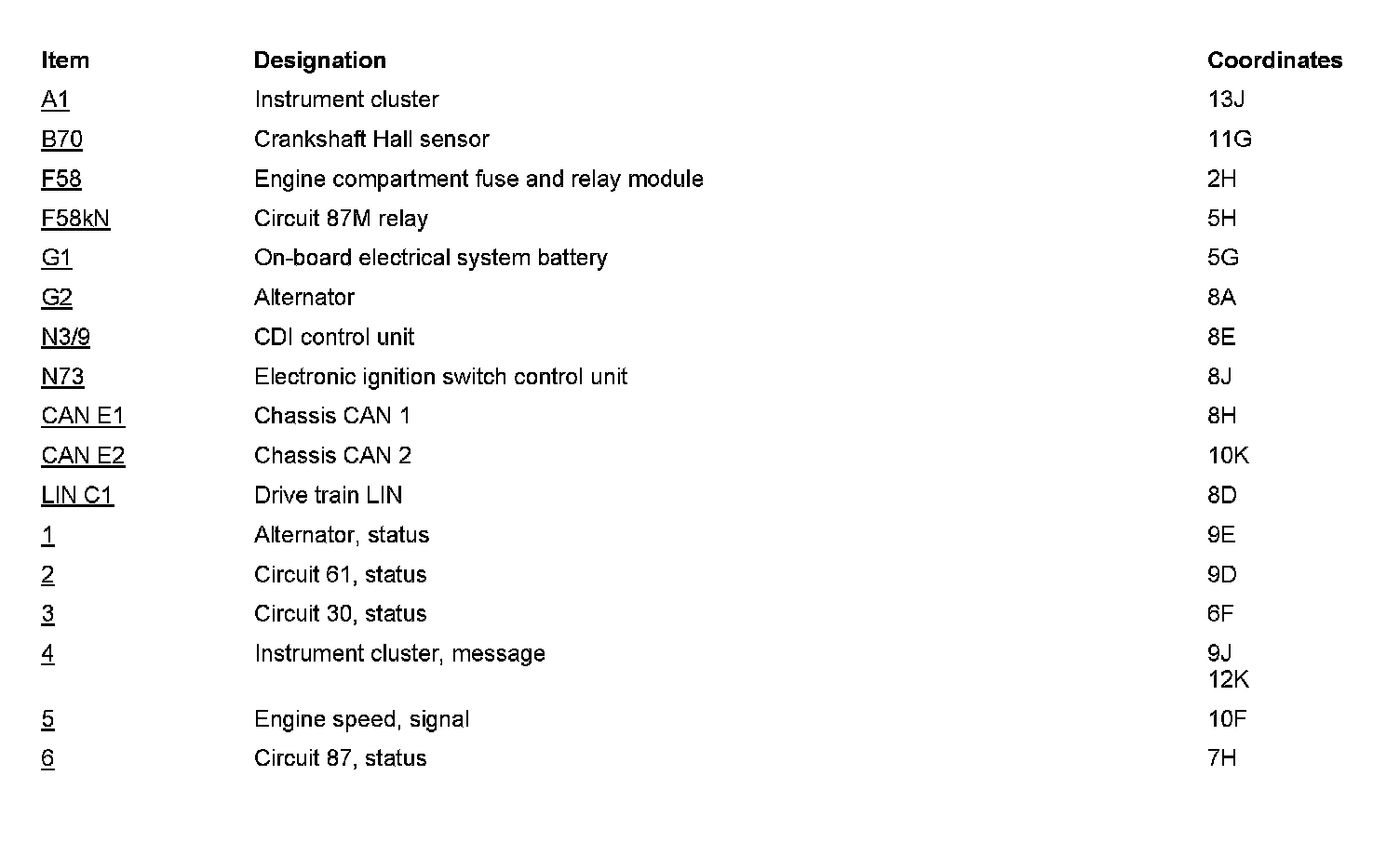

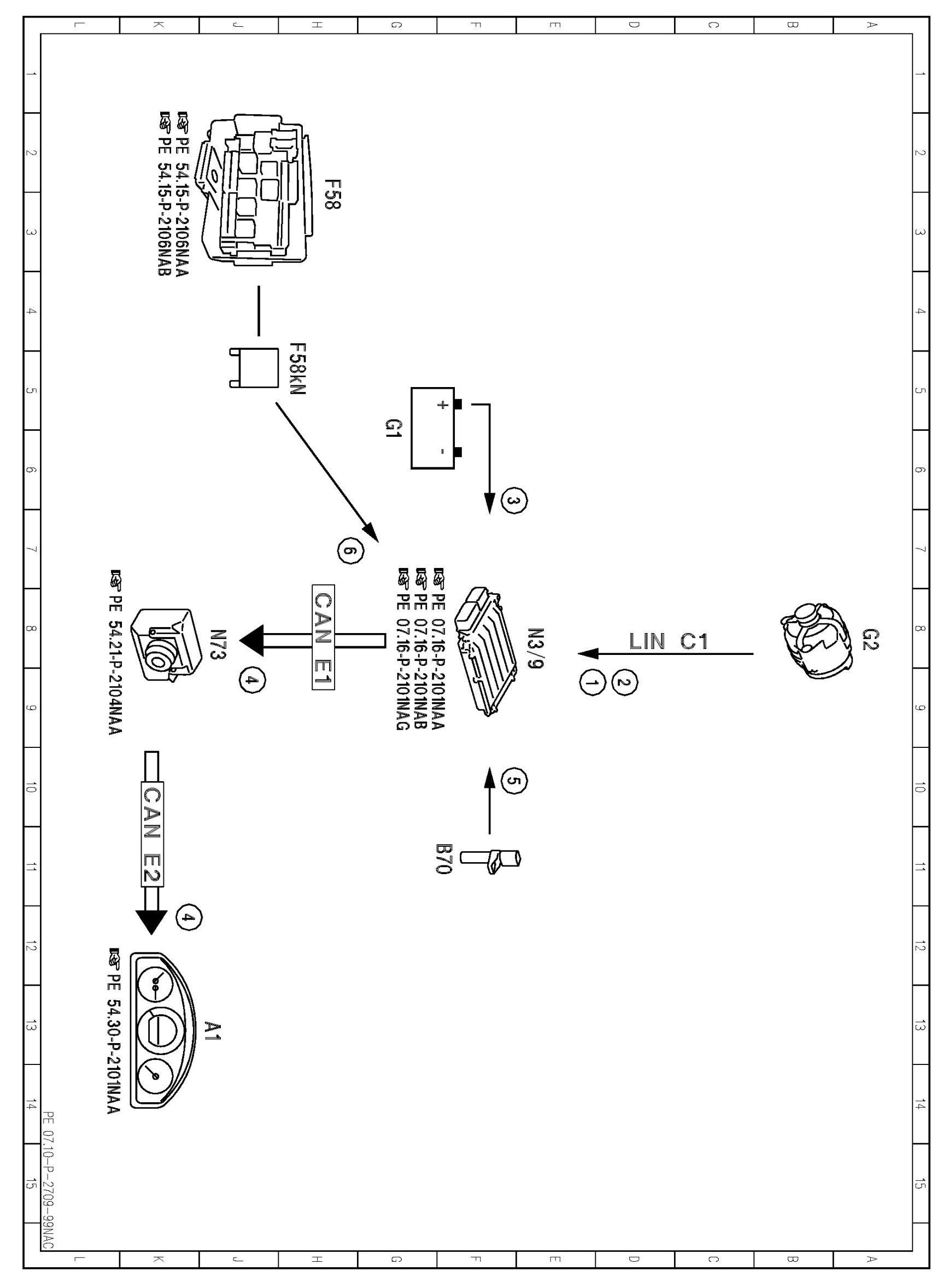

PE07.10-P-2709NAC Electrical Function Schematic For Alternator Interface

PE07.10-P-2709NAC Electrical Function Schematic For Alternator Interface
ENGINES 642.8 in MODEL 166


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
