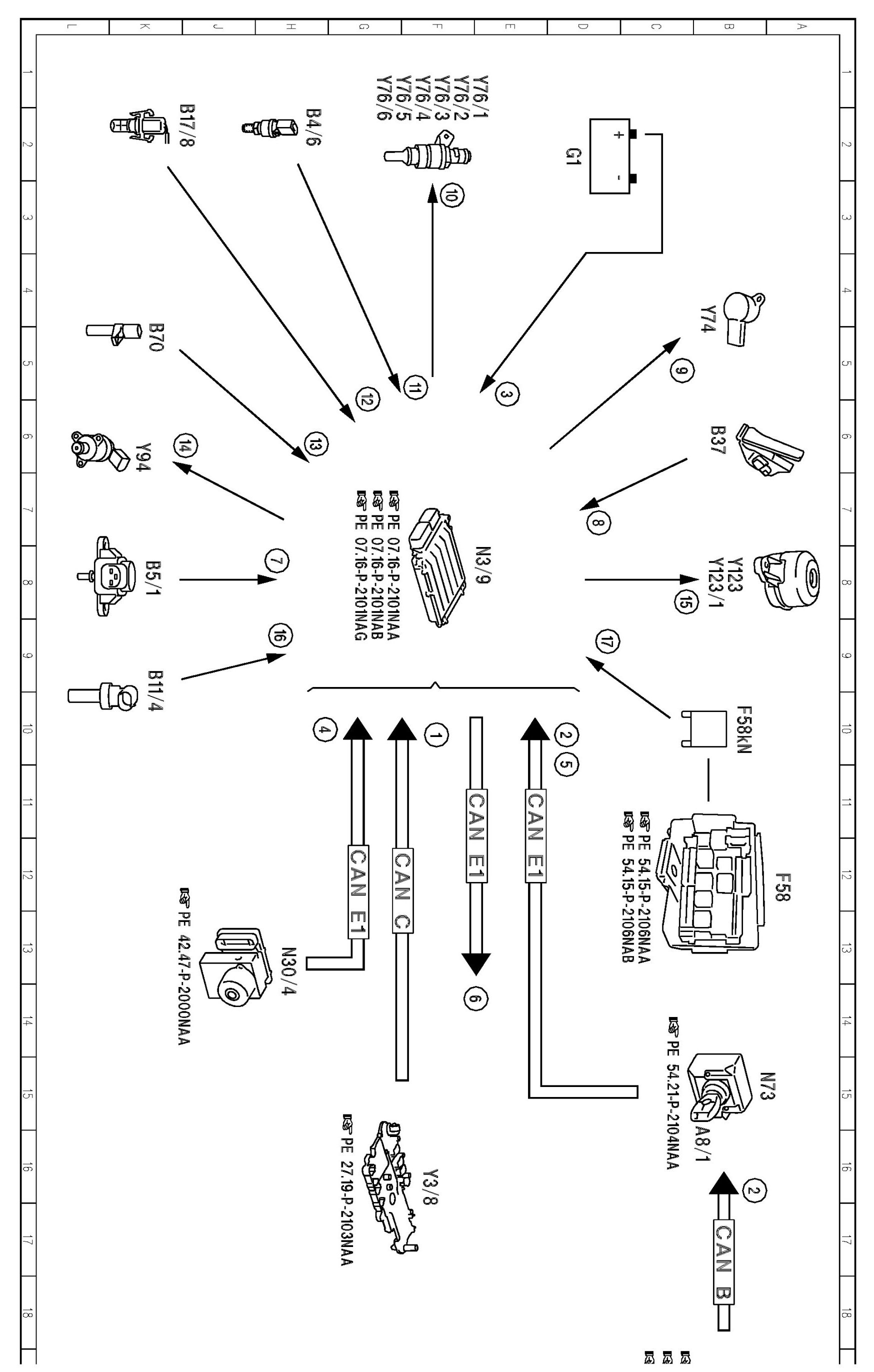

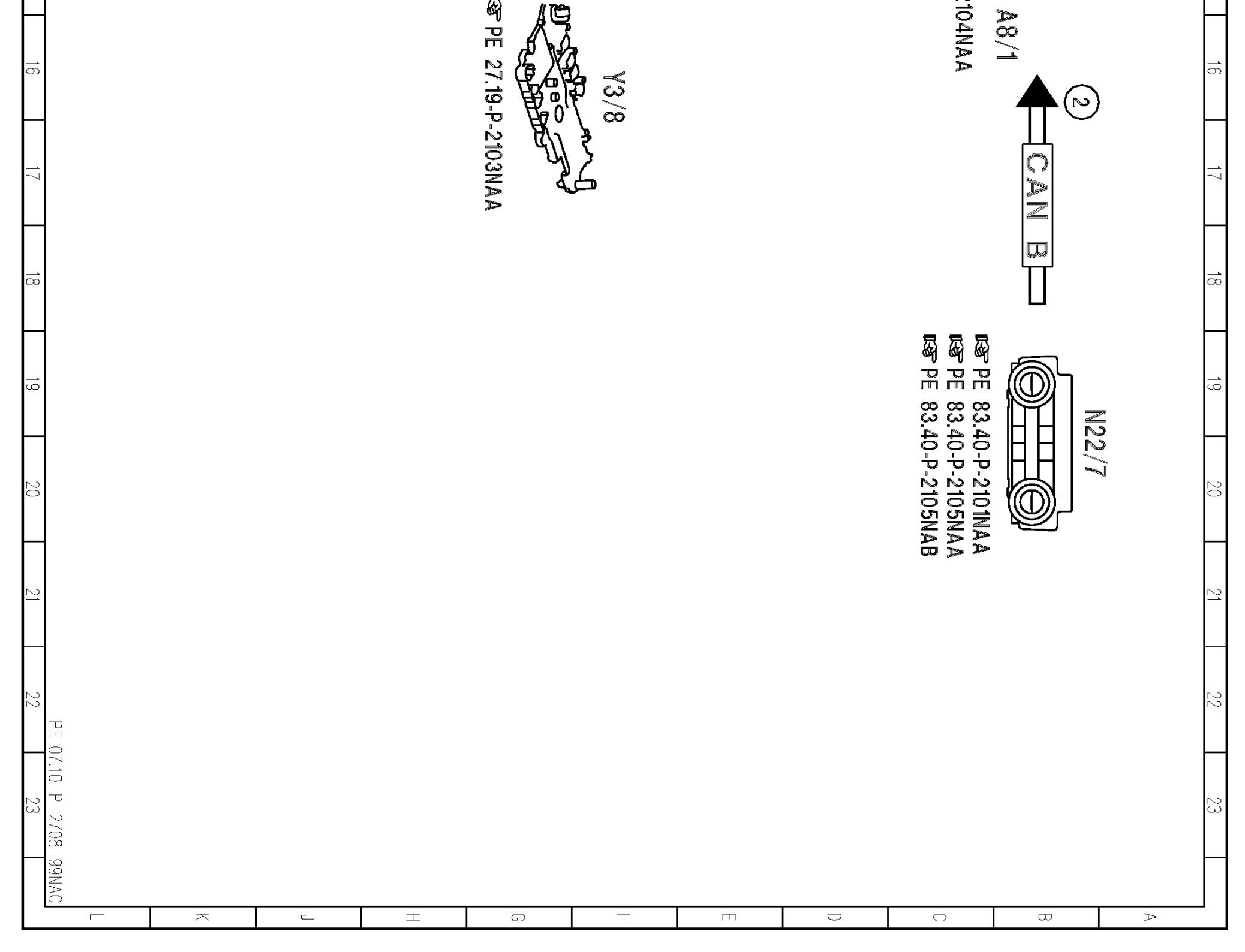

PE07.10-P-2708NAC Electrical Function Schematic For RPM Control

PE07.10-P-2708NAC Electrical Function Schematic For RPM Control
ENGINES 642.8 in MODEL 166


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
