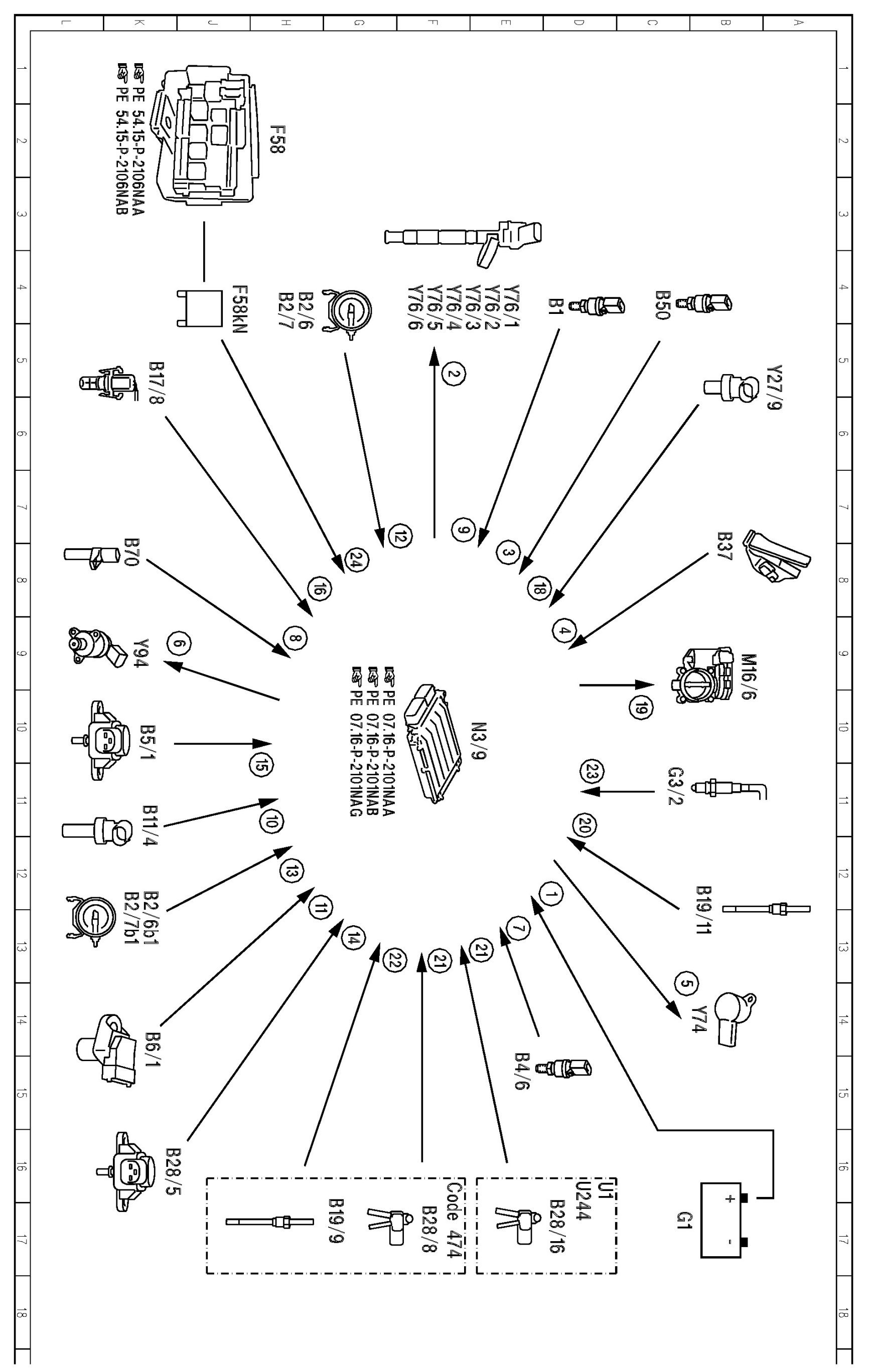

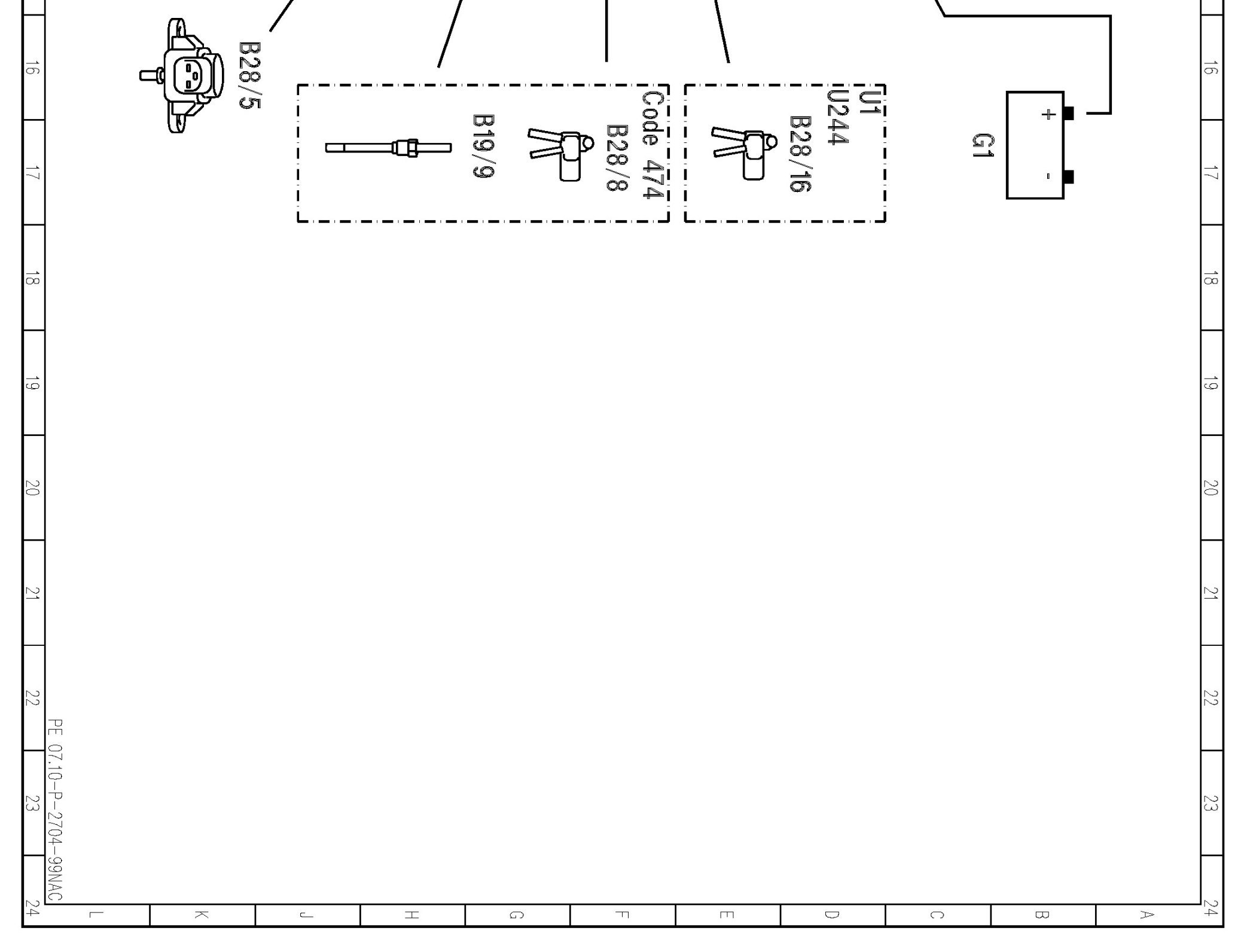

PE07.10-P-2704NAC Electrical Function Diagram For Injection Control

PE07.10-P-2704NAC Electrical Function Diagram For Injection Control
ENGINES 642.8 in MODEL 166






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
