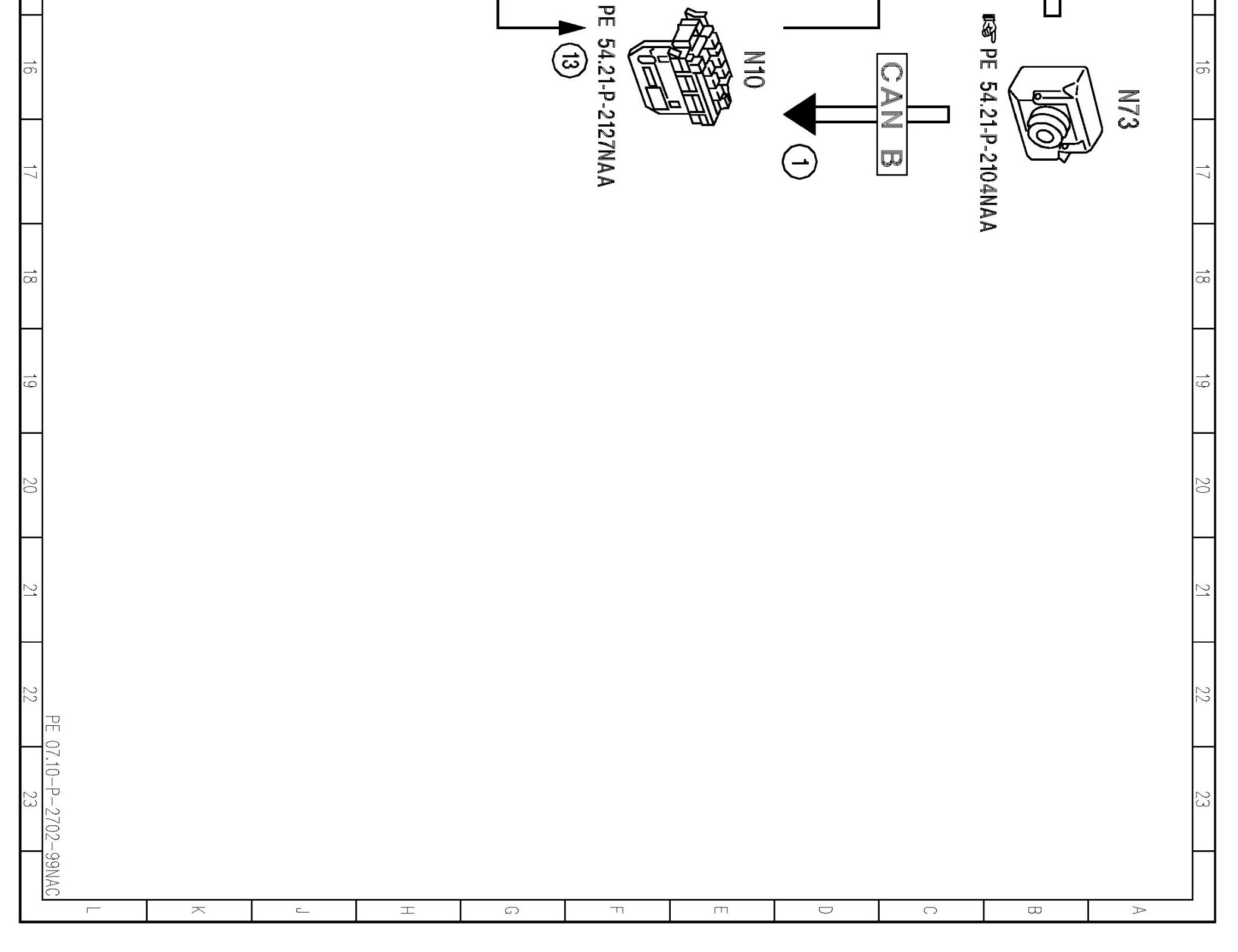

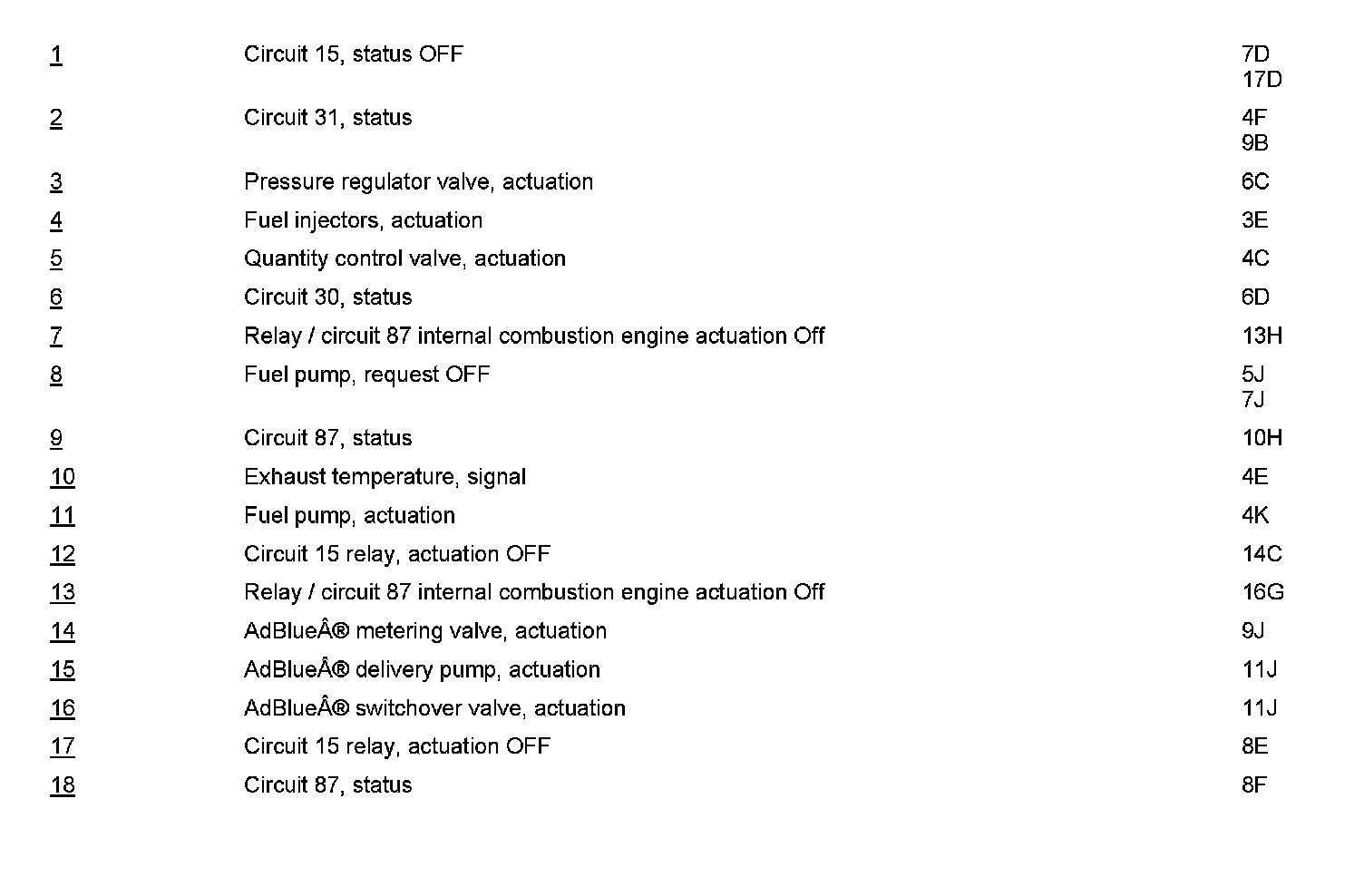

PE07.10-P-2702NAC Electrical Function Diagram For Ignition OFF

PE07.10-P-2702NAC Electrical Function Diagram For Ignition OFF
ENGINES 642.8 in MODEL 166

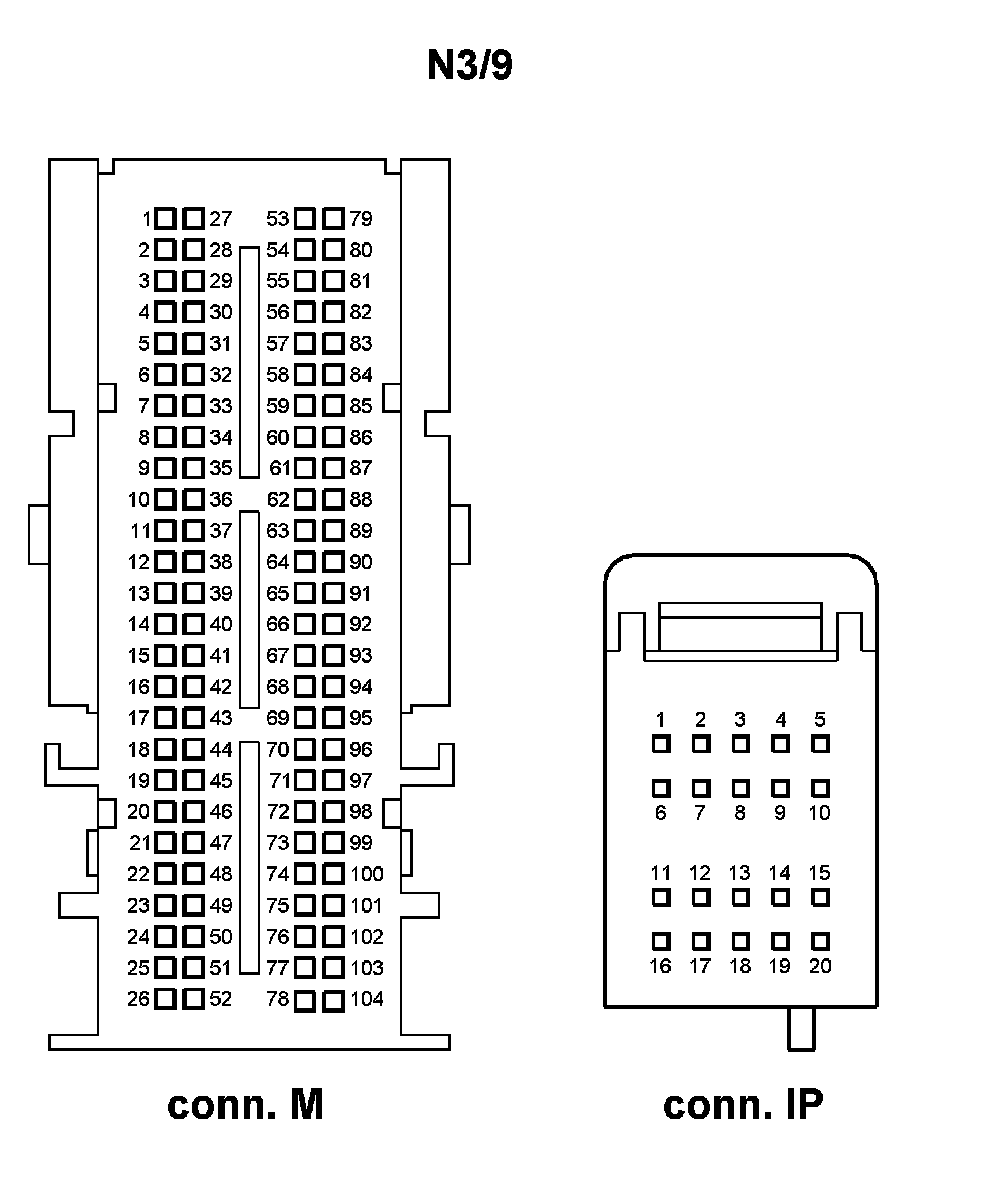

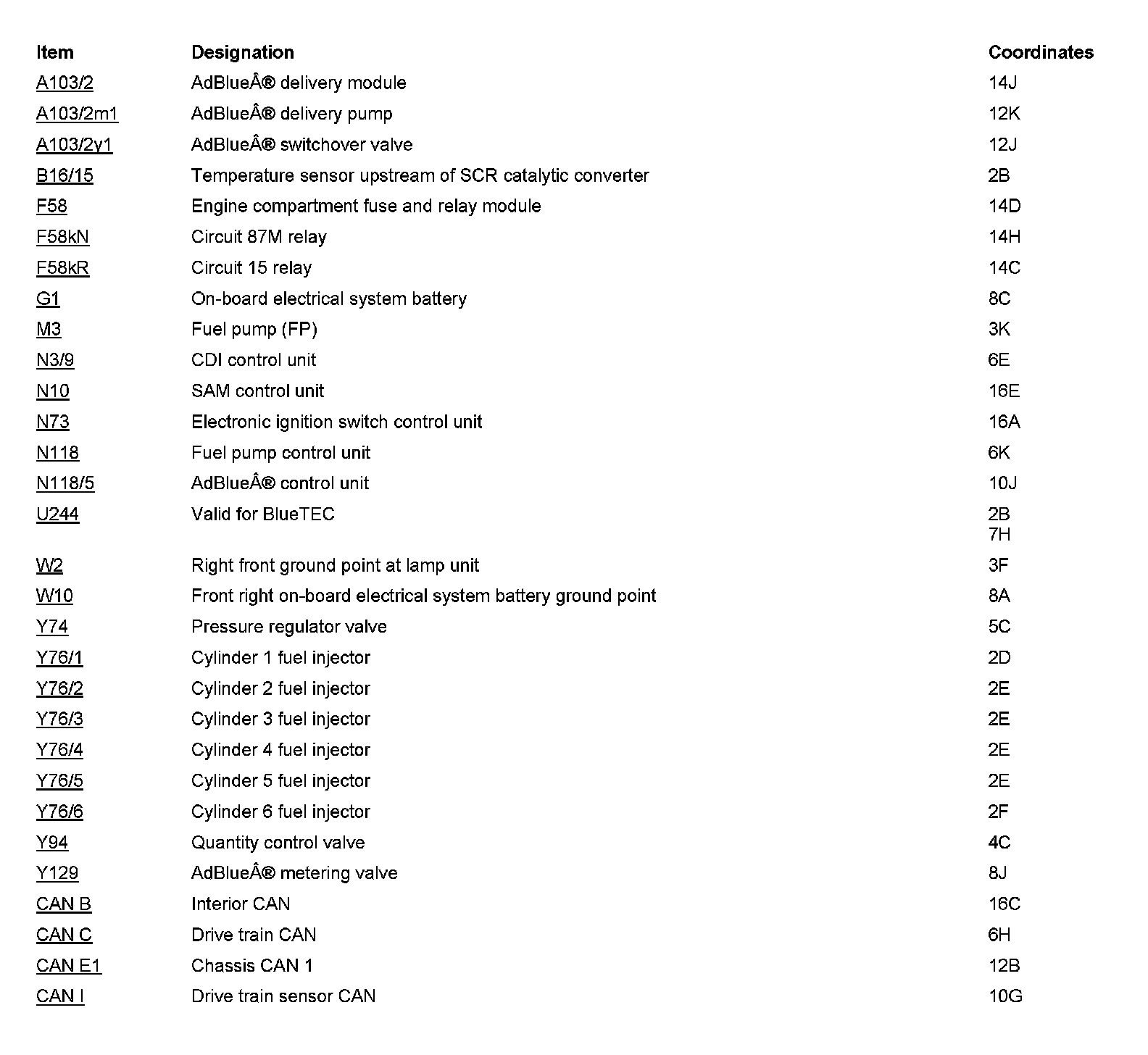

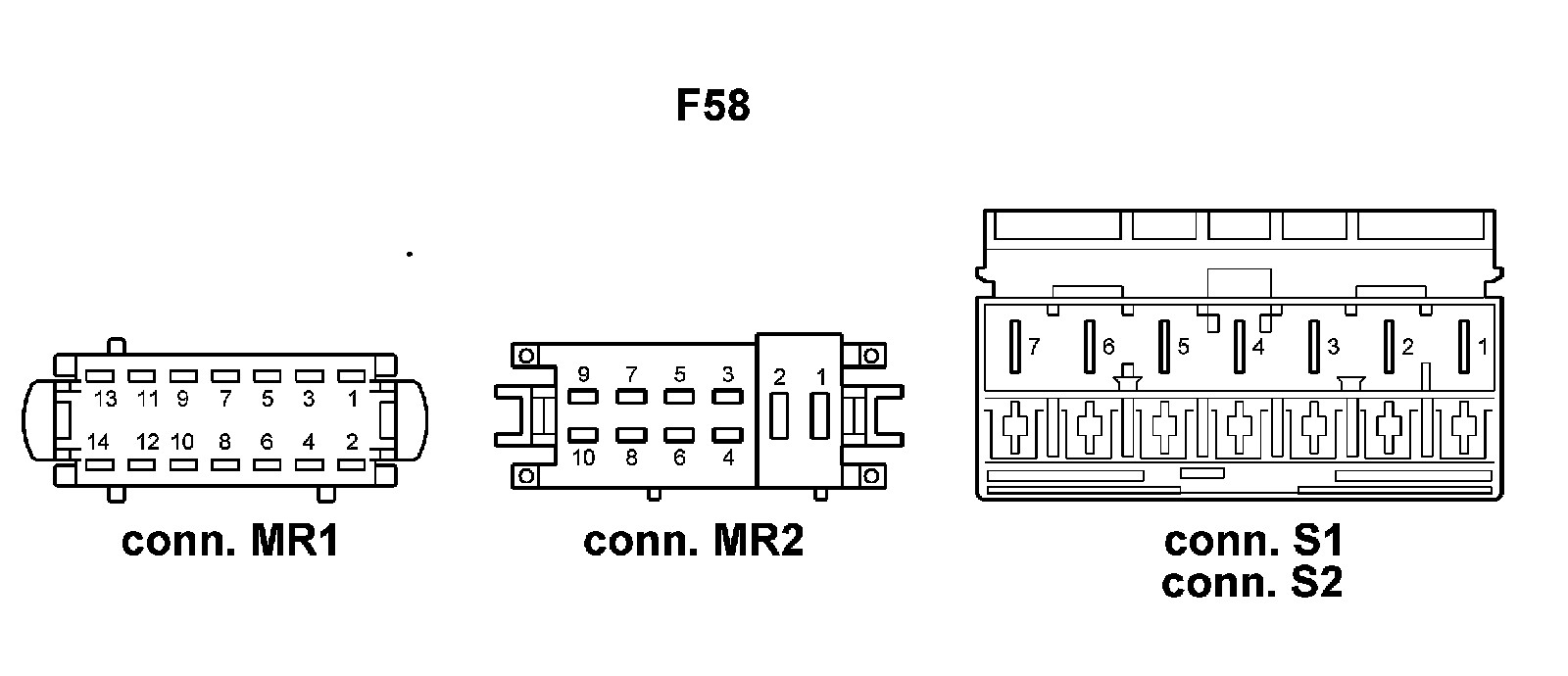

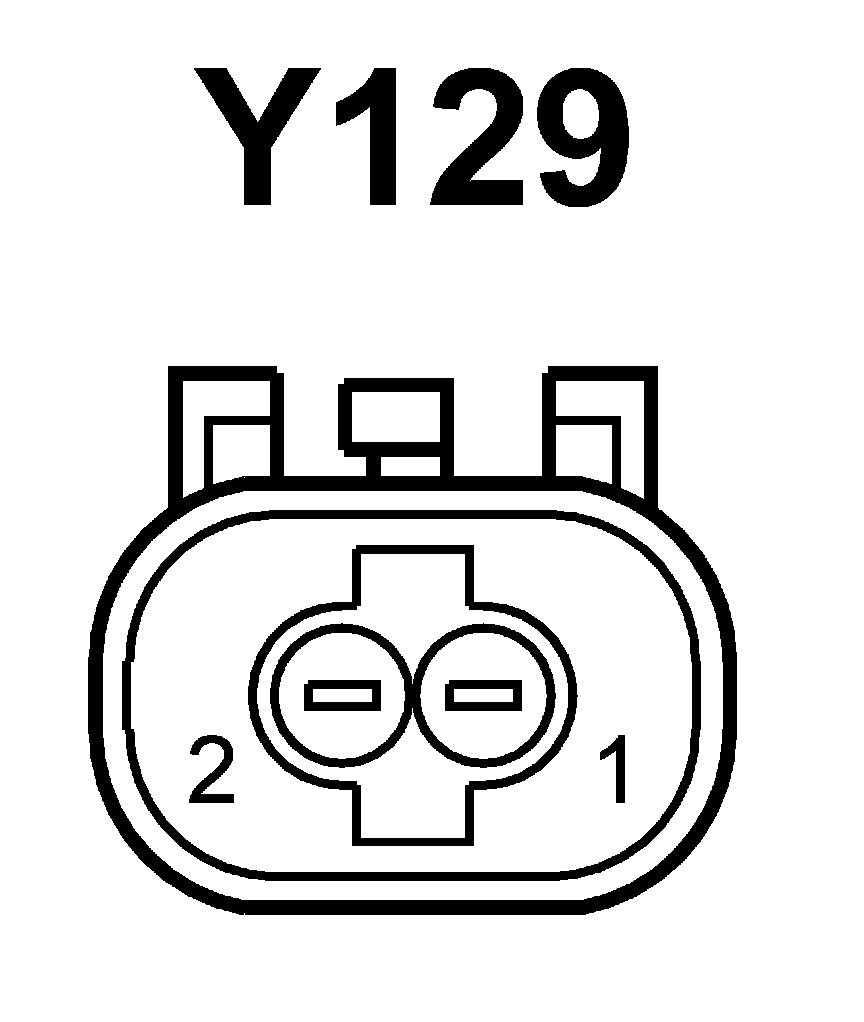

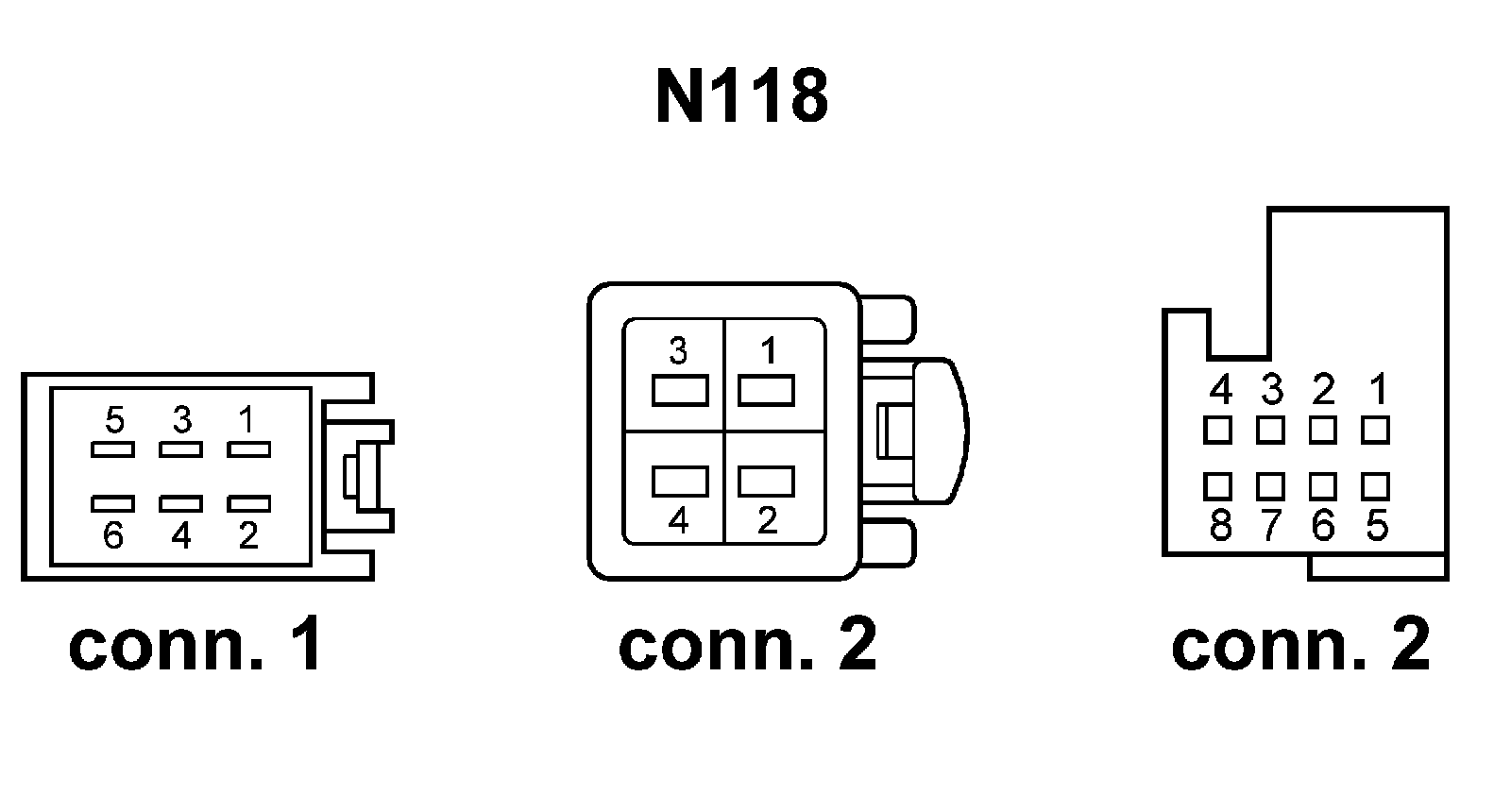

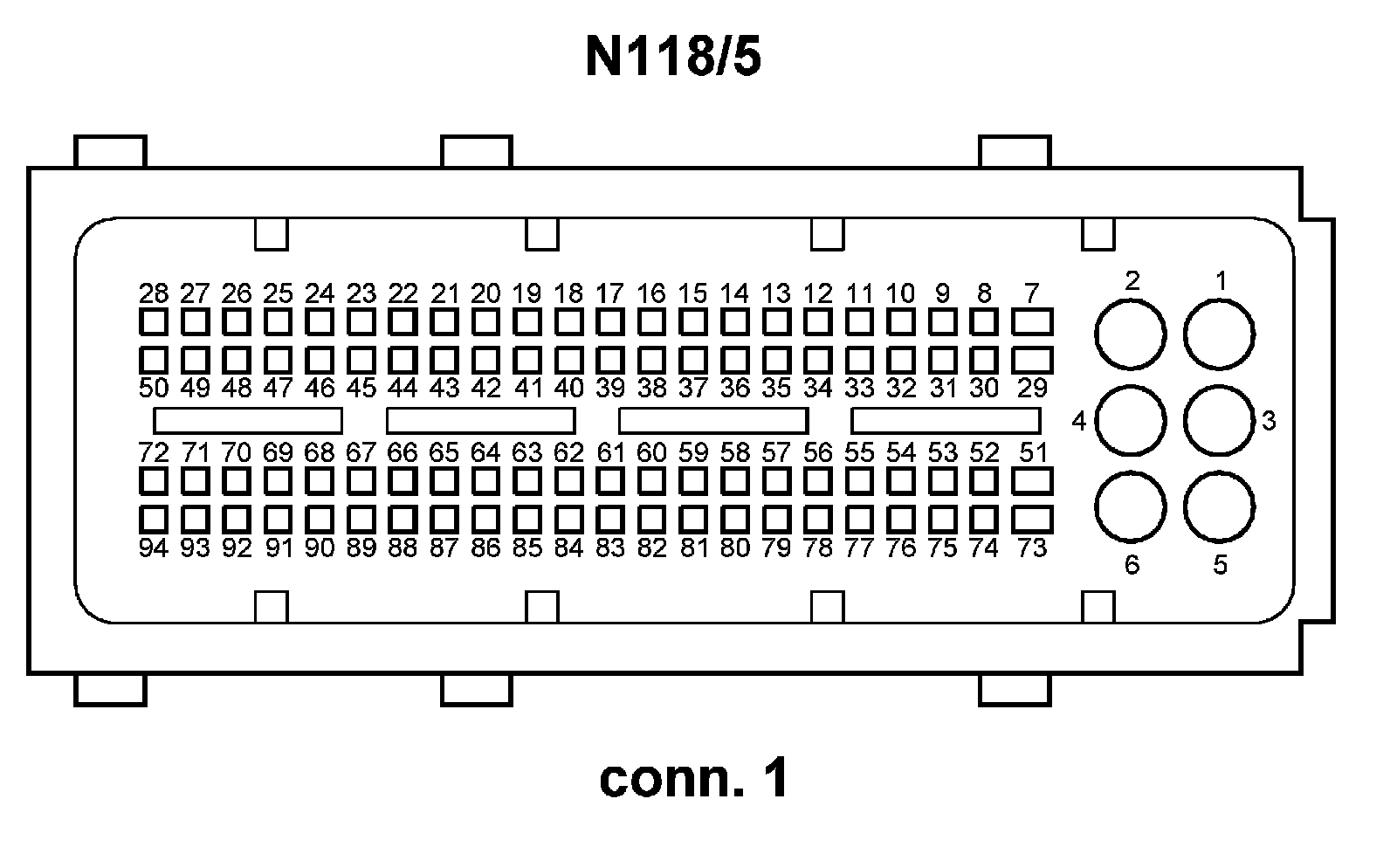

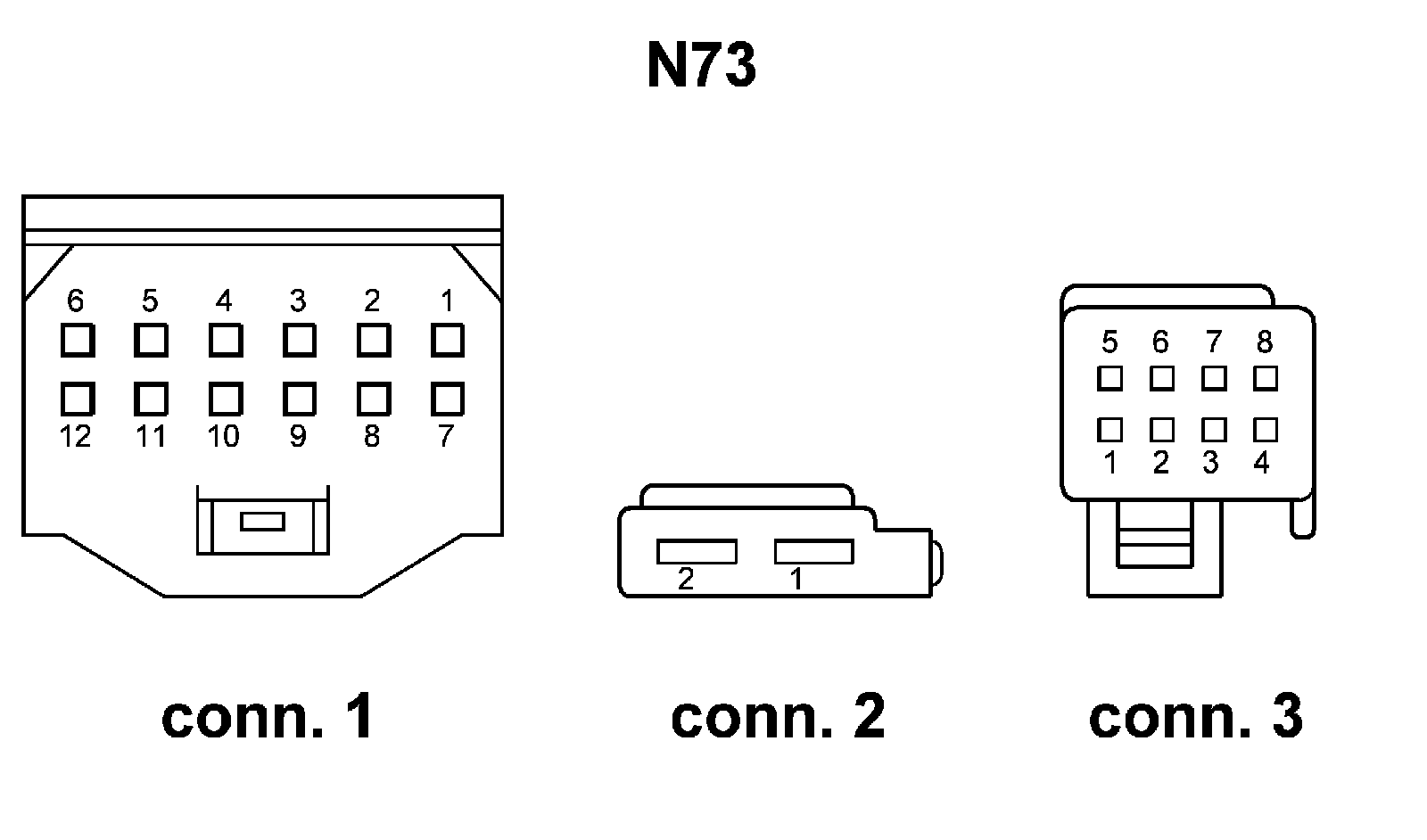

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
