Compressor/Pump Pulsation Damper: Service and Repair

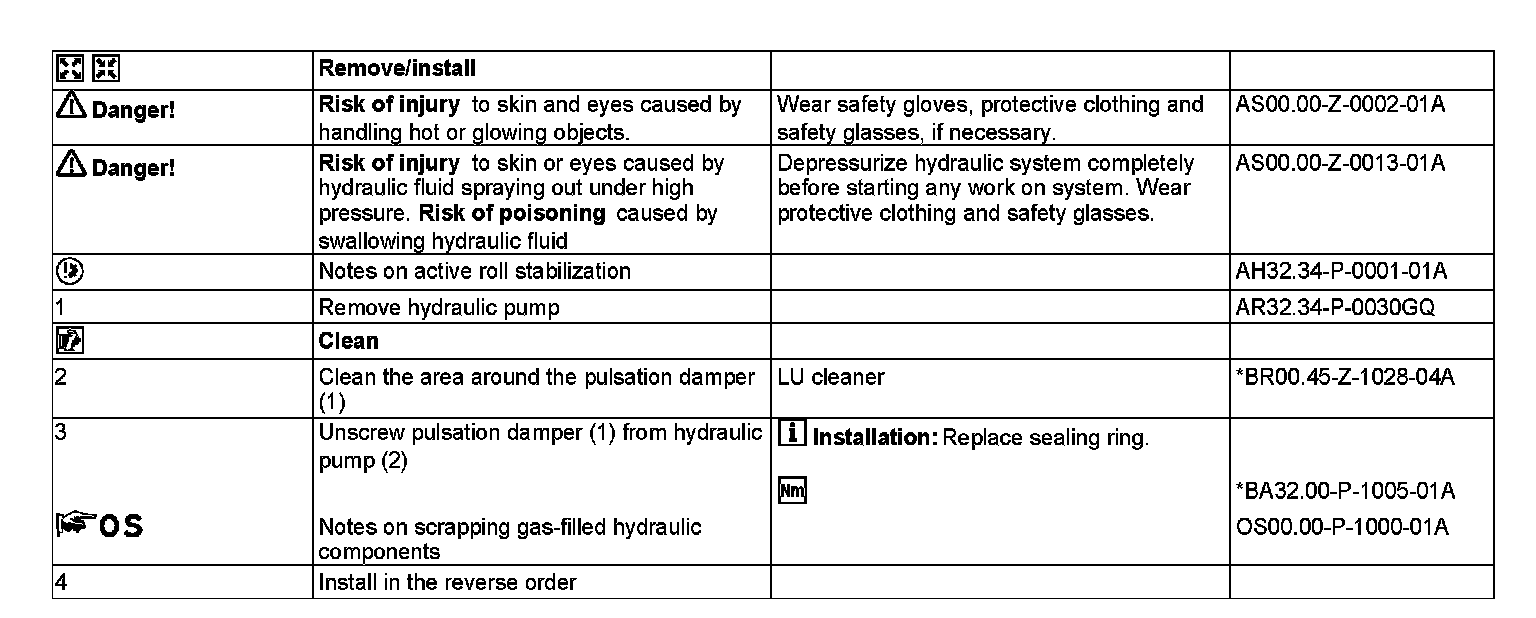

AR32.34-P-0013GQ Remove/Install Hydraulic Pump Pulsation Damper
MODEL 166 with ENGINE 276
- with CODE (468) ACTIVE CURVE SYSTEM

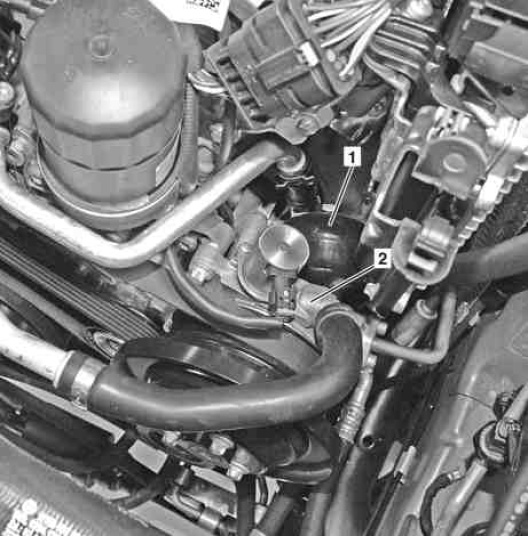

1 Pulsation damper
2 Hydraulic pump
AR32.34-P-0013GQ Remove/Install Hydraulic Pump Pulsation Damper
MODEL 166 with ENGINE 276
- with CODE (468) ACTIVE CURVE SYSTEM
1 Pulsation damper
2 Hydraulic pump
