Body - Sideview Mirror Locator/Ambient Lighting Inoperative

Exterior sideview mirror locator lighting / ambient illumination inoperative

Topic number LI88.70-P-053140

Version 1

Design group 88.70 Exterior mirrors

Date 04-10-2012

Validity W166 (166.057) as of VIN end no. A001036 up to VIN end no. A038456

Reason for change

Complaint:
Exterior sideview mirror locator lighting / ambient illumination inoperative.

Cause:
SCN coding in EZS (electronic ignition lock).

Remedy:
Perform SCN coding in EZS using XENTRY Diagnostics (XD).

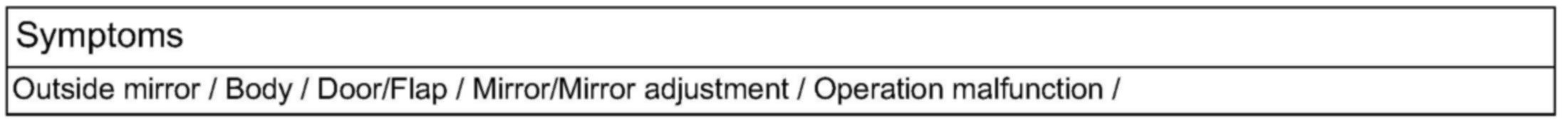

Symptoms

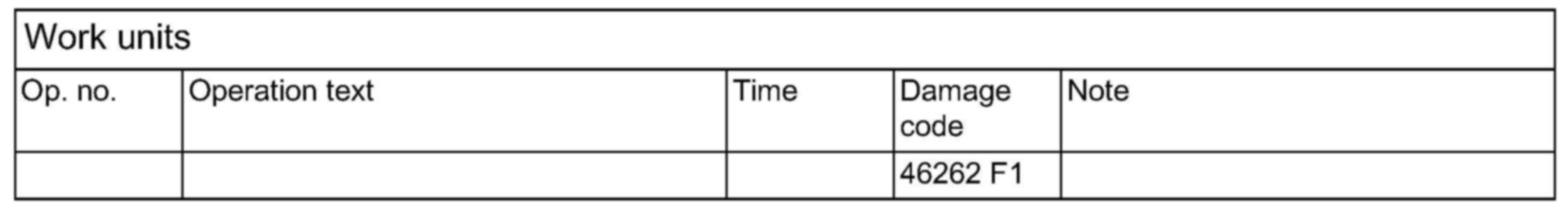

Work units

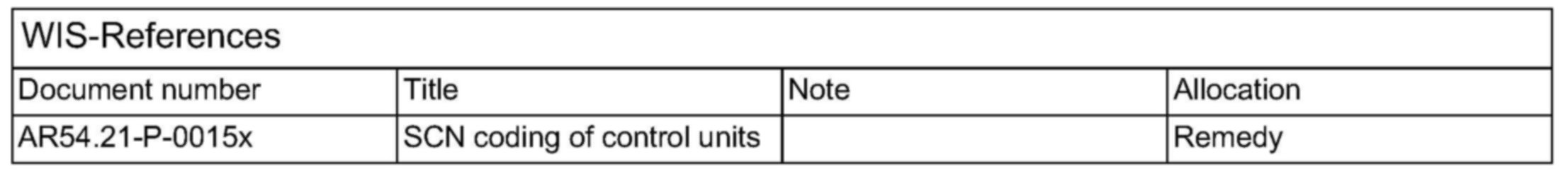

WIS-References
