Removal and Replacement

AR47.10-P-4100GQ Remove/Install Fuel Tank
MODEL 166 with ENGINE 276, 642, 651

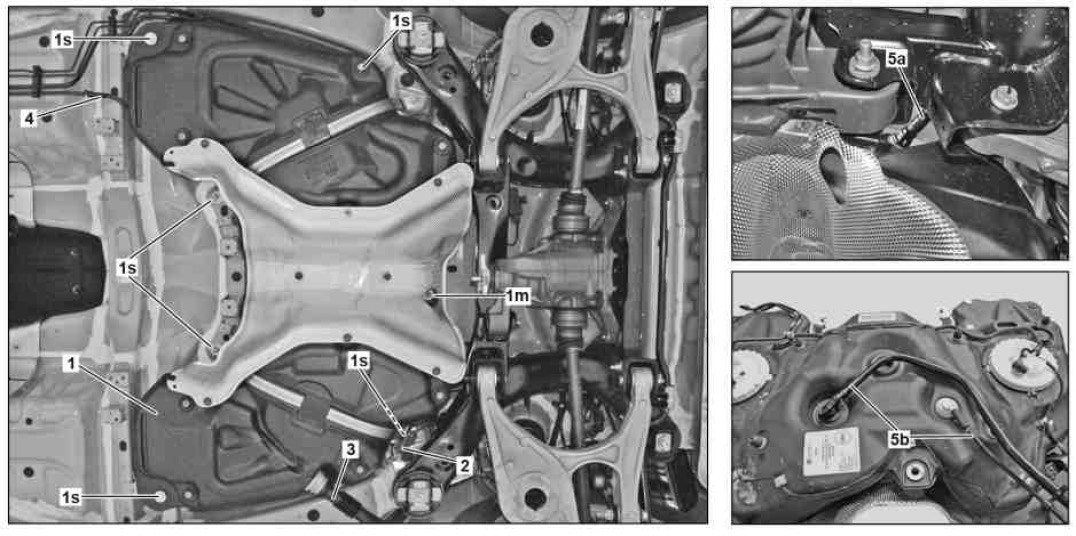

Shown on model 166.057

1 Fuel tank
1m Nut
1s Screw
2 Electrical connector
3 Filler neck
4 Fuel line
5a Cable
5b Cable





Shows model 166.057

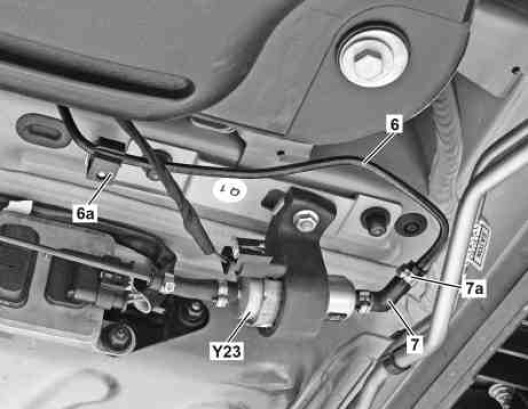

6 Cable
6a Bracket
7 Hose
7a CLIC clamp

Y23 Stationary heater fuel pump














129 589 00 91 00
Set of stop plugs





164 589 01 07 00
Claw-type wrench
