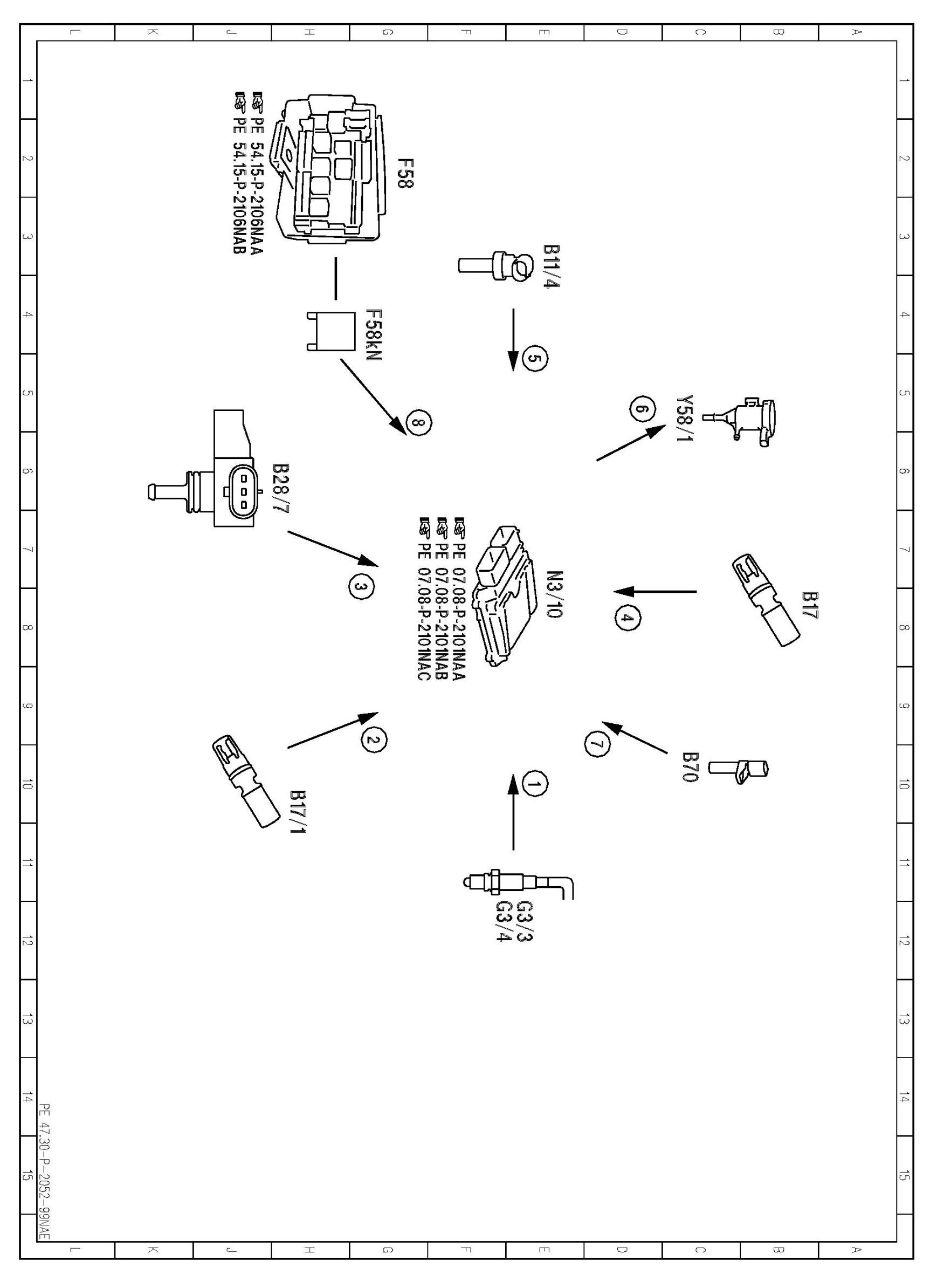

PE47.30-P-2052NAE Electrical Function Schematic For Purge Control

PE47.30-P-2052NAE Electrical Function Schematic For Purge Control
MODEL 166 with ENGINE 276

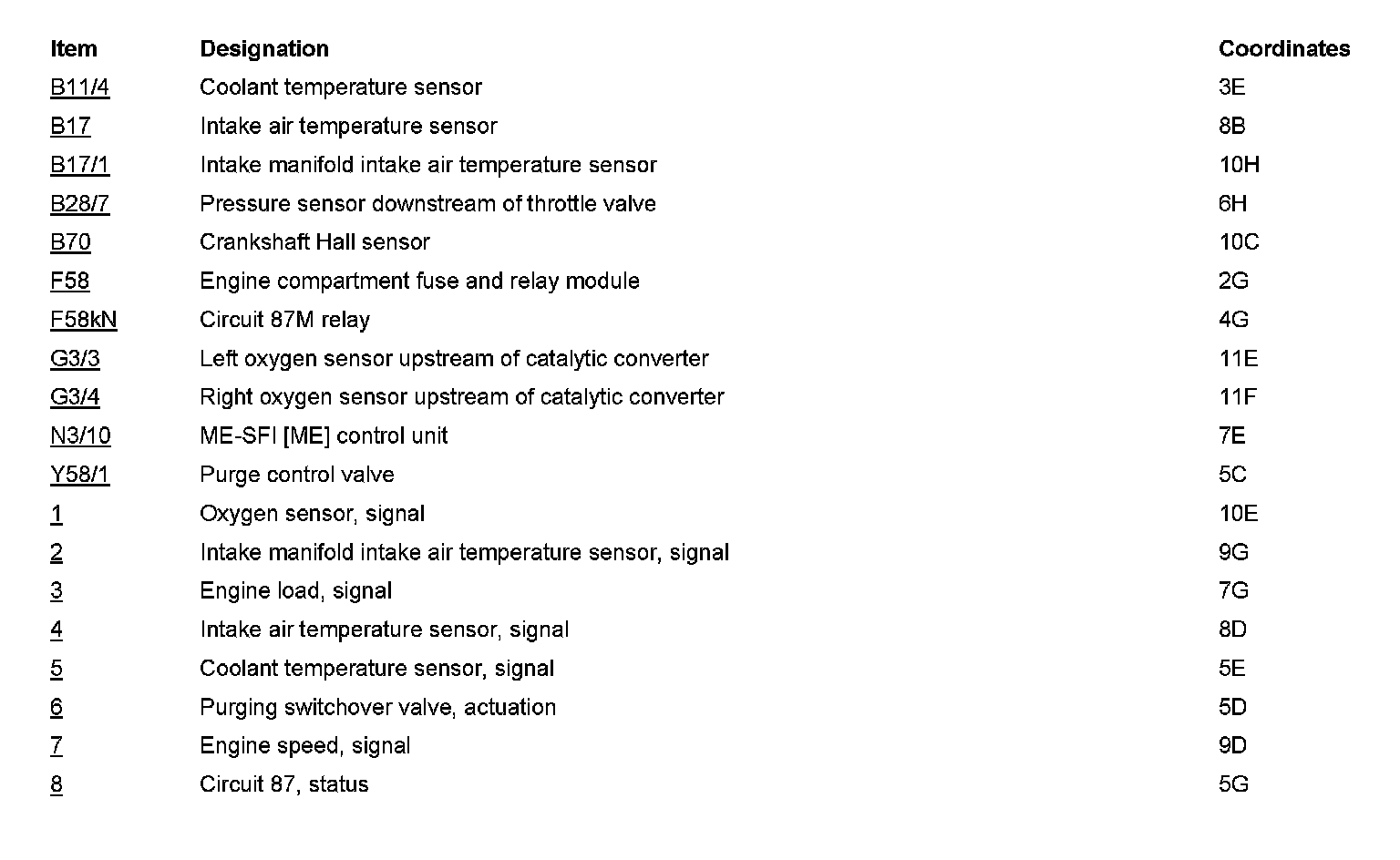

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
