PE07.08-P-2101NAB Gasoline Direct Injection System Control Unit

PE07.08-P-2101NAB Gasoline Direct Injection System Control Unit
ENGINES 276.9 in MODEL 166

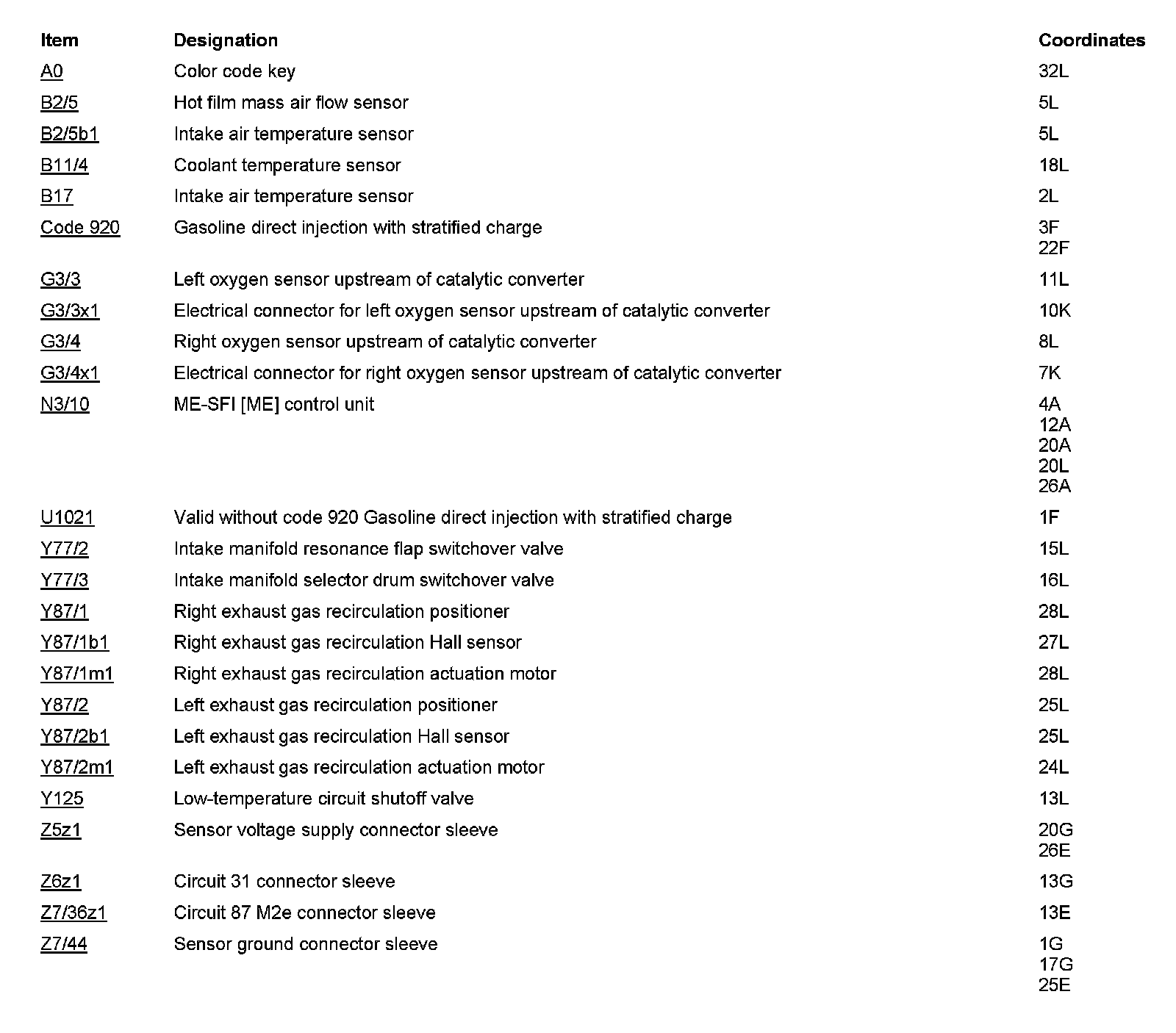

- Control Unit N3/10, Engine Connector, Sheet 2














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
