Oil Pan: Service and Repair

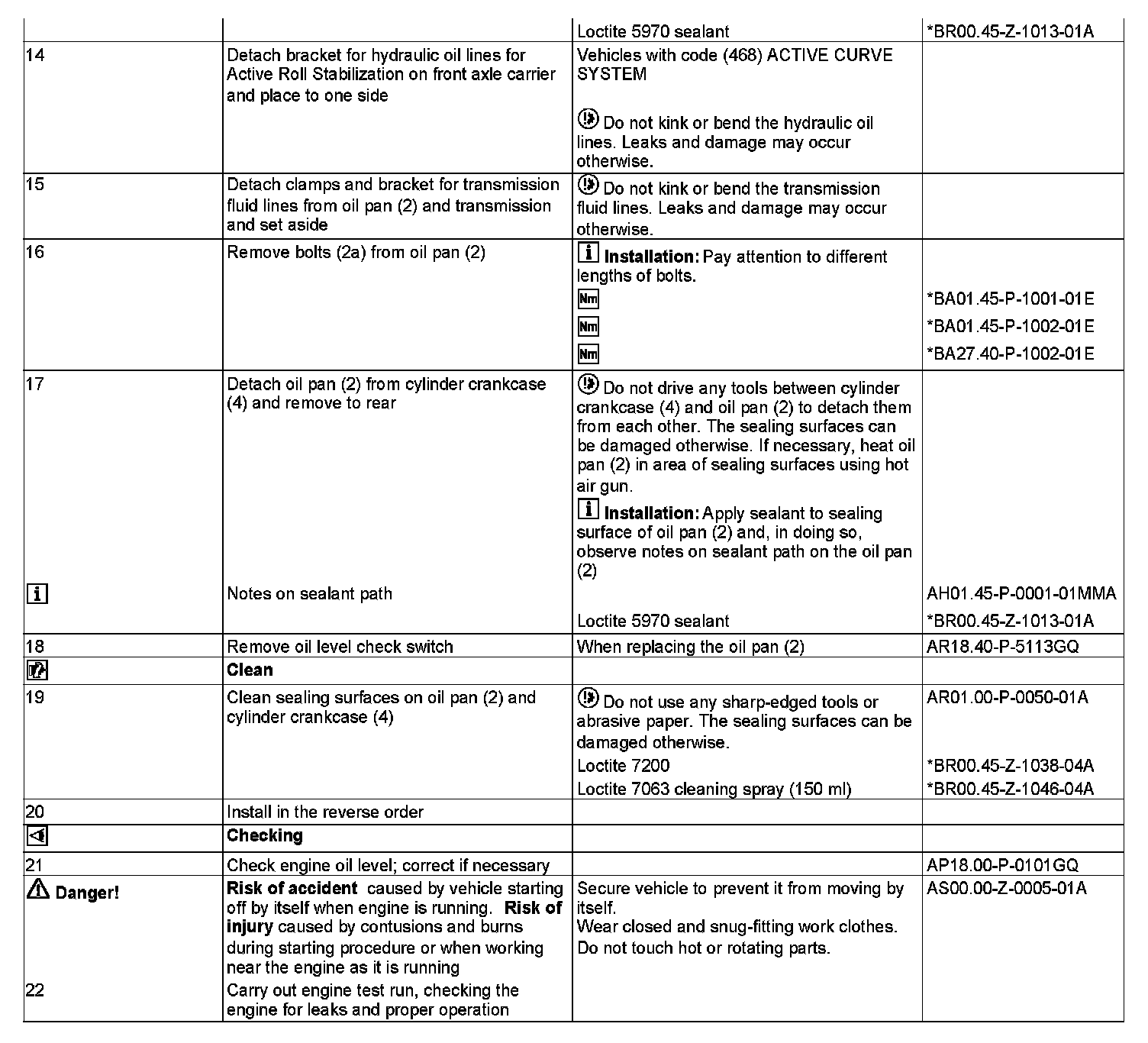

AR01.45-P-7500GQ Remove/Install Oil Pan
ENGINES 276 in MODEL 166.0





1 Oil pan bottom section
1a Screw
2 Oil pan
2a Bolt
4 Cylinder crankcase
