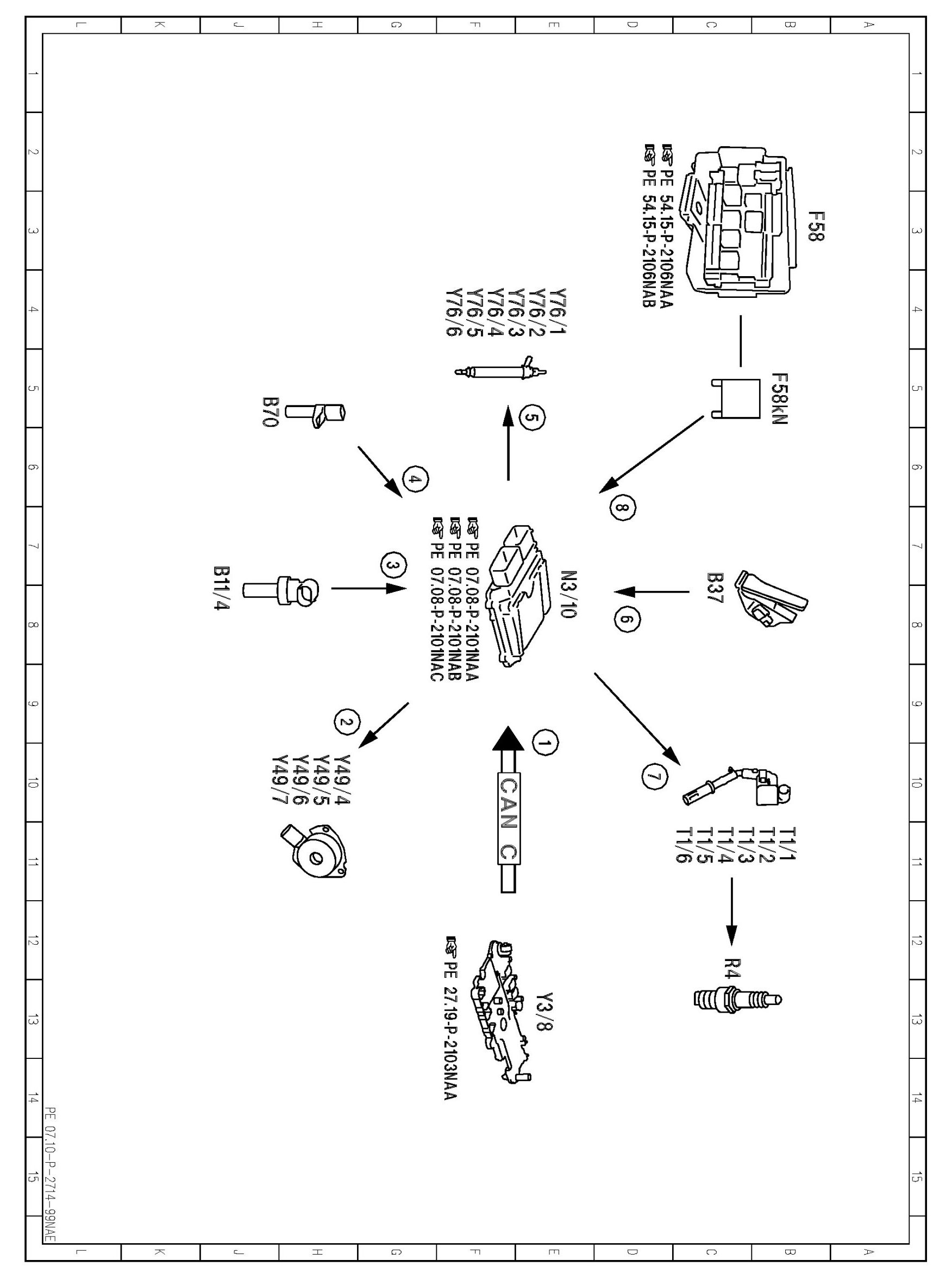

PE07.10-P-2714NAE Electrical Function Schematic For Deceleration Fuel Shutoff

PE07.10-P-2714NAE Electrical Function Schematic For Deceleration Fuel Shutoff
ENGINES 276 in MODEL 166

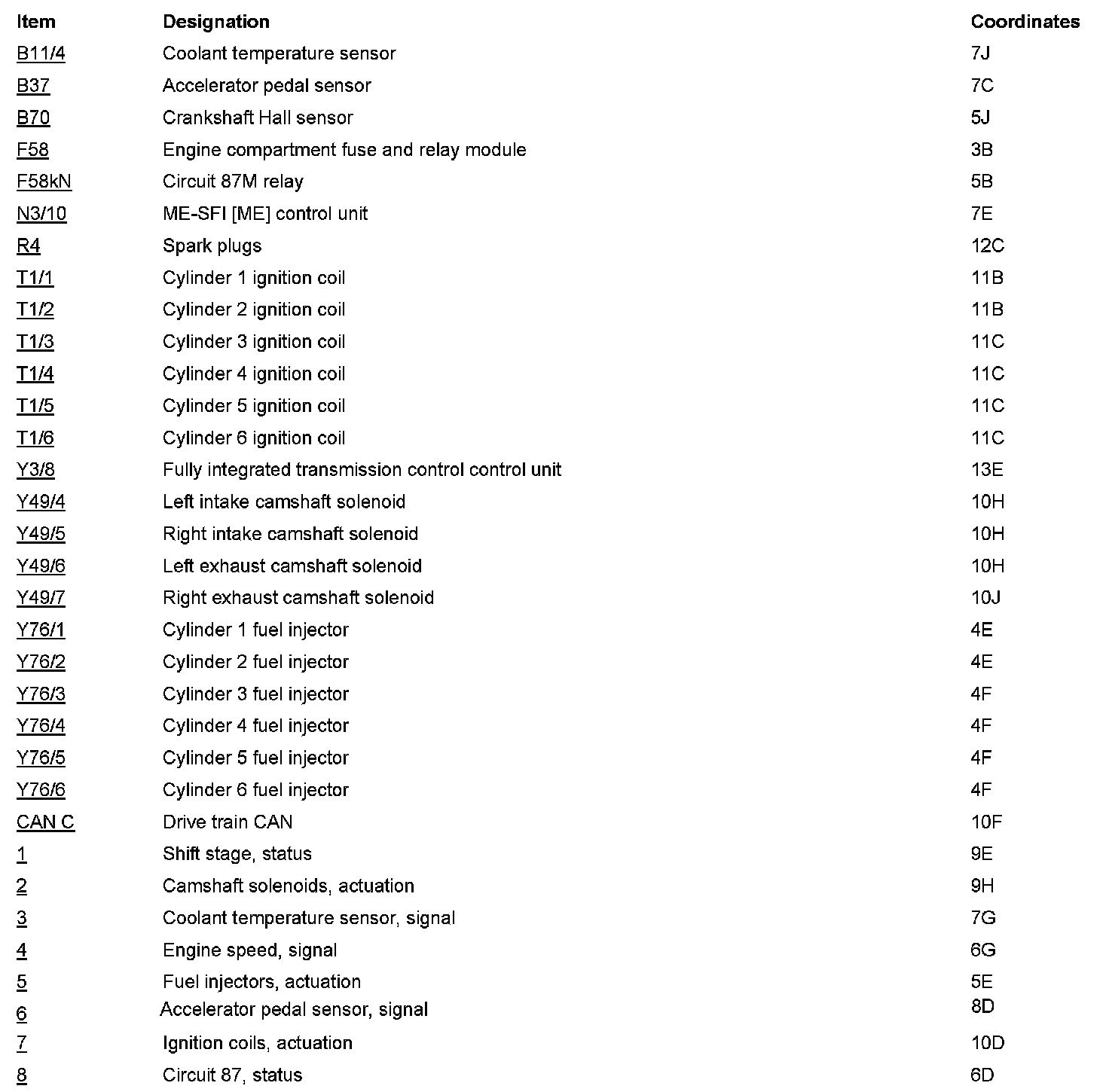

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
